AW-UR100GJ
Panasonic
€ 13.347,80 VAT excl.

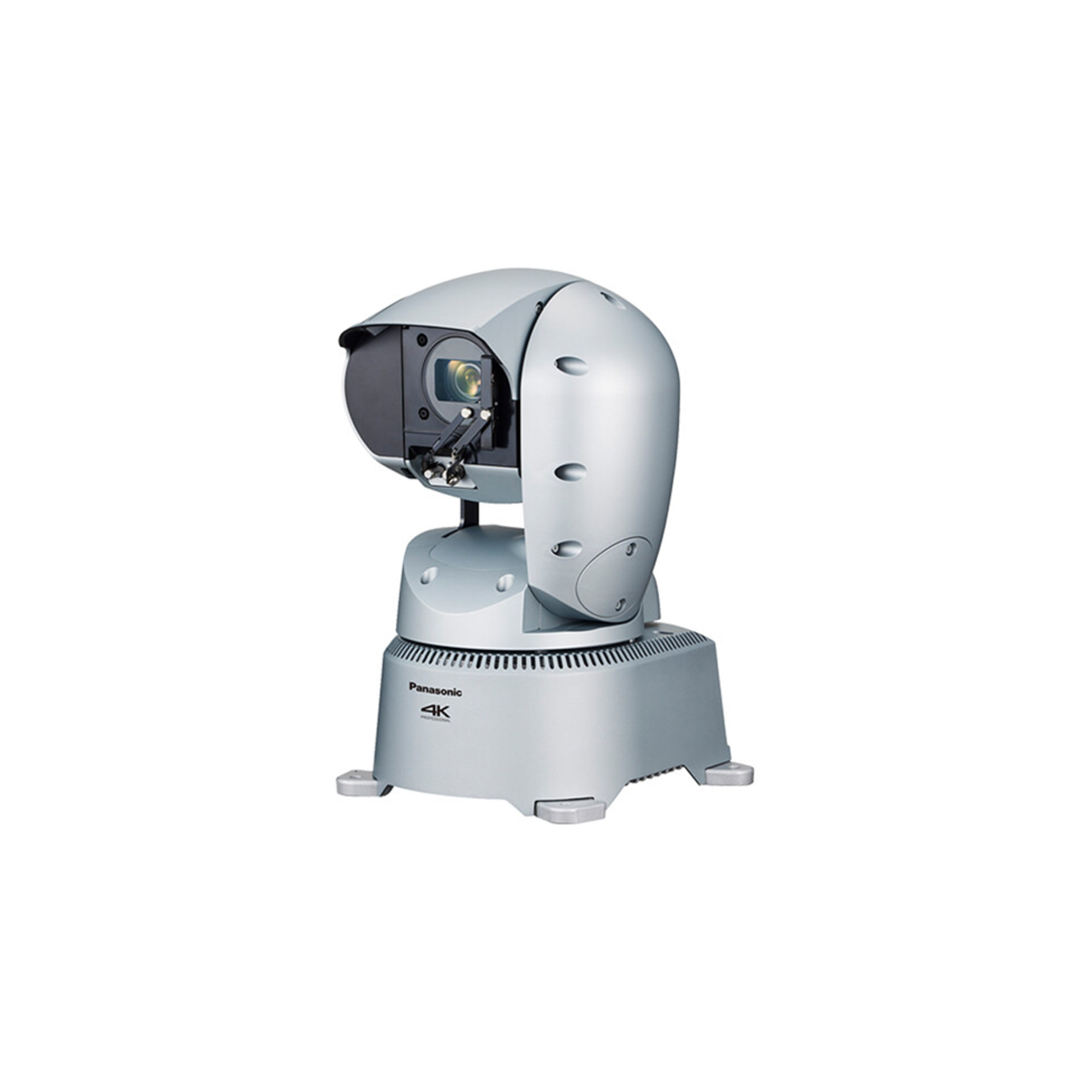

Add an outdoor, weather-resistant PTZ camera to your security, event, or broadcast production with the AW-UR100 UHD 4K Outdoor PTZ Camera from Panasonic.
The AW-UR100 uses a 1/2.5" UHD 4K MOS sensor to output clear video up to UHD 4K60. The IP65-rated camera stands up to the elements with its salt-resistant silver finish and built-in wiper, heater, and defroster.
Three stabilization functions help keep images captured with the 24x optical zoom lens smooth, even when mounted in windy environments.
It also features a 10x digital zoom to extend your range even further.
Video is output via 3G-SDI, 12G-SDI, and SFP+ optical fiber connections.
The camera supports IP protocols like NDI, SRT, and RTMP.
A genlock input supports black burst sync and tri-level synchronization, while a D-Sub 9-pin connector offers an audio input.
Power the AW-UR100 using PoE++ or via a separately available power supply.
Control can be achieved via IP or RS-422 connections or with the integration of separately available remote camera controller units.
° 24x Optical Zoom, Wide Horizontal Angle of View
The camera's wide-angle lens features a horizontal angle of view of 74.1° at its widest and 3.3° at the tele end.
The 24x optical zoom further expands the shooting range of the AW-UR100.
° Three Image Stabilization Modes
Three types of image stabilization - Optical Image Stabilization (OIS), Electronic Image Stabilization(EIS), and Dynamic Image Stabilizing System (DISS) - ensure image capture remains stable regardless of environmental factors.
Easily mount your camera on a high pole and resist wind velocities up to 15 m/sec DISS facilitates pan/tilt function and has improved responsiveness to minimize trembling and maintain smooth rotation.
The OIS and EIS in combination provide two-step vibration correction for a stable image regardless of the installation environment.
° Durability in Harsh Environments
The paint and resin used in the AW-UR100's construction are salt, corrosion, and water resistant, as well as unaffected by ultraviolet rays.
It has an IP65 rating and comes with an integrated wiper, heater, and defroster for environments as cold as 5°F.
° Robust Video Connections
The camera comes equipped with video transmission IFs that can support baseband transmissions of 3G-SDI, 12G-SDI, and SFP+ fiber.
Major IP transmissions of NDI, SRT, and RTMP are also supported for integrations with existing system configurations.
° Built-In Cropping Function
Crop a portion of UHD 4K video using three cropping positions and 10x digital zoom.
Access these parameters using a separately available remote camera controller or a PC and the PTZ control center software.
° FreeD Compatibility
Connect the AW-UR100 with an AR/VR system thanks to its FreeD-compliant command output.
Easily construct a digital environment without an encoder by utilizing the tracking data of the camera in conjunction with synchronization signals.
MON-CINE-24
-2.5%M-1073H
-2.5%16-2701 OLED 27
-2.5%FS173-S4K - SEETEC
-2.5%MON-VISION-17
-2.5%BM-215-NDI
-2.5%P173-9HSD-CO - SEETEC
-2.5%P173-9HSD - SEETEC
-2.5%BM-U175
-2.5%BM-245-NDI
-2.5%SC173-HSD-56 - SEETEC
-2.5%MON-VISION-24
-2.5%S-1243FS
-2.5%LMD-A240
-2.5%S-1223FS
-2.5%ATEM156S - SEETEC
-2.5%ATEM156S-CO
-2.5%S-1173FS
-2.5%MON-OLED-22
-2.5%MON-CINE-13
-2.5%BM-U245HDR
-2.5%ATEM173S - SEETEC
-2.5%Sumo19 SE
16-1801
-2.5%CONVBDCSDIHDMI12G
HI5-FIBER-R1
VC-100UHD
-2.5%CONVCMICHS03GWPSU HDMISDI
CONVMBHS24K6G
DAC-70
-2.5%VC-1-SH
-2.5%HI5-12G-R-ST
BD4KQUAD
-2.5%N50
CONVMOF12G
CONVCMICSH03GWPSU SDIHDMI
ROI-SDI-R0
MINI SC1112
HI5-PLUS-R0
N3-S
BDFLEXDEC
12GM-R0
CONVMBSH4K6G
HI5-12G-R0
CONVBDCSDIHDMI12GP
OG-HI5-4K-PLUS
HI5-12G-TR-R0
BD4KHDMI
-2.5%HD5DA-R0
CONVMUDCSTDHD
CONVCMICSH12G
VC-1-SC
-2.5%VC-1-DL
-2.5%N5
FiDO-R-12G
HI5-12G-R-R0
BD4KSDI
-2.5%N30
CONVMAAS2
DAC-45
CONVCMICSH12GWPSU
Prism Flex 875 Decoder
UDC-R0
IPT-10G2-SDI-R0
ATEM Television Studio HD8 ISO
-2.5%ATEM SDI Pro ISO
ATEM 2ME Production Studio 4K
-2.5%V-1HD
-2.5%AV-UHS500EJ
-2.5%ATEM 1 ME Constellation HD
Tricaster TC1 Pro
ATEM Production Studio 4K
-2.5%ATEM 2 ME Advanced Panel 40
-2.5%ATEM SDI Extreme ISO
ATEM 2 ME Constellation HD
-2.5%ATEM Television Studio HD8
-2.5%SE-500HD
-2.5%V-1HD+
HVS-110DI-A
V-60HD
-2.5%ATEM 1 ME Advanced Panel 10
-2.5%ATEM Constellation 8K
-2.5%ATEM 2 ME Advanced Panel 30
-2.5%VR-120HD
-2.5%ATEM SDI
V-160HD
-2.5%ATEM 4 ME Constellation HD
-2.5%ATEM 2 ME Advanced Panel 20
-2.5%ATEM 4 ME Constellation 4K
-2.5%ATEM Television Studio 4K8
-2.5%HyperDeck Studio HD Plus
HyperDeck Shuttle HD
HyperDeck Studio 4K Pro
CUBE R1
HyperDeck Studio HD Mini
HyperDeck Extreme 4K HDR
-2.5%HyperDeck Studio HD Pro
Shogun Studio 2
HDR-80
-2.5%HyperDeck Extreme 8K HDR
-2.5%TriCaster TC1
P-20HD
-2.5%E1-S
TriCaster TC1 2-Stripe Led CS
G1-S
TriCaster TC1 SP
TriCaster TC1 4-Stripe Led CS
Video Assist 5 3G
Shogun Connect
Video Assist 7 12G HDR
Video Assist 5 12G HDR
Video Assist 7 3G
ST500 Wall Mount B
AW-RP150GJ
AW-RP60GJ
AW-SF100G
CONVMSDIDA4K
HI5-4K-PLUS
U-TAP-SDI-R0
IO-4K-PLUS-R0
USB Capture SDI 4K Plus
KPTZ721100 PTZ Tripod
-2.5%KPTZ72175 PTZ Tripod
-2.5%SC005 Dr. Bag - 5
Imaging
Image Sensor: 1/2.5"-Type CMOS
Sensor Resolution:
- Actual: 8.49 Megapixel (3864 x 2196)
- Effective: 8.29 Megapixel
Image Stabilization
Digital
Optical in Integrated Lens
Lens
Focal Length: 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
Optical Zoom Ratio: 24x
Max Digital Zoom: 10x
Field of View:
- Horizontal: 74.1 to 3.3°
- Vertical: 46 to 1.9°
- Diagonal: 81.8 to 3.8°
Maximum Aperture: f/1.8 to 4
Video Capture
External Recording Modes:
° SDI/BNC / Optical Fiber
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 24.00/25/29.97/50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording: 2-Channel AAC Audio
Broadcast Output: NTSC/PAL
IP Streaming:
° NDI:
3840 x 2160
1920 x 1080
1280 x 720
° NDI|HX2:
1920 x 1080
1280 x 720
Interface
Video I/O:
- 1 x BNC (12G-SDI) Output
- 1 x BNC (3G-SDI) Output
Audio I/O: 1 x D-Sub 9-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O:
- 1 x BNC (Genlock) Input
- 1 x RJ45 (RS-422)
- 1 x RJ45 (LAN)
Expansion Slots: 1 x SFP+ Slot
Power
PoE Support: PoE++ 802.3bt
Power I/O: 1 x XLR 4-Pin (10.8 to 24VDC) Input
Power Consumption: PoE: 42 to 57 VDC
Environmental
Operating Temperature: 5 to 113°F / -15 to 45°C
Operating Humidity: 10 to 100%
Storage Humidity: 10 to 95% (Non-Condensing)
General
Environmental Protection: Advertised as Outdoor Use/Water Resistant/Weather Resistant (Test Methodology Not Supplied IP65)
Mass: Approx. 9.0 kg (19.84 lb)
Dimensions: 258.0 mm x 367.0 mm x 392.0 mm (10.16 inches x 14.45 inches x 15.43inches) (including protrusions and cable cover)
Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
