CONVMBSH4K6G

Name: CONVMBSH4K6G
Brand: Blackmagic
SKU: CONVMBSH4K6G
Price: 457841 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716005172

Blackmagic Design SDI to HDMI 6G Mini Converter. Blackmagic CONVMBSH4K6G Mini Converter SDI to HDMI 6G

go to the technical sheet

₦ 457,841.00

₦ 425,899.00 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

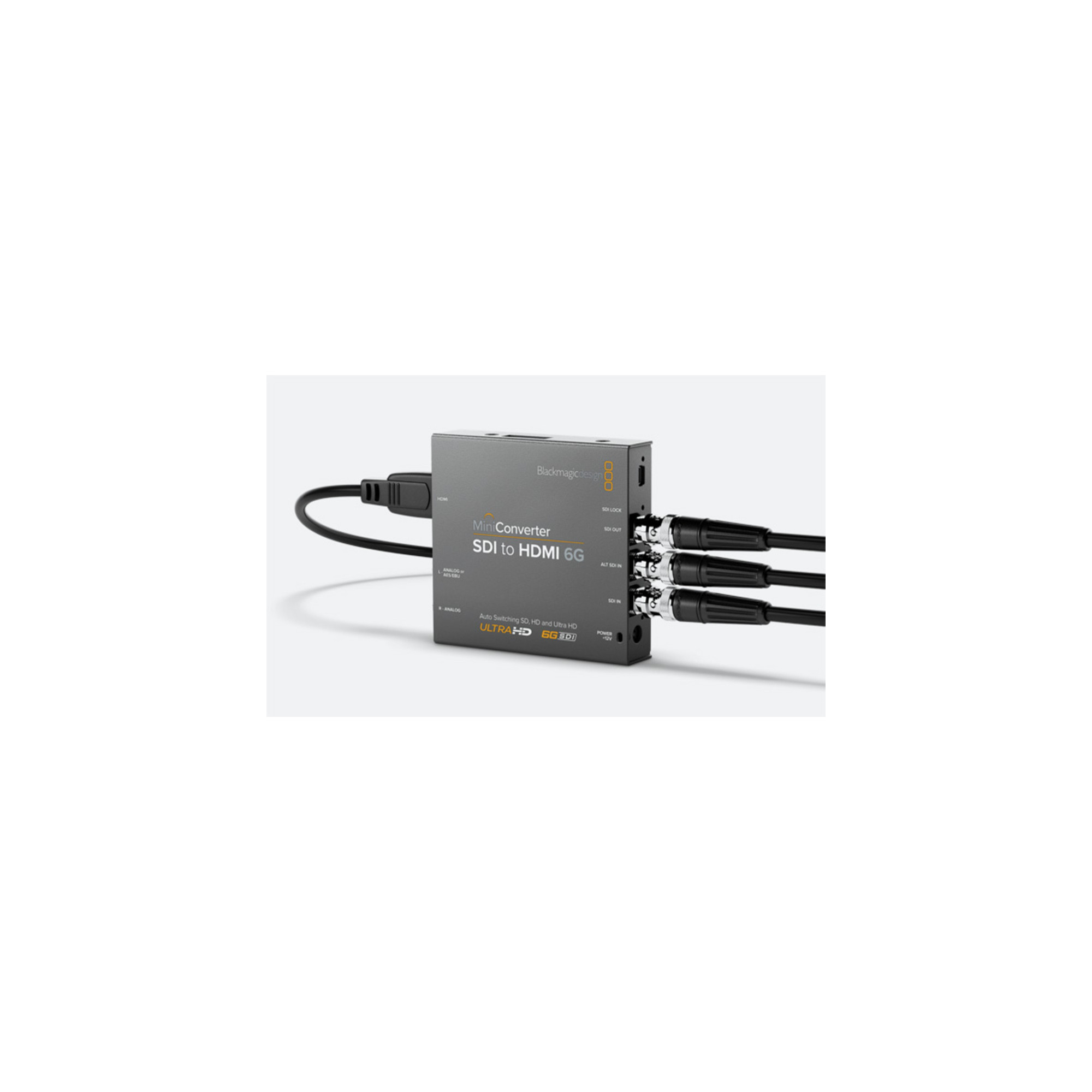

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.

The device is powered by an included 12V power supply and includes international socket adapters.

° 2 x 4K SDI Input
° 1 x HDMI Type A and 1 x SDI Output
° Supports SD, HD, UHD 4K & DCI 4K Signals
° Automatic Input Signal Detection
° 24-Bit, 48 kHz Audio
° Analog & AES-EBU Digital Audio Outputs
° De-Embeds Audio from SDI
° Settings via Mini Switches or Software
° USB 2.0 Port for Firmware Updates
° 12V Universal Power Supply Included
° 4:2:2 Sampling and color precision
° HD scaler and SD down-conversion
° 24-bit, 48 kHz audio sampling
° Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
° Down-conversion for monitoring Ultra HD on HD monitors
° Built-in 3D LUTs
° HDMI instant lock for instant video display when an SDI input is connected

Power Supply & Chargers Cables & Connectors

Blackmagic

PSUPPLY-INT12V12W

₦ 80,624.00 VAT included

Available in 11 days

ON-AIR

PT-M to BMD MINI 12V - ON-AIR

₦ 133.00 VAT included

Available in 15 days

Connections
SDI Video Input: 1 x SD, HD or 3G-SDI
SDI Video Output: Automatically matches SD, HD or 3G-SDI inputs
SDI Redundant Input: Automatically takes over if the main SDI signal drops
Multi-Frame Rate Support: Automatically detects SD, HD and 3G-SDI
Updates and Setup: USB
Reclocking: Yes

Mini Converter SDI to HDMI Compatible Standards
Compatible SD Formats
&emsp, 525i59.94 NTSC, 625i50 PAL
Compatible HD Formats
&emsp, 720p50, 720p59.94, 720p60
&emsp, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
&emsp, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
&emsp, 1080i50, 1080i59.94, 1080i60
Compatible 2K formats
&emsp, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
&emsp, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

SDI Standard Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M
SDI Video Rates: SDI connections automatically switch between SD and HD Level B 3G-SDI
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sampling rate of 48kHz and 24 bit
SDI Color Accuracy: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatic detection of SD, HD and 3G-SDI

HDMI Formats compatible
&emsp, 525i59.94 NTSC, 625i50 PAL
&emsp, 720p50, 720p59.94, 720p60
&emsp, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
&emsp, 1080i50, 1080i59.94, 1080i60
HDMI Color Space: YUV and RGB
HDMI Color Accuracy: 4:2:2 and 4:4:4

Control Software
Update the converter on Mac OS X™ and Windows™ via USB
Internal Software Update
Via the update application (included)
Operating Systems
Mac Icon
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows Icon
Windows 8.1 or Windows 10

Settings Control
Switches or Software (via USB)

Power Supply
Universal Power: +12V and international plug adapters.
Power Consumption: 5.2 W
Operating Voltage: 12-31V DC

Physical Specifications
Operating Temperature: 0° to 40° C
Storage Temperature: -20° to 45° C
Relative Humidity: 0% to 90% non-condensing

1x Mini Converter SDI to HDMI
1x Universal 12V power supply and international plug adapters
1x Three-year limited warranty provided by the manufacturer
