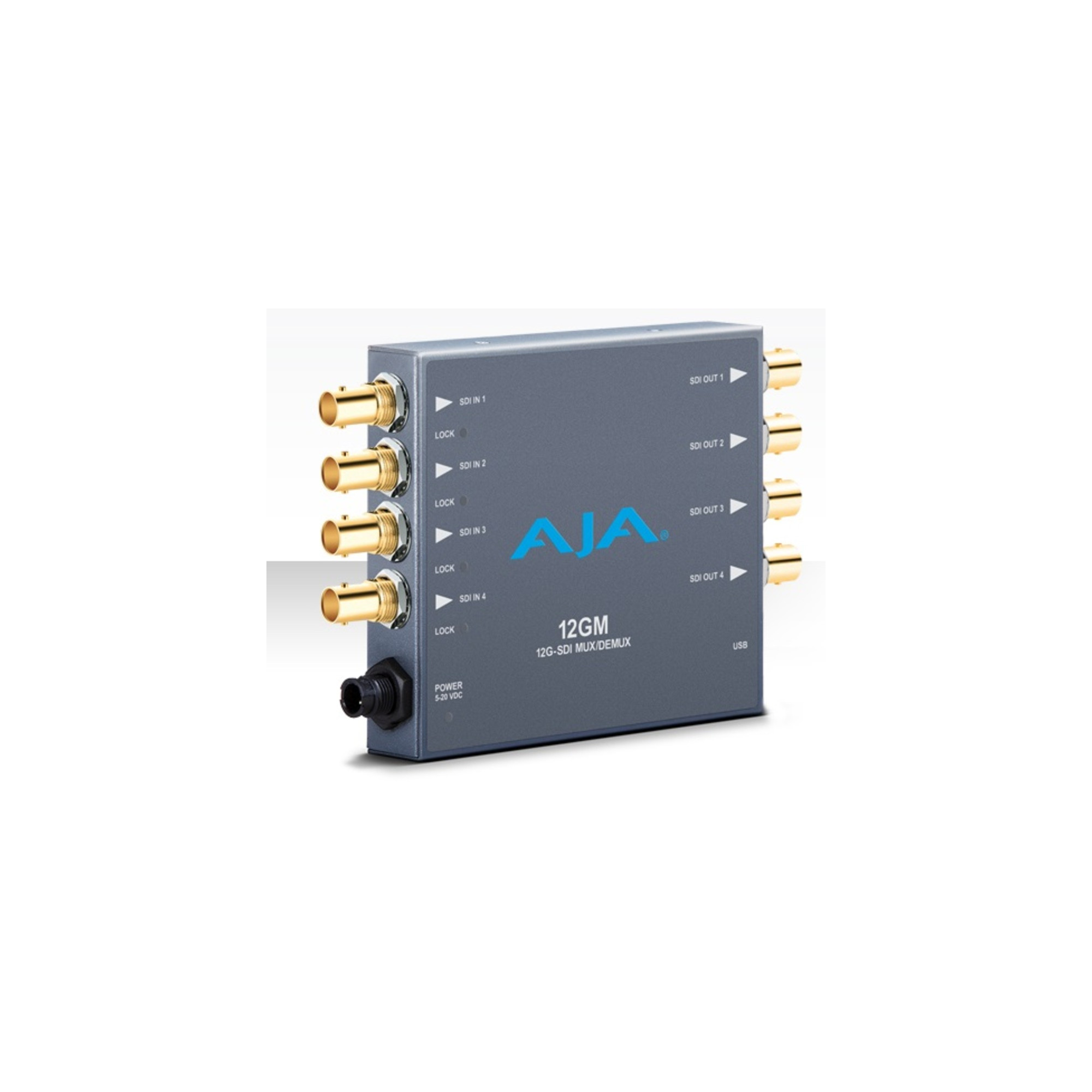

12GM-R0

Specifications
---------------------------------------
Video Formats
• (4K) 4096 x 2160p
• (UltraHD) 3840 x 2160p
• (2K) 2048 x 1080p
• (HD) 1920 x 1080p
• (HD) 1920 x 1080i
• (HD) 1280 x 720p
• (SD) 720 x 576i
• (SD) 720 x 480i

Video Input/Output Digital
• 4 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
• YCbCr 4:2:2
• 8 or 10-bit
• Two Sample Interleave (2SI) source mapping

1 x 12 Gb SDI
4 x 3 Gb SDI (Level A)
• (4K) 4096 x 2160p 50, 59.94, 60
• (UltraHD) 3840 x 2160p 50, 59.94, 60

1 x 6 Gb SDI
4 x 1.5 Gb SDI
• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

1 x 3 Gb SDI (Level A)
• (2K) 2048 x 1080p 50, 59.94, 60
• (HD) 1920 x 1080p 50, 59.94, 60

1 x 1.5 Gb SDI
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60

1 x 270 Mb SDI
• (SD) 625i 25
• (SD) 525i 29.97

Support Conversions and Functions
• Quad 3G-SDI to Single 12G-SDI
• Single 12G-SDI to Quad 3G-SDI
• Quad 1.5G-SDI to Single 6G-SDI
• Single 6G-SDI to Quad 1.5G-SDI
• Pass through of Single Link 3G, 1.5G and 270M SDI video
• Distribution Amplifier support (1x4)
• Input signal diagnostics

Cable Equalization - (Belden 1694A coax)
• 12 Gbps, 70m
• 6 Gbps, 100m
• 3 Gbps, 140m
• 1.5 Gbps, 200m
• 270 Mbps, 300m

Audio Input / Output Digital
• Passes SDI embedded audio, 24-bit, up to 16-Channels

User Interface
• USB port used with supplied cable and Mini-Config software application to configure device and access diagnostics via macOS or Windows
VAC, 50/60 Hz, universal input

Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% non condensing
• Operating Altitude: <3,000 meters (<10,000 feet)


General
Size (w x d x h) : 5.76" x 4.02" x 0.90" (146mm × 102mm × 23mm)
Weight : 0.6 lb (0.3 kg)
Power : 5-20VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter : 100-240

*12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters
