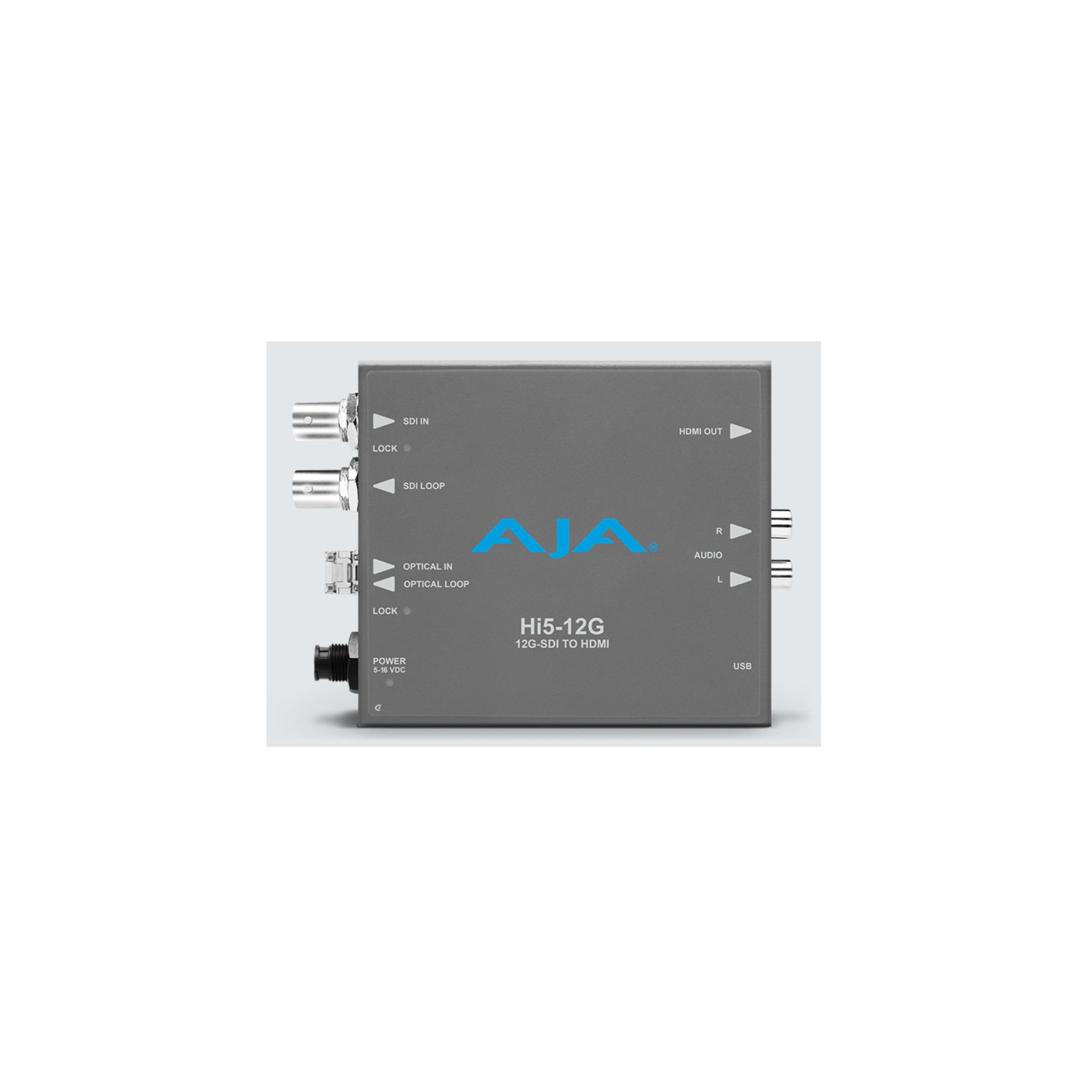

AJA 12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver - HI5-12G-R-ST
The Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity.
Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows.
The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.
It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.
Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination.
The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).
Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
Supports 12-bit workflows
Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
USB port used with Mini-Config software application to configure the device via PC/Mac
