SDI Input & Output:
° 1 x SD/HD/3G-SDI input (auto-selected), SMPTE-292/296/424 (BNC connector)
° 1 x SD/HD/3G-SDI output, SMPTE-292/296/424 (BNC connector)
Formats:
525i59.94, 625i50
1080i 50/59.94
720p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/59.94/60
1080psf 23.98/24/25/29.97/30
Reference Input:
° Color Black
° Tri-Level sync
HDMI Output: 10-bit HDMI v1.4a
Audio I/O:
° 16-channel embedded SDI audio input
° 16-channel embedded SDI audio output
° 8-channel HDMI audio output
° 2 RCA-style analog outputs at -10dBV (nominal)
HDCP:
The UDC does not encode the HDMI output with HDCP encryption.
By definition, HD-SDI inputs to the UDC are unencrypted.
The HDMI specification requires HDMI monitors to support unencrypted inputs
User Controls:
° USB port used with supplied cable and MiniConfig software application to configure device via PC/Mac
Power: 5 VDC regulated, 3 W
Dimensions: 5.8 x 3.1 x 1" (147 x 79 x 25 mm)
Packaging Info
Package Weight: 1.69 lb/767 g
Box Dimensions: 7.4 x 6 x 4.15"/19 x 15 x 11 cm

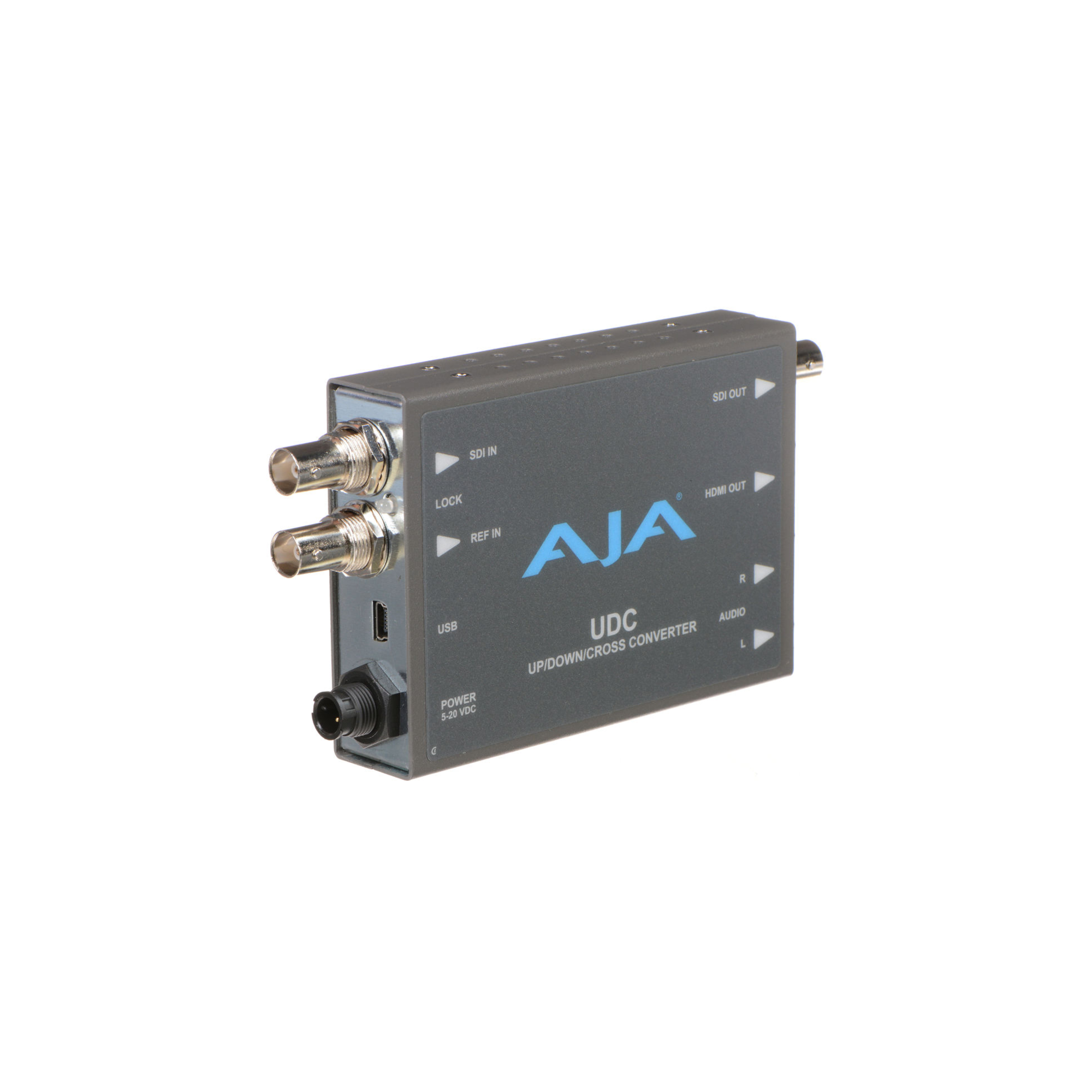

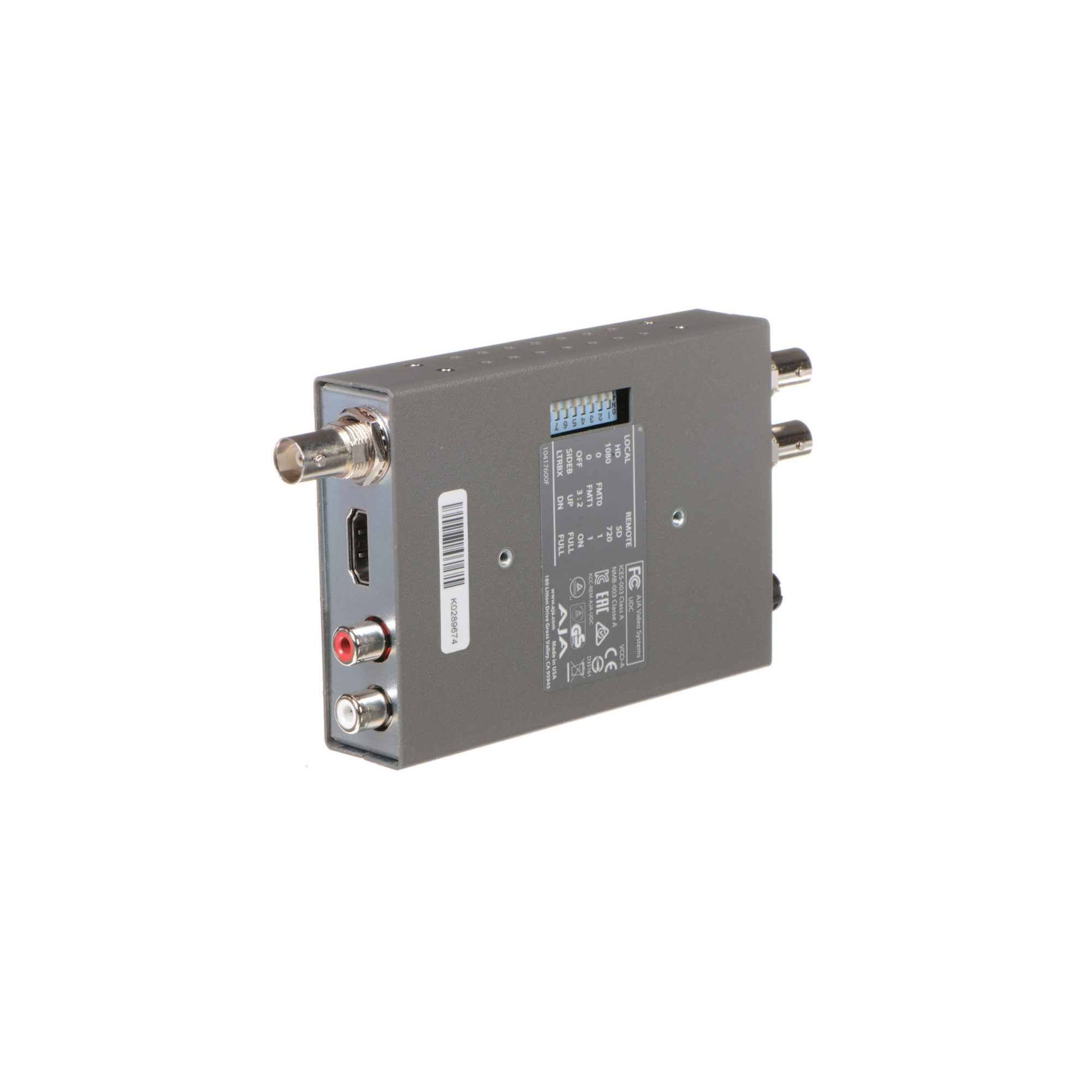

AJA UDC Up/Down/Cross Converter
