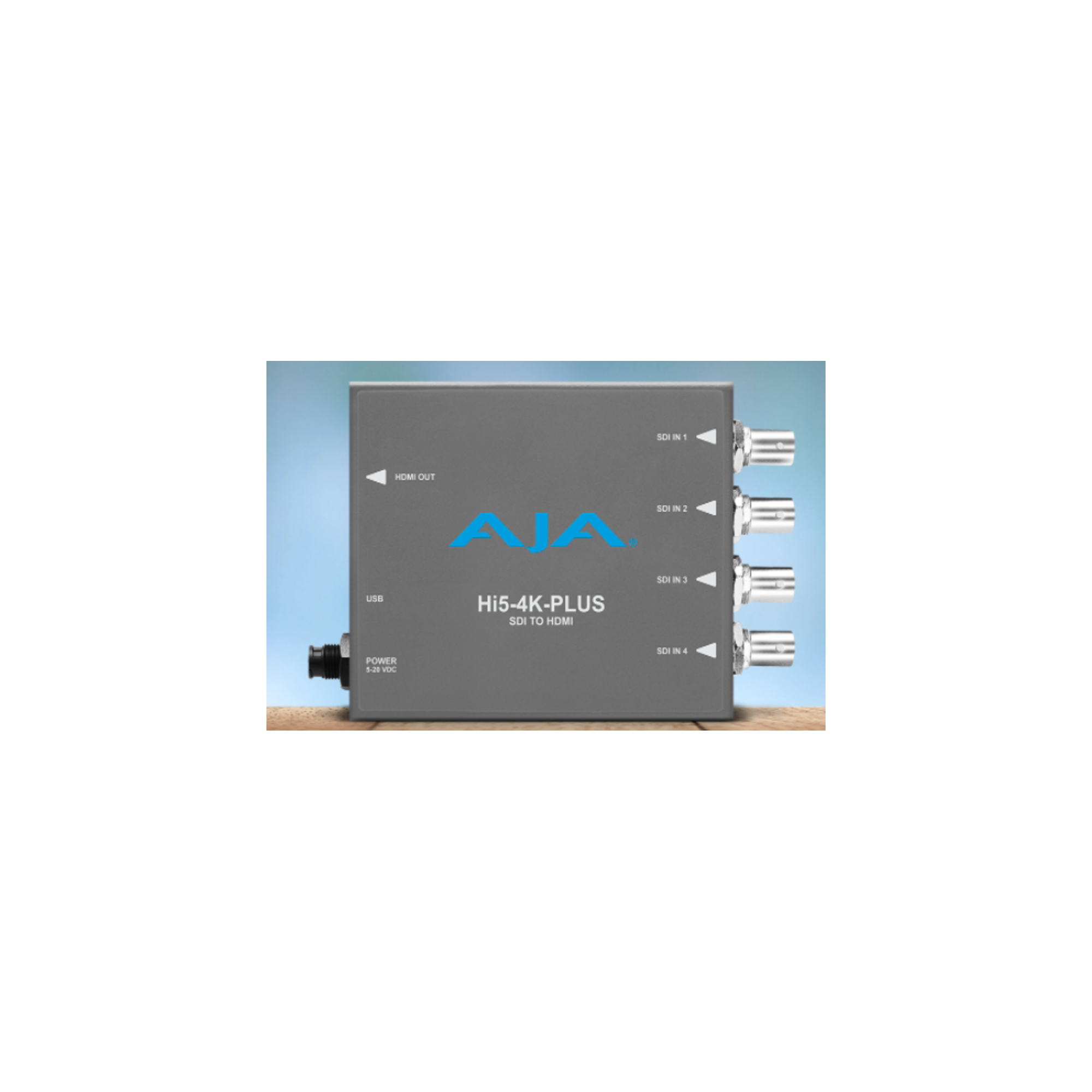

HI5-4K-PLUS

Name: HI5-4K-PLUS
Brand: AJA
SKU: HI5-4K-PLUS
Price: 990.19 EUR
Availability: OutOfStock

AJA

Pristine 3G-SDI to HDMI 2.0 conversion

go to the technical sheet

€ 990,19

€ 921,11 VAT excl.

Available in 34 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

12GDA is a miniature 1x6 12G-SDI reclocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, reclocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Features
Compact 12G-SDI distribution
Six separately buffered outputs
Miniature size
12G cable equalization (1694 coax)
12 Gbps, 70m
6 Gbps, 120m
3 Gbps, 190m
1.5 Gbps, 195m
270 Mbps, 405m
12G/6G/3G/HD/SD-SDI input, auto sensing
Passes all ancillary data
DWP-U-R1 power supply included
Five year warranty

12G-SDI from Camera to Fiber, Edit and More
Explore how AJA's latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable.
Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM muxer/demuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Video Formats:
(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i

Video Input Digital:
4x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8 or 10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4x 3 Gb SDI (Level A or B-Dual Link)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
4x 1.5 Gb SDI
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2x 3 Gb SDI (Level B-Dual Stream)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B-Dual Link)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p** 50, 59.94, 60
2x 1.5 Gb SDI
(HD) 1920 x 1080p 50, 59.94, 60
1x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
1x 270 Mb SDI
(SD) 625i 50
(SD) 525i 59.94

Video Output Digital
1x HDMI Type A connector*, HDMI v2.0
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 50
(SD) 720 x 480i 59.94

Size (w x d x h): 146.31 x 102.11 x 22.86 mm
Weight: 0.3 kg

Power:
5-20VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
