VC-1-SH

Roland''s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), and VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync).

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

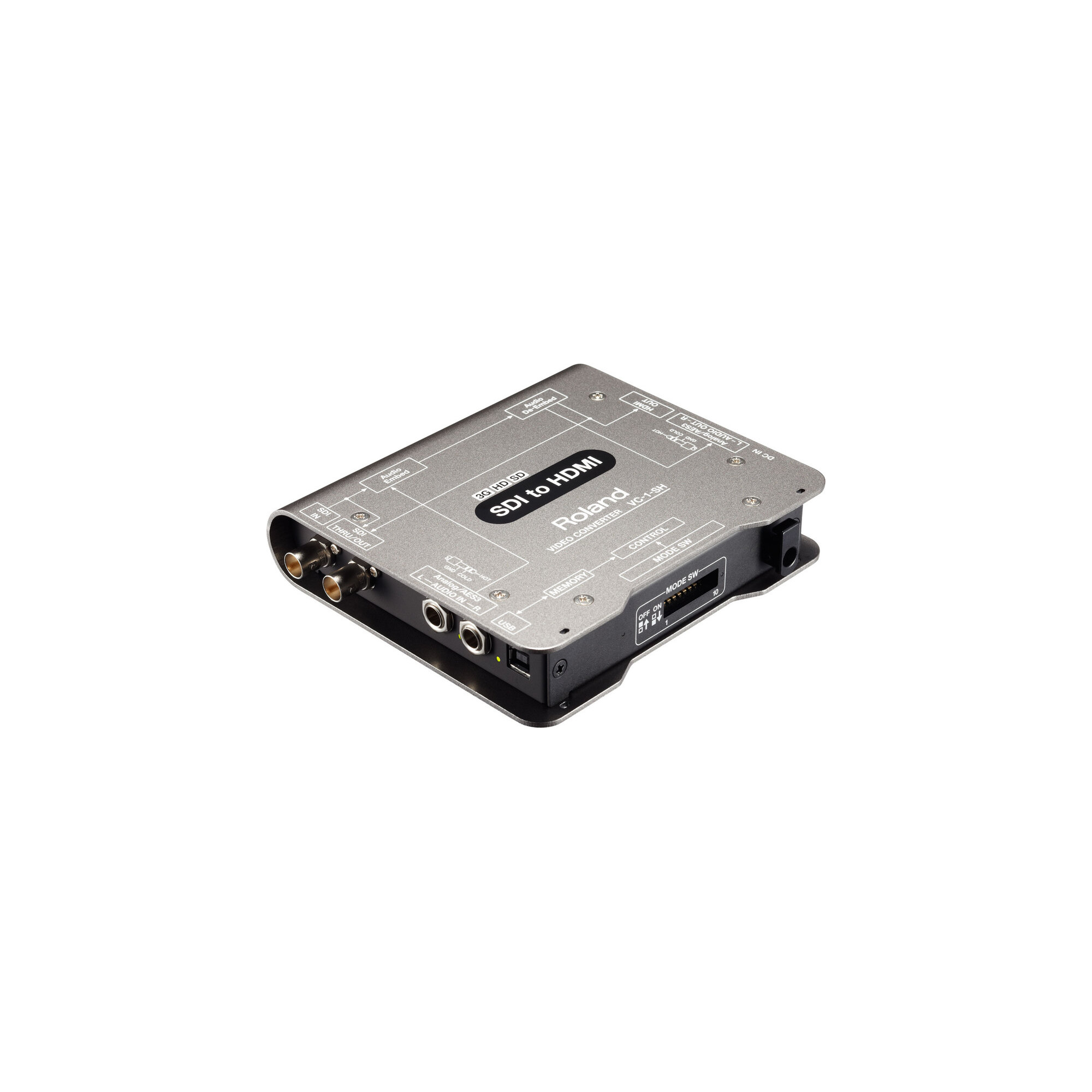

Roland VC-1-SH
The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.


Input
SDI Connector
BNC type x 1
Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Processing
Audio embedding Audio de-embedding
Output
SDI Connector
BNC type x 1 ( Thru/Out )
HDMI Connector
Type A (19 pins ) x 1
Analog Audio Connector
1/4" TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Input / Output Format
SDI Input Signal Standards
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch
Audio Input / Output
Analog Audio Input Level
+4dBu
Analog Audio Maximum Input Level
+24dBu
Analog Audio Input Impedance
110 ohms
Analog Audio Output Level
+4dBu
Analog Audio Output Impedance
600 ohms
Digital Audio Output Signal Format
AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance
110 ohms
Others
USB Connector
USB Type B (Hi-Speed USB) x 1
Power Supply
DC 9V
Power Consumption
8W
Operation Temperature
+0 to + 40 degrees Celsius
Accessories
AC adaptor, Power Cord, Rubber Foot x 4, Owner''s Manual
Size and Weight
Width
150 mm
5-15/16 inches
Depth
130 mm
5-1/8 inches
Height
30 mm
1-3/16 inches
Weight
500 g
1 lbs. 2 oz.
(0dBu=0.775Vrms )
