CONVMOF12G

Name: CONVMOF12G
Brand: Blackmagic
SKU: CONVMOF12G
Price: 194.13 EUR
Availability: InStock

Blackmagic

EAN: 9338716005400

Mini Converter Optical Fiber 12G Bidirectional. Blackmagic CONVMOF12G Mini Converter Optical Fiber 12G

go to the technical sheet

€ 194,13

€ 180,59 VAT excl.

Available 4 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

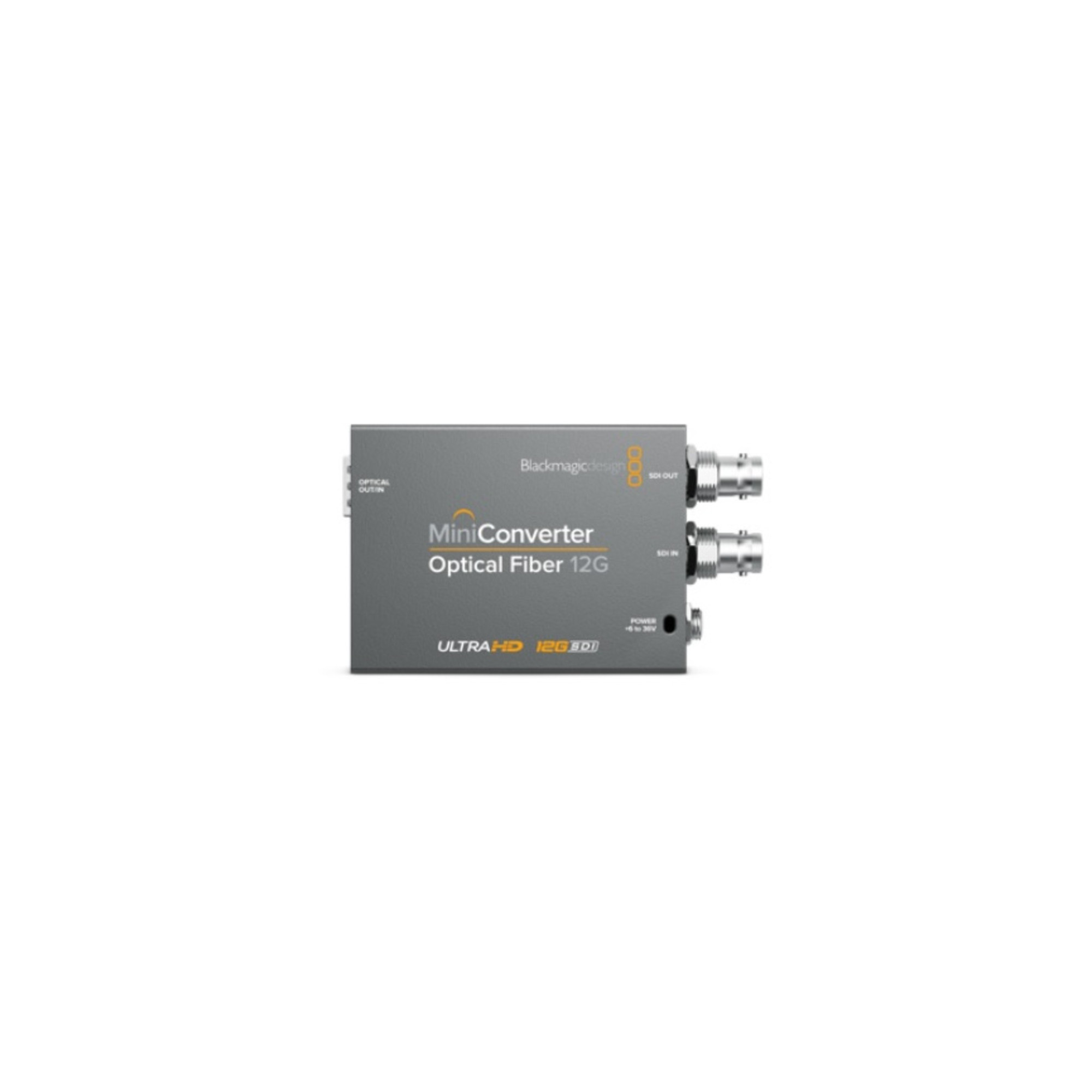

Blackmagic Mini Converter Optical Fiber 12G CONVMOF12G

Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

Converters Power Supply & Chargers Optical Fiber Cables & Connectors

Blackmagic

Adapter 3G BD SFP Optical Mod

€ 133,34 VAT included

Available 4 unit in 4 Days

Blackmagic

Adapter 12G BD SFP Optical Mod

€ 366,92 VAT included

Available 4 unit in 4 Days

Blackmagic

Adapter 6G BD SFP Optical Mod

€ 259,67 VAT included

Available in 11 days

Blackmagic

PSUPPLY-INT12V12W

€ 47,10 VAT included

Available 2 unit in 4 Days

Adcom

2LCLC 9125 300M

€ 357,22 VAT included

Available in 19 days

Adcom

2LCLC 9125 200M

€ 287,14 VAT included

Available 2 unit in 4 Days

Adcom

2LCLC 9125 100M

€ 185,43 VAT included

Available in 304 days

Adcom

2LCLC 9125 150M

€ 235,73 VAT included

Available 1 unit in 4 Days

ON-AIR

PT-M BMD MINI 12V - ON-AIR

€ 133,30 VAT included

Available in 15 days

Connections:
SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G- SDI switchable.
Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
Optical Fiber Audio Inputs: 16 channel embedded.
Optical Fiber Audio Outputs: 16 channel embedded.
Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
Reclocking: Yes

SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.

1x Mini Converter Optical Fiber 12G
1x 12V universal power supply with international socket adapters
