MG300 V2

Kiloview IP Video Media Gateway, UHD 4K60 via HDMI, 1080p60 via 3G-SDI - Black

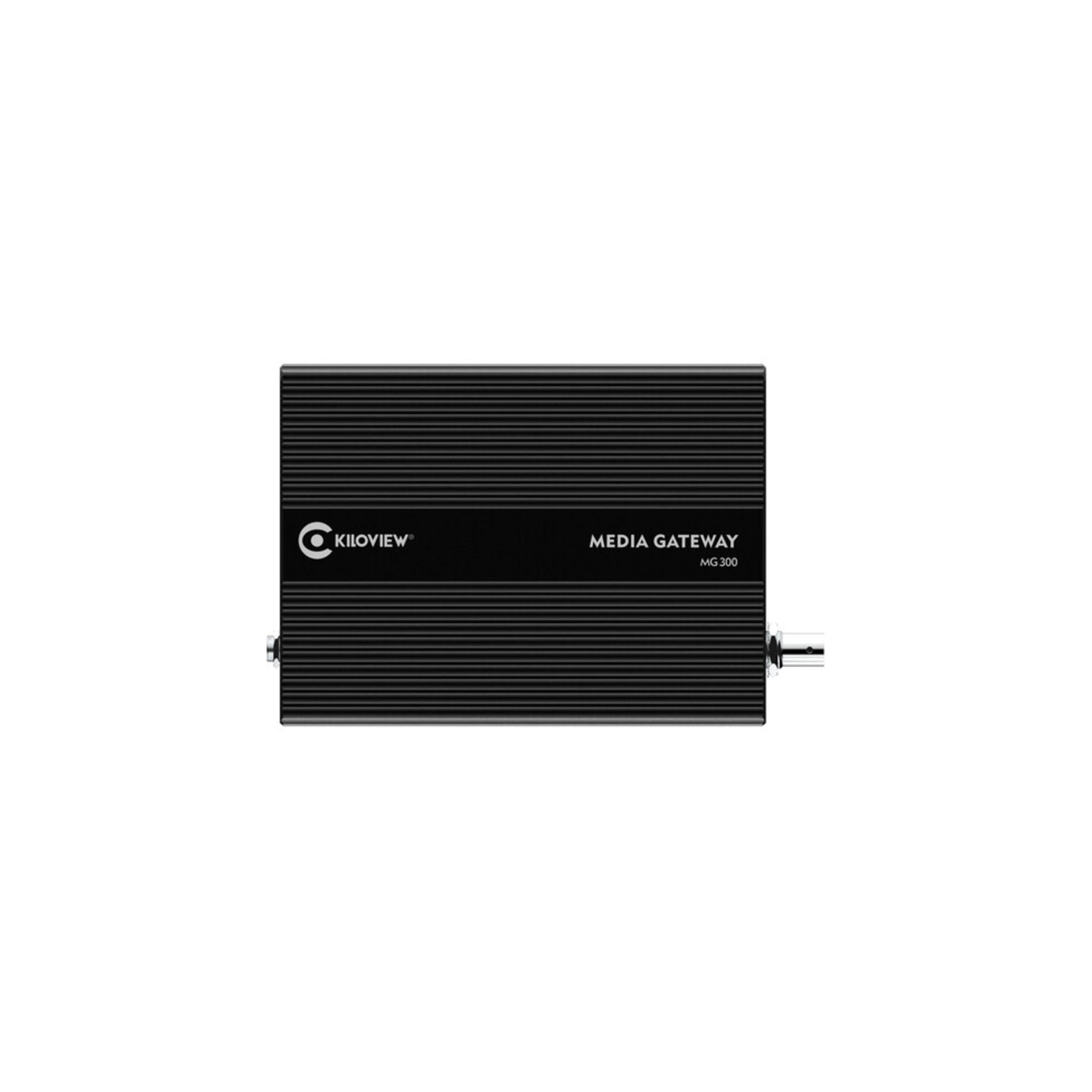

The MG300 IP Video Media Gateway from Kiloview is a multi-functional device that provides multi-channel video encoding and can also transcode between H.264 and H.265 signals.
The unit can output up to UHD 4K60 video via its HDMI output port and up to 1080p60 via its 3G-SDI output and handles multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to 3G-SDI and HDMI.

° Streaming Protocol Conversion
The MG300 is compatible with NDI|HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS.
It supports decoding with all those different protocols and at the same time supports cross conversion of up to nine protocols.

° Powerful IP Stream Function
Multi-channel video streams can be republished as a multiview video source with free layout and up to nine channels of IP streaming distribution (including the multiview video source) and each stream can be pushed to up to four same or different targets simultaneously.

° Decoding Multiple Signals
The MG300 supports decoding up to UHD 4K H.264 and H.265 IP streams and it decodes the streams to output via 3G-SDI and HDMI.
It supports decoding up to nine channels of videos simultaneously.

° Low Latency and High Quality
Intelligent delay control technology achieves a less than 200ms decoding delay in a network environment.
Image enhancement and fault-tolerant technology provides low code-encoded video, 10% of network packet loss video, and clear, distortion-free decoding output.

° Display Customization
The output display can be either in grids or a free layout with customized design, PIP, PBP, and POP.
The output resolution and frame rate are adjustable.

° Video Previewing Functions
You can preview up to 16 streams of real-time video or images on its web page, from which you can choose nine of the streams for output.

° Embedded Digital Audio
Digital audio is embedded on HDMI and 3G-SDI outputs, while a 3.5mm port provides an analog audio output.
