IO-4K-PLUS-R0

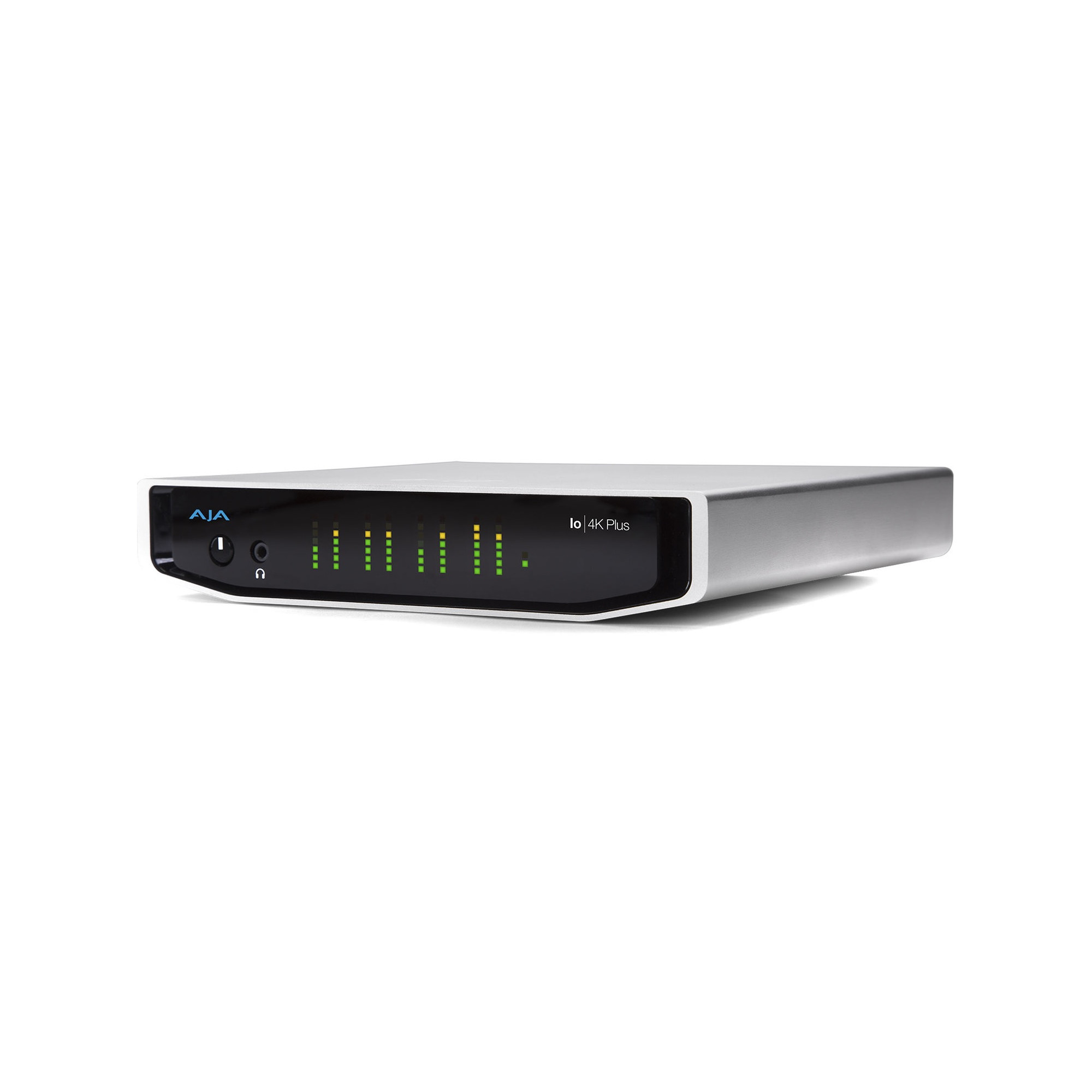

Io 4K Plus is the cutting edge of capture and output hardware available over Thunderbolt 3, offering a full set of professional video and audio connectivity with support for the latest 4K/UltraHD devices, High Frame Rate (HFR), High Dynamic Range (HDR) and deep color workflows. The power of Thunderbolt 3 enables Io 4K Plus to handle a wide range of formats from SD to HD, UltraHD and full 4K with frame rates up to 60p over both 12G-SDI and HDMI 2.0 with single cable simplicity , plus HDR 10 and HLG support over HDMI for emerging HDR workflows.

Features

Portable 4K/UltraHD and HD/SD capture and playback across Thunderbolt 3
Backwards compatibility with existing Thunderbolt hosts
12G/6G/3G/1.5G-SDI and HDMI 2.0 I/O for 4K, UltraHD, 2K, HD and SD with HFR support up to 60p at 4:2:2
Real time 4K/UltraHD to 2K/HD down-conversion
8-,10- and 12-bit 4:2:2 and 4:4:4 over 12G-SDI or HDMI 2.0 workflow support
Two Thunderbolt 3 ports allow easy daisy-chaining of up to six Thunderbolt devices
16-channel embedded audio on SDI; 8-channel embedded audio on HDMI; 4-channel analog audio in and out via XLR break-out
Downstream keyer
Standard 12v 4-pin XLR for AC or battery power
Compatibility with creative applications including Adobe Premiere Pro, Apple Final Cut Pro X, Avid Media Composer, FilmLight products, AJA Control Room and more
RS-422 VTR control, Reference, LTC Input
Headphone jack and level control for mobile environments
3-year international warranty


* Note: To make the matrix operational, a power cable with a European/Italian plug is required
