ATEM156S-CO

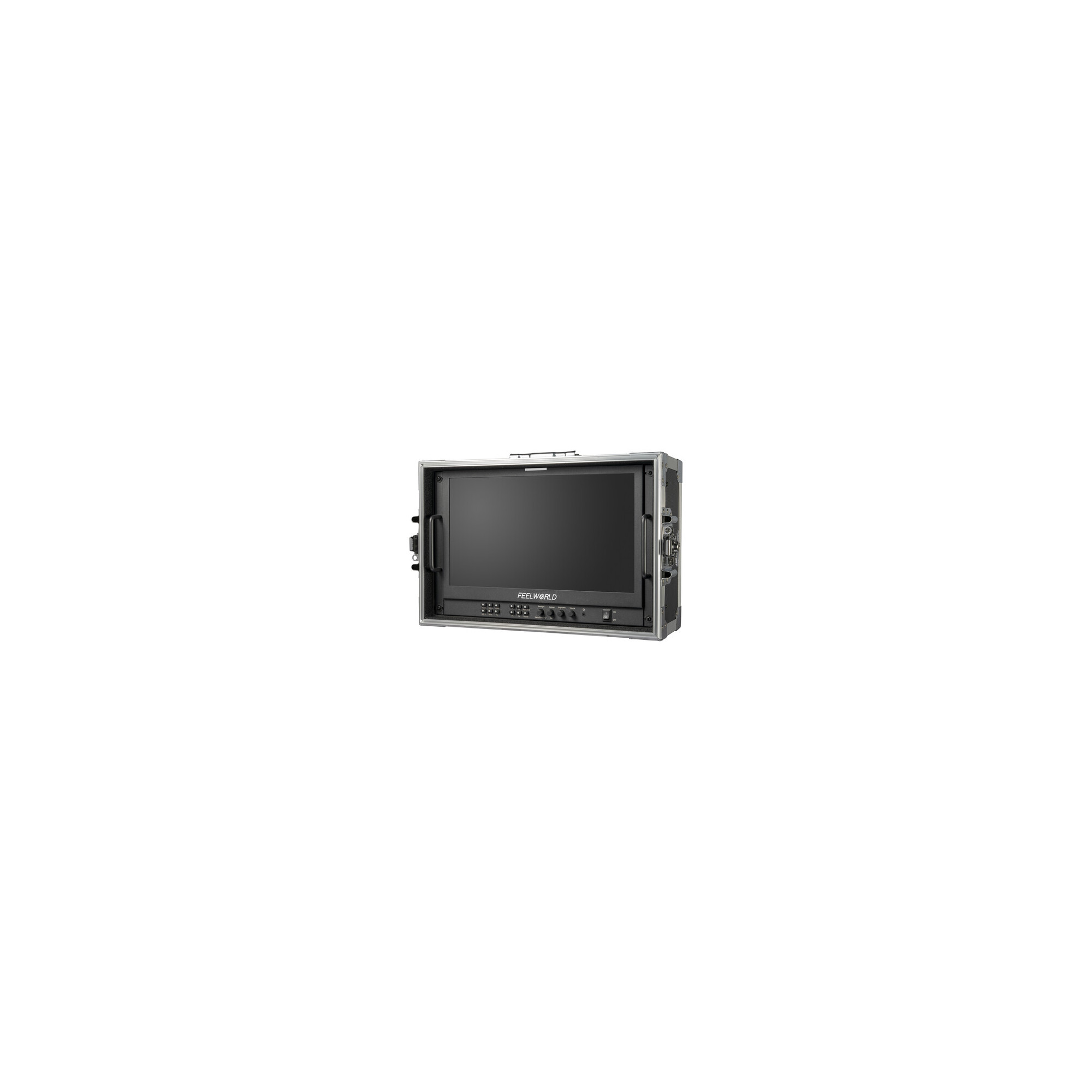

15.6 "Broadcast Director multi-camera monitor features a quad-split display with a maximum resolution of 1920 x 1080 and 200 cd / m 2 brightness. The rear panel contains an HDMI input, four 3G-SDI inputs and four 3G-SDI outputs and supports quad-view and PiP display layouts so you can view the inputs at the same time.The monitor is installed in an aluminum carrying case that features a rear cover for accessing the ports and battery, and the cover front installs to protect the monitor for transportation. It can be carried using a handle on the top.

Professional monitoring tools such as focus peaking, marker, monochrome, R / G / B only, pixel-to-pixel mapping and image flipping are integrated to analyze the video and ensure a correct image. A USB input allows you to add custom 3D LUTs and supports GPI and RS-485 control. A V-mounting plate is integrated in the back for field power away from a power source, and a VESA mounting configuration is on the back for alternative mounting options.



Main features

-15.6 inch Full HD 1920 x 1080 screen
-Sturdy aluminum housing; durable
- Flexible and intuitive button operation; easy to use
-Multiple display modes (single, PiP, quad)
-Supports 3D LUT register on REC.709 and user 3D LUT upload (up to 36)
- Waveform, vectorscope, RGB histogram, focus assist and monochrome functions; you can accurately expose and -focus every shot
Multiple interfaces include four 3G-SDI inputs and outputs, one HDMI, RS-485 and GPI input
-Stereo earphone output
-Support for standard VESA mounting points for bracket or wall installations

Characteristics of the image

- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Peak assisted focus
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
-Display rotation (0, 90, 180, 270 °, H / V mirror)
- Check field (red, green, blue, mono)
- Image block
Enlarge
- Pixel to pixel
-Central indicator
-Screen indicator (80, 85, 90, 93, 96%, 4: 3, 2.39: 1, 2.35: 1, 1.85: 1)
- Line color (red, green, blue, white)



In the box
FeelWorld 15.6 "Multicamera Broadcast Director Monitor (hand held)
Power adapter
V-mount battery plate
Mini HDMI cable
SDI cable
Solar hood
Case for suitcases
1 year limited warranty
