V-160HD
Roland
4957054517939

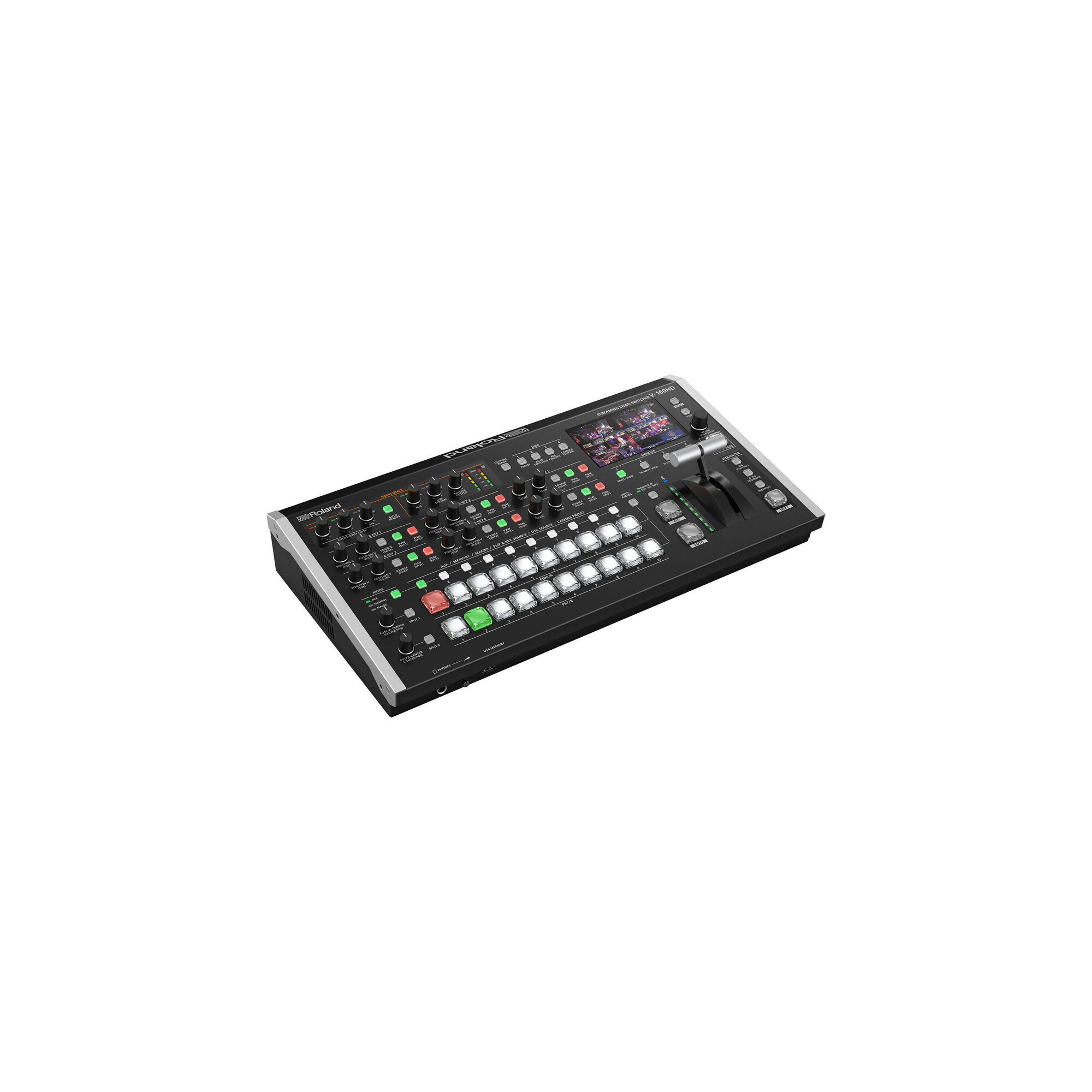

SDI/HDMI Streaming HD Video Switcher
go to the technical sheet
₦ 9,372,816.00
₦ 8,718,899.00 VAT excl.
Roland - This multi-format video switcher allows you to manage, with maximum flexibility, live events both in presence and streaming.
8 Channels to manage with 8 HDMI or 3G-SDI inputs, with the addition of effects, having the freedom, via the auxiliary outputs, to project everything to displays, projectors, recorders.
With this V-160HD SDI/HDMI streaming video switcher from Roland, you can stream live while projecting high definition video broadcasts in presence.
This multi-format hybrid video switcher allows you to input up to eight HDMI video sources and eight 3G-SDI video sources, switch them, add effects and send them consistently to displays, projectors, recording units and now via USB Type-C for live streaming applications.
Key Features
______________________________
° Portable hybrid event switcher with comprehensive features and connectivity
° Eight 3G-SDI inputs with frame rate converters
° Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
° Seven total outputs across SDI, HDMI, and USB Type-C streaming
° 40-channel digital audio mixer with effects and processing
° Eight-layer video effects engine
° Powerful live production automation with sequencing, macros, and preset memories
° PTZ control with support for multiple brands and mixed protocols running at once
° Extensive device control with Bluetooth, USB, RS-232, and LAN
° Remote control software available for iPad, macOS, and Windows
° Wireless and wired camera tally support
The HDMI and 3G-SDI inputs can accept up to 1080p60 resolution feeds from numerous sources such as media players, computers, or professional video cameras, and they all support frame rate converters. Four of the HDMI inputs utilize real-time internal scaling hardware, which separately scale and/or convert videos of varied resolutions into the selected output resolution, ensuring output consistency between sources. It features a total of seven outputs comprised of SDI, HDMI, and USB Type-C for streaming, as well as Bluetooth for control for using an iPad, macOS, or Windows device.
The V-160HD features an eight-layer video effects engine, four PiP (picture-in-picture) outputs, channels for up to 16 still images, and two downstream keyers supporting numerous effects such as cut, mix, wipe, chroma key, luma key, flip, fade, and more. You can store up to 16 .jpg, .bmp, and .png files up to 1920 x 1080 resolution into internal memory to add images to your effects. It supports live production automation, macros, presets, and cue management to make broadcasting and planning your live show easier. You can also control up to 16 PTZ cameras from numerous brands using IP or RS-232 serial, consolidating all control in the V-160HD, and it also supports GPIO, wired, and wireless tally.
The V-160HD features a 40-channel audio mixer and up to 24-bit, 48 kHz PCM audio with an effects library that provides gain, de-esser, noise reduction, and more. It also features left/right analog RCA inputs and outputs, stereo 3-pin XLR inputs and outputs, and 1/4" BOSS pedal support.
Video Effects
Transition: Cut, mix (dissolve/FAM/NAM), wipe (8 types), split (2 types)
Composition: Four PiP (square, circle, diamond), four keyer (luminance key, chroma key), two DSK (luminance key, chroma key, alpha key, external key)
Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio, video: white or black), test pattern output
Audio Effects
Auto mixing, delay, reverb, high-pass filter, echo canceller, anti-feedback, noise gate, de-esser, compressor, equalizer, voice changer, multiband compressor, limiter, test tone output
Other Functions
° Preset memory (30 types)
° Macro control (100 types)
° Sequencer control
° Panel lock function
° EDID emulator
° Auto switching
° Auto input detect
° Smart tally
° Remote camera control
° Rec control
8 Channels to manage with 8 HDMI or 3G-SDI inputs, with the addition of effects, having the freedom, via the auxiliary outputs, to project everything to displays, projectors, recorders.
With this V-160HD SDI/HDMI streaming video switcher from Roland, you can stream live while projecting high definition video broadcasts in presence.
This multi-format hybrid video switcher allows you to input up to eight HDMI video sources and eight 3G-SDI video sources, switch them, add effects and send them consistently to displays, projectors, recording units and now via USB Type-C for live streaming applications.
Key Features
______________________________
° Portable hybrid event switcher with comprehensive features and connectivity
° Eight 3G-SDI inputs with frame rate converters
° Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
° Seven total outputs across SDI, HDMI, and USB Type-C streaming
° 40-channel digital audio mixer with effects and processing
° Eight-layer video effects engine
° Powerful live production automation with sequencing, macros, and preset memories
° PTZ control with support for multiple brands and mixed protocols running at once
° Extensive device control with Bluetooth, USB, RS-232, and LAN
° Remote control software available for iPad, macOS, and Windows
° Wireless and wired camera tally support
The HDMI and 3G-SDI inputs can accept up to 1080p60 resolution feeds from numerous sources such as media players, computers, or professional video cameras, and they all support frame rate converters. Four of the HDMI inputs utilize real-time internal scaling hardware, which separately scale and/or convert videos of varied resolutions into the selected output resolution, ensuring output consistency between sources. It features a total of seven outputs comprised of SDI, HDMI, and USB Type-C for streaming, as well as Bluetooth for control for using an iPad, macOS, or Windows device.
The V-160HD features an eight-layer video effects engine, four PiP (picture-in-picture) outputs, channels for up to 16 still images, and two downstream keyers supporting numerous effects such as cut, mix, wipe, chroma key, luma key, flip, fade, and more. You can store up to 16 .jpg, .bmp, and .png files up to 1920 x 1080 resolution into internal memory to add images to your effects. It supports live production automation, macros, presets, and cue management to make broadcasting and planning your live show easier. You can also control up to 16 PTZ cameras from numerous brands using IP or RS-232 serial, consolidating all control in the V-160HD, and it also supports GPIO, wired, and wireless tally.
The V-160HD features a 40-channel audio mixer and up to 24-bit, 48 kHz PCM audio with an effects library that provides gain, de-esser, noise reduction, and more. It also features left/right analog RCA inputs and outputs, stereo 3-pin XLR inputs and outputs, and 1/4" BOSS pedal support.
Video Effects
Transition: Cut, mix (dissolve/FAM/NAM), wipe (8 types), split (2 types)
Composition: Four PiP (square, circle, diamond), four keyer (luminance key, chroma key), two DSK (luminance key, chroma key, alpha key, external key)
Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio, video: white or black), test pattern output
Audio Effects
Auto mixing, delay, reverb, high-pass filter, echo canceller, anti-feedback, noise gate, de-esser, compressor, equalizer, voice changer, multiband compressor, limiter, test tone output
Other Functions
° Preset memory (30 types)
° Macro control (100 types)
° Sequencer control
° Panel lock function
° EDID emulator
° Auto switching
° Auto input detect
° Smart tally
° Remote camera control
° Rec control
RCC-6-SDI
₦ 16,285.00
VAT included
Available 8 unit in 4 Days
HDMI to HDMI 50M Fiber
₦ 207,904.00
VAT included
Available 6 unit in 4 Days
HDMI to HDMI 20M Fiber
₦ 158,669.00
VAT included
Available 9 unit in 4 Days
RCC-25-SDI
₦ 81,538.00
VAT included
Available 9 unit in 4 Days
RCC-200-SDI
₦ 253,591.00
VAT included
Available in 11 days
RCC-10-HDMI
₦ 47,138.00
VAT included
Available in 11 days
RCC-16-HDMI
₦ 75,464.00
VAT included
Available in 11 days
HDMI to HDMI 40M Fiber
₦ 186,296.00
VAT included
Available 7 unit in 4 Days
RCC-3-HDMI
₦ 14,458.00
VAT included
Available 6 unit in 4 Days
RCC-10-SDI
₦ 43,483.00
VAT included
Available 1 unit in 4 Days
RCC-50-SDI
₦ 96,050.00
VAT included
Available 5 unit in 4 Days
HDMI to HDMI 30M Fiber
₦ 188,608.00
VAT included
Available 2 unit in 4 Days
HDMI to HDMI 10M Fiber
₦ 497,401.00
VAT included
Available 8 unit in 4 Days
RCC-25-HDMI
₦ 85,139.00
VAT included
Available 9 unit in 4 Days
RCC-3-SDI
₦ 13,544.00
VAT included
Available 7 unit in 4 Days
RCC-100-SDI
₦ 103,575.00
VAT included
Available 7 unit in 4 Days
RCC-6-HDMI
₦ 25,154.00
VAT included
Available 3 unit in 4 Days
FS-6
₦ 185,866.00
VAT included
Available in 4 days
UVC-01
₦ 498,154.00
VAT included
Available 1 unit in 4 Days
BR-500350
₦ 561,149.00
VAT included
Available 9 unit in 4 Days
Roland V-160HD Specs
Mix Effects
Available M/E Layers 8 M/E
Effect Types: 8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory: 16 Images (Total)
Downstream Keys: 2 x Chroma, Luma
Generators : 1 x Pattern
Audio Mixing : 40-Channel Mixing
Processing
Switching Type : Pushbutton, T-Bar
Processing Resolution: 1080p at 29.97/50/59.94
Color Processing : 8-Bit 4:2:2 YCbCr
Audio Processing : 48 kHz / 24-Bit
Number of Video Input Sources : 16
Video Input Connectors
8 x HDMI Female
8 x BNC (3G-SDI)
Input Video Format
HDMI / SDI
1080p: 23.98/24/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
HDMI
1080p: 24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
576p: 50 fps
576i / 625 lines: 50 fps
480p: 59.94 fps
480i / 525 lines: 59.94 fps
WUXGA (1920 x 1200): 60 fps
UXGA (1600 x 1200): 60 fps
SXGA+ (1400 x 1050): 60 fps
FWXGA (1366 x 768): 60 fps
SXVGA (1280 x 1024): 60 fps
WXGA (1280 x 800): 60 fps
XGA (1024 x 768): 60 fps
SVGA (800 x 600): 60 fps
Audio Input Connectors
1 x 2RCA Stereo Analog Female
2 x 3-Pin XLR Analog Male
Input Audio Format : Analog: 48 kHz / 24-Bit
Embedded Audio Input HDMI: 2-Channel (per Input)
Output
Video Output Channels : 7
Video Output Connectors
3 x HDMI Female (Loop Output)
3 x BNC (3G-SDI) Female (Preview)
1 x USB Type-C (USB Video) Female
Output Video Format : HDMI / SDI (8-Bit 4:2:2 YCC)
1080p: 30/59.94/60 fps
1080i: 30/59.94/60 fps
720p: 50/59.94/60 fps
USB Type-C
1080p: 25/29.97/50/59.94 fps
720p: 25/29.97/50/59.94 fps
480p: 25/29.97/50/59.94 fps
Audio Output Connectors
1 x 2 RCA Stereo Analog Female
2 x 3-Pin XLR Stereo Analog Male
1 x 1/4" TRS Stereo Analog Female
Output Audio Format
Analog: 48 kHz / 24-Bit
Embedded Audio Output HDMI: 8-Channel (per Output)
SDI: 8-Channel (per Output)
USB Type-C: 2-Channel (per Output)
Multiview Output : 1-Way Multiview via HDMI
Connectivity
Other I/O 1 x DE-9/DB-9 RS-232 Input
1 x RJ45 Control Input/Output
1 x DB-25 GPI, Tally Input/Output
1 x USB Type-A Service Input
Video Standard Compliance : SMPTE 292M/424M/425M-A/425M-B
HDCP Support : Yes
IP Encoding/Decoding
IP Video MJPEG: 1920 x 1080 at 30p, 60p Encoding
IP Audio PCM: Encoding
Display
Display Size 4.3"
Screen Resolution 480 x 272
Hardware
OS Compatibility Windows
macOS
iPadOS
Bluetooth 4.2
Power
Power Connector 1 x Barrel (24 VDC) Input
Power Consumption Device: 2.5 A55 W
Environmental
Operating Temperature : 0 to 40°C (32 to 104°F)
General
Dimensions : 437 x 253 x 103 mm (17.2 x 10 x 4.1")
Weight : 8.6 lb / 3.9 kg
1x Roland V-160HD SDI/HDMI Streaming Video Switcher
1x Power Supply
1x Power Cable
2x Rack Ears
6x Screw
