MON-CINE-13

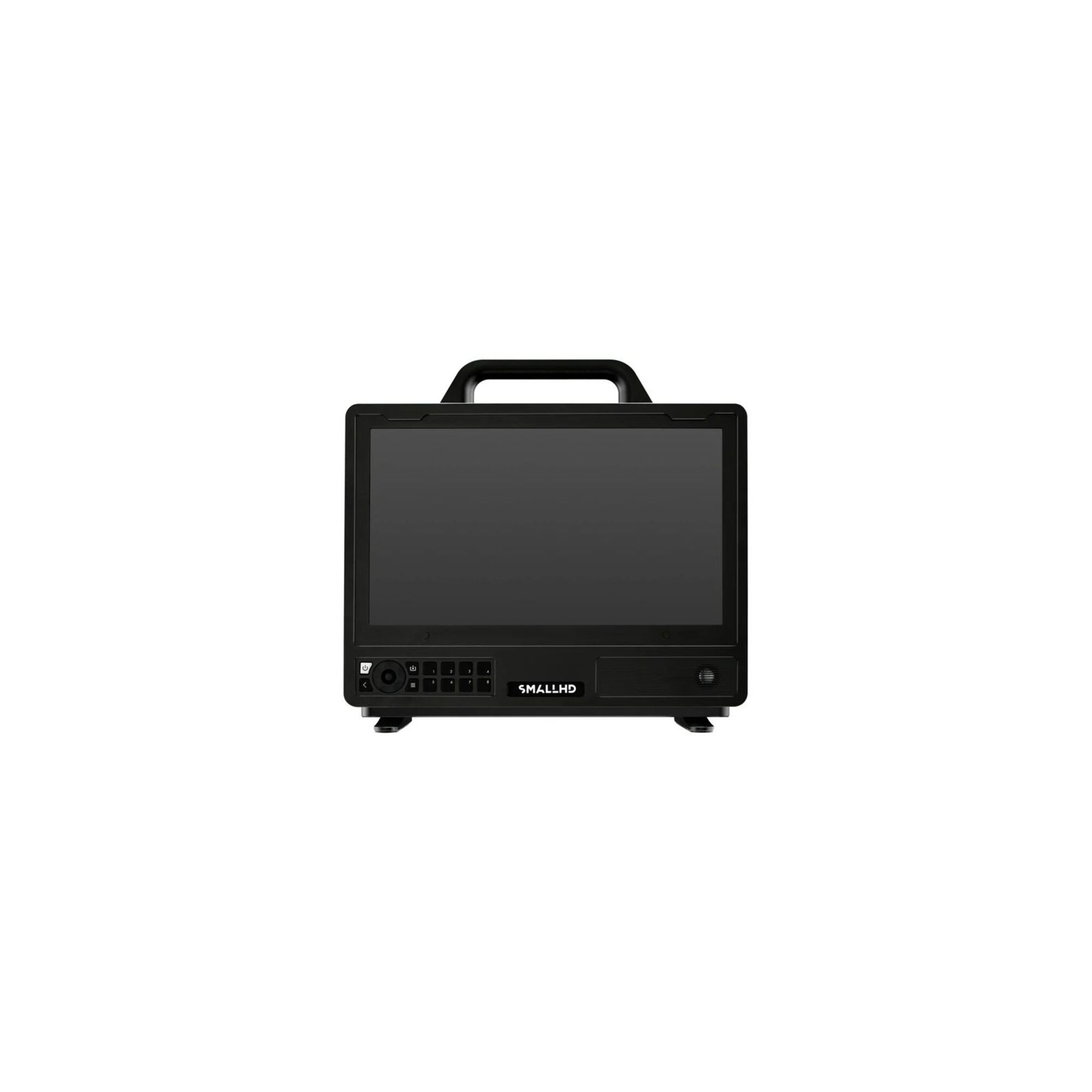

SmallHD Cine 13 UHD 4K High-Bright Monitor, 1500 nits / cd/m2, 12G-SDI & HDMI 2.0 IN/OUT

Add a professional UHD 4K monitor to your studio or set with the Cine 13 UHD 4K High-Bright Monitor from SmallHD.
Featuring the latest PageOS 4, the monitor provides a crisp 13.3" display size, 3840 x 2160 resolution, with 10-bit DCI-P3, 100% Rec.709 color intelligence, 1500 cd/m² brightness, and a 1300:1 contrast ratio, all the features fit for viewing UHD 4K video footage in any environment.
The Cine 13 features four 12G-SDI inputs and four 12G-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output.
There is also a 3.5mm headphone output to monitor the embedded audio.
All functionality of the monitor is accessed via the innovative Page Builder in PageOS 4 that features a sophisticated UI, preconfigured pages, and adjustable page tabs.
Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.

You can power the Cine 13 using its 4-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and you can hot-swap between the XLR and optional battery power.
You can also simultaneously power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB-A outputs, or the one USB-C output.
Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration.
The monitor includes numerous accessories, such as a monitor foot set, a transport protector, a 4-pin XLR power supply, an 8GB SD card, a top handle, and a microfiber cleaning cloth.

PageOS 4 Display Tools
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to 8 channels

Power Options
- One 4-pin XLR 12 to 34V, 12A input
- Two 2-pin LEMO 12V, 2A outputs
- One USB-A 5V, 1.5A output
- Two USB-A 5V, 2.4A outputs
- One USB-C 5V, 1.5A outputs
- Separately available V-mount or Gold mount battery plates
- 4-pin XLR and battery options are hot-swappable
