VR-120HD

Name: VR-120HD
Brand: Roland
SKU: VR-120HD
Price: 6206.02 EUR
Availability: InStock

Roland

EAN: 4957054519285

Direct Streaming AV Mixer 8 M/E 6 x HDMI Female 6 x BNC (3G-SDI) Female

go to the technical sheet

-2.5%

Save 2.5%

€ 6.206,02

€ 5.773,04 VAT excl.

€ 6.365,14

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

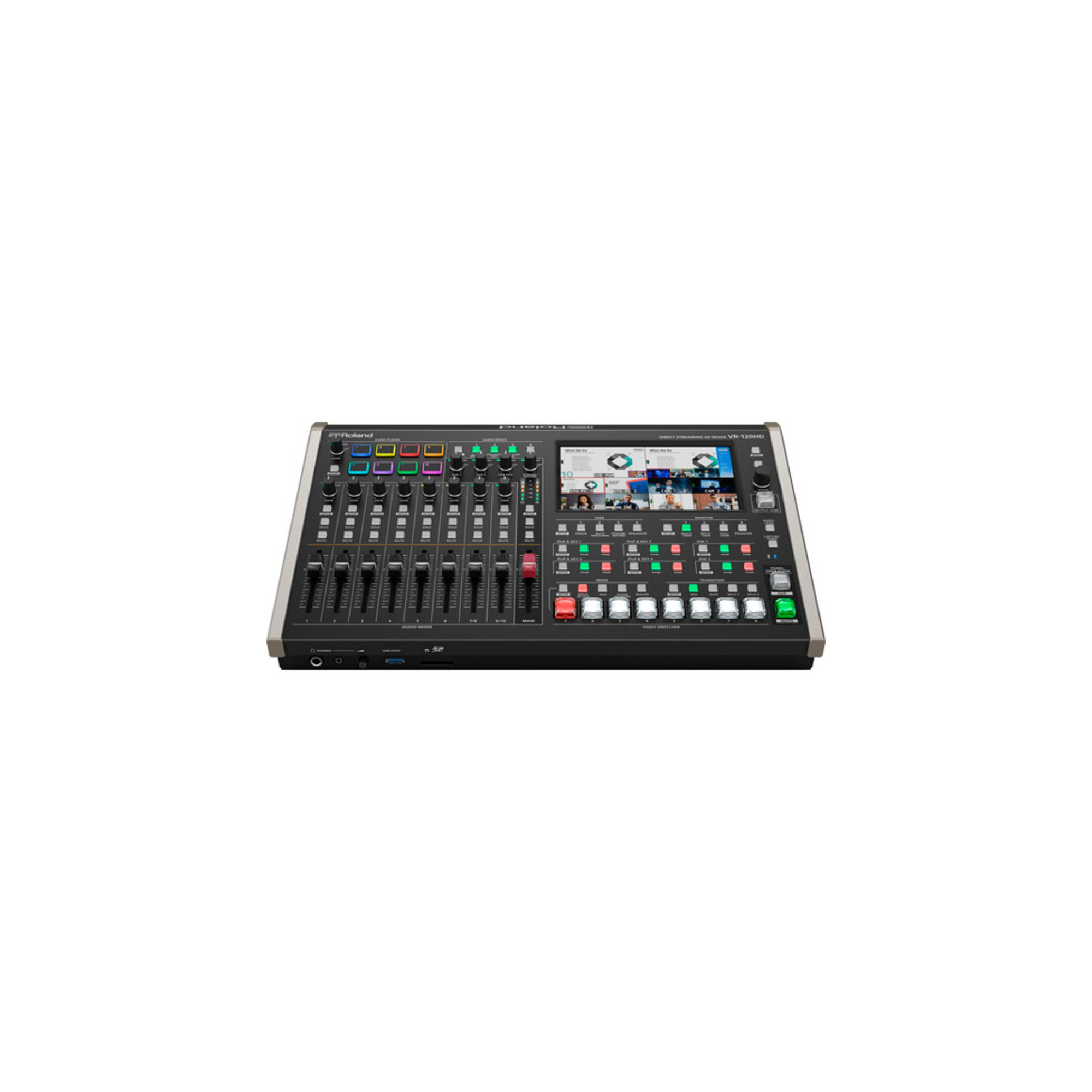

Roland VR-120HD Direct Streaming AV Mixer

Add a professional hybrid event AV mixer to your production kit with this VR-120HD Direct Streaming AV Mixer from Roland.
Combining the advanced functions of a video switcher and an audio mixer, the portable VR-120HD is ideal for live school events, houses of worship, council meetings, corporate events, concerts, and other live performance venues.
The switcher offers the capability of live streaming up to two simultaneous streams to popular online forums, such as Facebook and Twitch.

The unit features six HDMI inputs and six SDI inputs capable of handling resolutions up to 1080p60, as well as three HDMI and three SDI outputs, 42-channel audio mixing, and direct LAN and USB-C live streaming outputs.
Perfect for use as a standalone production switcher, the VR-120HD offers an integrated 7" touchscreen display with a graphical menu for previewing all your incoming signals and viewing your intended program output without ever needing additional preview monitors.

Hybrid live and online productions can easily be managed by a single operator with hands-on control and with sophisticated automation functions, customizable workflows, one-touch macro sequencing, and remote control of up to 12 PTZ cameras.
The integrated eight-layer video effects engine, seven selectable output modes, and six HDMI input options with frame rate converters and real-time scalers only scrape the surface of the versatility offered by this switcher, which also handles a wide range of cinema and broadcast frame rates and has internal recording when using an optional SDXC card or USB-A flash drive.

Portable Hybrid Event AV Streaming Mixer
Automation with Sequencing & Macros
2 x Live Streams at up to 1080p60
6 x 3G-SDI & 6 x HDMI Inputs
Cinema & Broadcast Frame Rates Supported
8-Layer Video Effects Engine
42-Channel Digital Audio Mixer
Records Streams to Optional SDXC Card
PTZ Control for up to 12 Cameras
7" Touchscreen with Graphical Menu

Available M/E Layers: 8 M/E
Effect Types:
DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory: None
Downstream Keys: 2 x Chroma, Alpha, Luma, DVE
Audio Mixing: 42-Channel Mixing
Switching Type: Pushbutton
Processing Resolution: 1080p at 60
Color Processing: 8-Bit 4:2:2
Audio Processing: 48 kHz / 24-Bit
Number of Video Input Sources: 12

Video Inputs
6 x HDMI Female
6 x BNC (3G-SDI) Female

Input Video Format
HDMI (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94 fps
720p at 50/59.94 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94 fps
480i / 525 lines at 59.94 fps
Analog
VGA (640 x 480) at 60 fps
SVGA (800 x 600) at 60 fps
XGA (1024 x 768) at 60 fps
WXGA (1280 x 800) at 60 fps
SXVGA (1280 x 1024) at 60 fps
FWXGA (1366 x 768) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
UXGA (1600 x 1200) at 60 fps
WUXGA (1920 x 1200) at 60 fps
SDI (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB-C (8-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
720p at 24/25/29.97/30/50/59.94/60 fps
480p at 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Inputs
6 x Combo XLR-1/4" TRS Analog Female
2 x 2RCA Analog Female

Input Audio Format
Analog: 48 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input
HDMI: 2-Channel (per Input)
SDI: 2-Channel (per Input)
USB-C: 2-Channel

Video Outputs
3 x HDMI Female
3 x BNC (3G-SDI) Female
Output Video Format
HDMI / SDI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/60 fps
720p 50/59.94/60 fps

Audio Outputs
4 x XLR 3-Pin Mono Analog Male
1 x 2RCA Stereo Analog Female
1 x 1/4" TRS Stereo Analog Female
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format
Analog: 48 kHz / 24-Bit
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Output
HDMI: 8-Channel (per Output)
SDI: 8-Channel (per Output)
USB-C: 2-Channel

Inputs/Outputs: 1 x USB-C(Stereo) Female
Other I/O:
1 x USB-A 2.0 Input
1 x DB-25 Tally
1 x DE-9/DB-9 RS-232
1 x RJ45 Control, LAN
2 x BNC Blackburst, Reference
2 x 1/4" TRS Control

Video Standard Compliance: SMPTE 292M/424M/424M-A/424M-B
IP Video - H.264/MJPEG: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (20,000 Kb/s) Encoding
IP Audio - AAC-LC: 384 Kb/s Encoding
Simultaneous Streams: 2 Streams
Recording Media: 1 x SDXC, SDHC, USB-A 2.0
Recording Modes: 1920 x 1080p up to 60 fps (MP4 via H.264/AVC)
Display Size: 7"
Screen Resolution: 800 x 480

OS Compatibility
macOS
Windows
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi: None
Bluetooth: 4.2

Power
Power I/O: 1 x Barrel (24 VDC at 3 A) Input

General
Power Consumption: 69W
Operating Temperature: 32 to 104°F/ 0 to 40°C
Certifications: FCC (as per Manufacturer)
Dimensions: 17.2 x 12 x 4.3" / 437 x 304 x 109 mm
Weight: 11.7 ln/ 5.3 kg
