IPT-10G2-SDI-R0

3G-SDI to SMPTE ST 2110 Video and Audio IP Encoder with Hitless Switching

IPT-10G2-SDI is designed to bridge 3G-SDI video sources into SMPTE ST 2110 networks.

The IPT-10G2-SDI receives baseband video plus up to 8 embedded audio channels over 3G-SDI, then encapsulates the data for output as SMPTE ST 2110 over 10 GigE.
Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream.
Alternatively stereo audio can be fed into the stream from the dual RCA inputs.

2x 10 GigE SFP+ cages are provided, allowing "hitless switching" (ST 2022-7) redundancy protection for critical contribution and transmission environments.

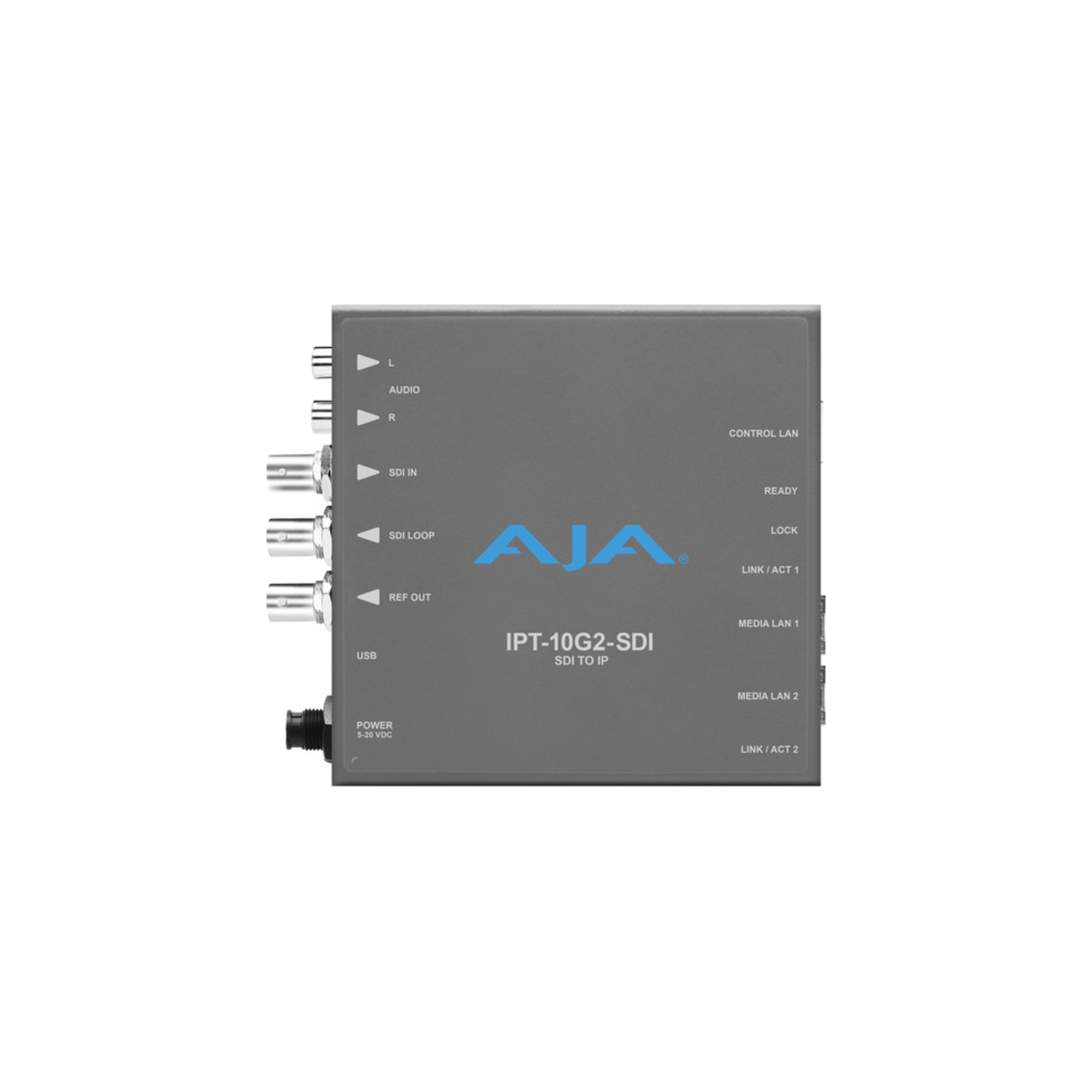

IPT-10G2-SDI Mini-Converter transmits a SMPTE ST 2110 essence derived from an incoming 3G-SDI input source.
Providing two SFP+ cages for redundancy protection via "hitless switching", IPT-10G2-SDI is rugged, quiet and fanless.
AJA Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

Key features:
SMPTE ST 2110 audio, video transmitter
Rugged, quiet, fanless design
3G-SDI Transmitter with 1x full size BNC input up to 1080 60p, 4:2:2, 10-bit, YCbCr
Full 10-bit pixel processing pipeline
Embedded SDI audio input (up to eight channels)
2x RCA analog audio input
2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 "Hitless Switching") with status light
1x 1 GigE RJ-45 socket for control LAN with status light
Reference Out connector to provide PTP locked sync to baseband sources for lowest latency
Frame sync to retime baseband sources that are not locked to PTP
Web browser accessible setup and control interface, via built-in web server
1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
NMOS and Ember+ support
Customizable control with AJA REST API
Five year warranty
