KBD

Name: KBD
Brand: BirdDog
SKU: KBD
Price: 2543012 NGN
Availability: InStock

BirdDog

EAN: 9354873001055

PTZ Camera Controller with NDI, VISCA, ONVIF, RS-232, RS-422 Protocols

go to the technical sheet

₦ 2,543,012.00

₦ 2,365,592.35 VAT excl.

Available 3 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

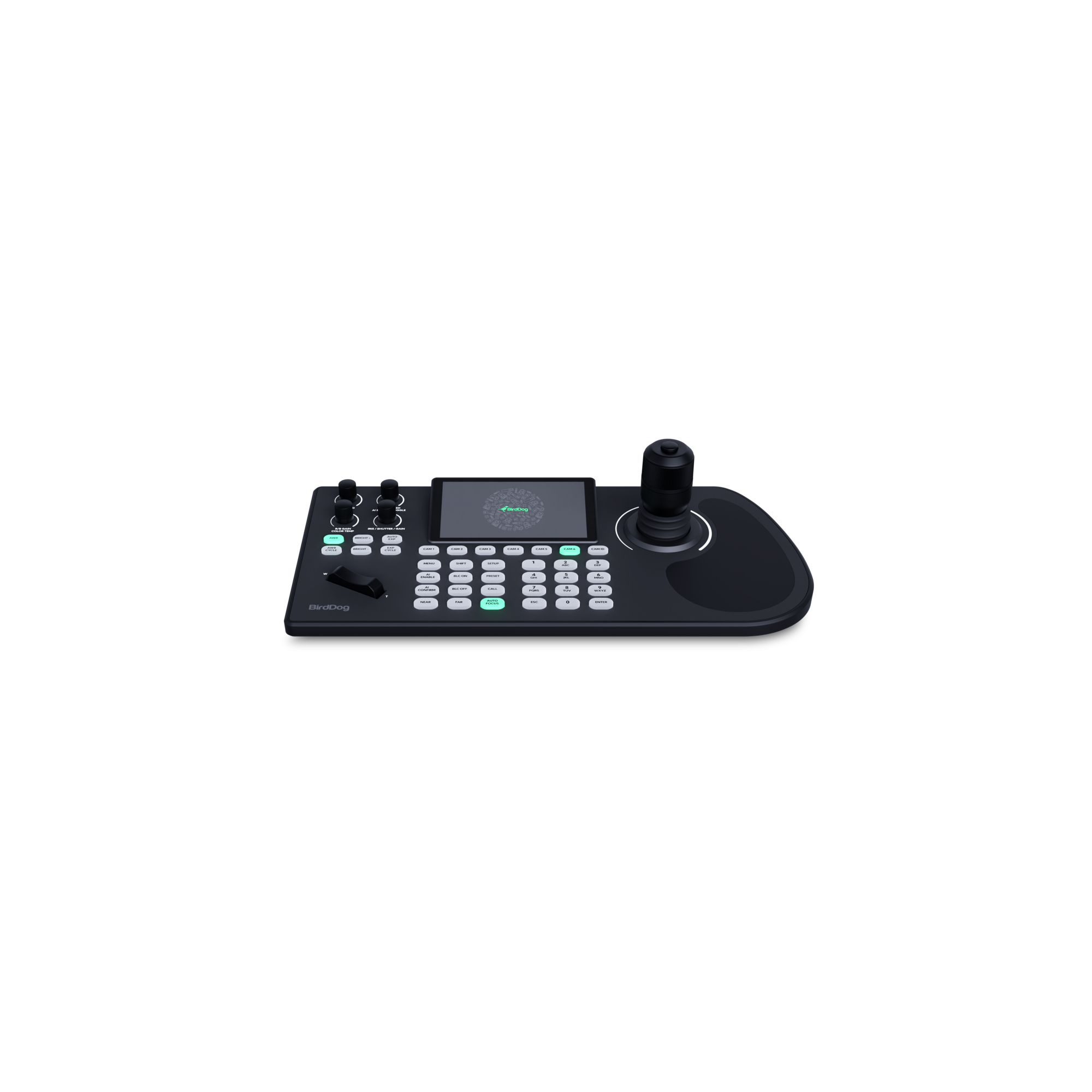

BirdDog KBD Controller for PTZ Cameras with NDI, VISCA, ONVIF, RS-232, RS-422 Supports/Protocols

KBD is the ultimate tool for PTZ camera operators, offering a rugged, ergonomic design built for long-term comfort and precision.
Its large screen allows you to monitor up to four camera feeds or focus on a single full-screen view, giving you complete control at a glance.
With streamlined access to essential functions like camera pairing, switching, and configuration, it eliminates unnecessary distractions, letting you work smarter and faster.
Engineered for modern workflows, KBD intefrates seamlessly with platforms like TriCaster and vMix, featuring tactile controls and built-in tally borders for smooth transitions.
Crafted with ocean-bound plastics and recyclable aluminium, it reflects a commitment to sustainability while delivering professional-grade performance.
Refined by user feedback, it's the perfect balance of power, comfort, and eco-conscious innovation.

All-Day Comfort
Built with a rugged, ergonomic design, including a hand-rest area and tactile controls for seamless, extended use.

Expanded Screen Control
Monitor up to four cameras simultaneously or focus on one in full-screen mode.
Pair and switch cameras with a single press.

Effortless Camera Settings Sync
An industry first! Copy settings from one X Series camera to another in seconds.

Ultimate Connectivity
Supports NDI, VISCA, ONVIF, RS-232, and RS-422, ensuring versatility across workflows.

Super-Fine Control Mode
Switch to 'fine-tune' mode for 10x joystick sensitivity, perfect for precise, on-air reframing with ease.

Integrated Tally Bordes
Effortlessly switch cameras with tactile feedback and built-in tally borders showing live feeds directly on the keyboard, integrated with TriCaster and vMix.

Streamlined Access
No more menu diving!
Access essentials like pairing, witching, and setup instantly for a user-friendly experience.

Affordable Innovation
Refined through user insight, KBD offers unmatched precision, comfort, and eco-conscious design-all at an accessible price.

Camera Control
________________________
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct button
Manual Exposure: Toggle Dial Adjust. Brightness / Shutter / Gain / Iris
Auto White Balance: Direct button
Manual White Balance: Toggle Dial Adjust. R-Gain, B-Gain, Color Temp.
Auto Focus: Direct button
Manual Focus: Direct button (Near/Disable)
Zoom ring on Joystick: Adjustable
Programmable Trigger on Joystick: One-Push Focus, AI Tracking, One-Push AWB
AI Camera mode control: Camera Dependent, supported
Copy / Paste Camera settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access
________________________
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu button / interaction with joystick

Display
________________________
Display Resolution: 1280 x 720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video, Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light / Dark Mode: Yes

NDI Support
________________________
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiviewer: NDI HX3, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI), Superfine (BirdDog Specific)

Setup / Configuration
________________________
WebUI: BirdUI for setup and firmware updates
Light / Dark Mode: Yes
API-based Camera Selection: Yes

Serial Connections
________________________
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector

Mechanical
________________________
Joystick tipe: 4D (Integrated Trigger button)
Keys: 37 Keys, Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs, Press Button, Graduated, 360° adjust
Zoom Rocker: Spring loaded, adjustable
Dimensions: 377 x 177 x 118 mm , 14.84 x 6.96 x4.64 in (LxWxH including Joystick)
Construction Material: Aluminium, OBP Ocean-Bound Plastic
Integrated Carry Handle: Yes
Operating Temperature: -10°C - +55°C , 14°F - 130°F
Storage Temperature: -10°C - +55°C , 4°F - 130°F
Operating Hmidity: 20% - 80% (Non-condensing)
Storage Humidity: 0% - 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: less than or equal to 5W
Packaging Dimensions: 390x 215 x 165 mm , 15.35 x 8.46 x 6.49 in
