BM-U245HDR

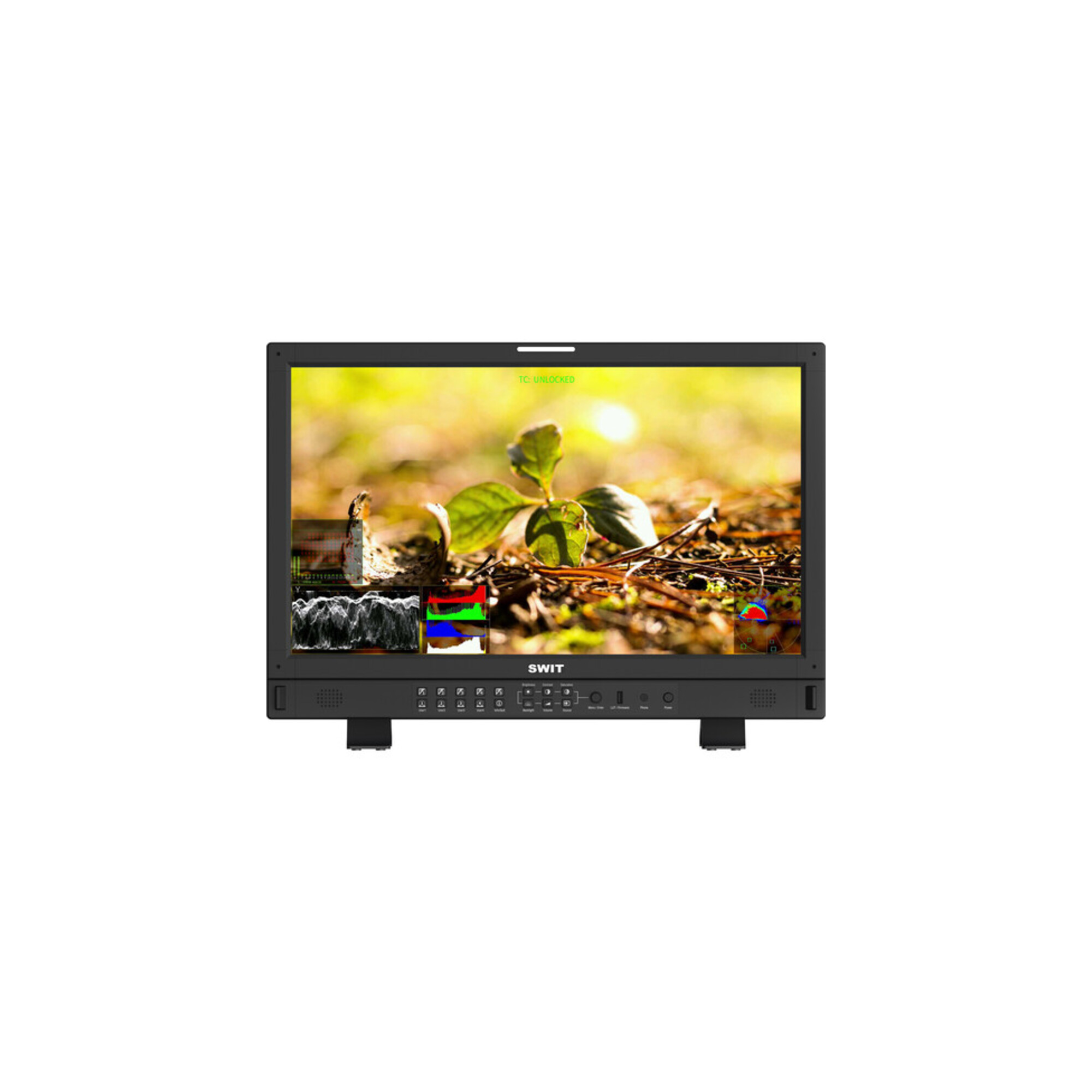

Direct and control the image quality of your next film or broadcast production with the 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor from SWIT, thanks to its 3840 x 2160 LCD panel display with video assist and multiview functions. The screen has a 178° viewing angle, 1000:1 contrast ratio, and 1000 cd/m² brightness. One HDMI 2.0 input and four SDI inputs and outputs can support 4K or 8K video in single-link, quad-link, and mixed inputs multiview. One input source can be copied to four windows to display different HDR/SDR and color gamuts simultaneously for easy comparison.

Payload ID identifies the input video's HDR/SDR EOTFs, color gamut, input range, color space, and color depth automatically. The monitor supports the upload of 3D LUTs via a USB Type-A port for consistent color correction. Other video assist functions like focus assist, vectors, and eye pattern increase the efficiency of your image quality observation. Control over the monitor can be achieved via the RS-485 input with IP control or using the front panel buttons. Both an AC and a DC input can provide power to the device, or the included V-mount battery plate or optional Gold mount battery plate. An included power adapter and desktop feet make setup on your next project quick and efficient.

23.8" UHD High-Bright LCD
The 23.8" IPS panel features 3840 x 2160 UHD native resolution, 10-bit color, 1000 cd/m² a high-bright backlit LED display, and a 1000:1 contrast ratio.
UHD 4K/8K Interfaces
The display features four 12G-SDI inputs, four 12G-SDI loop outputs with no latency, and internal 18-bit signal processing, and it supports single-link 4K, quad-link 4K, and quad-link 8K input. It also provides an HDMI 2.0 input and 12G-SDI via fiber input using an optional SFP adapter.
Mixed Inputs Multiviewer
The display allows for independent 12G/6G/3G/HD-SDI or HDMI 1.3/1.4/2.0 mixed inputs in multiview, and it can display waveform, vector, audio meters, EOTF, and color gamut for each input.
HDR/Color Gamut and Payload ID
Color options include gamma 1.0/1.8/2.2/2.4/2.6 or HLG/PQ/Slog3 HDR selection, BT.709, DCI-P3, and BT.2020 selection. It features a payload ID auto-setting input range for color space, HDR/SDR, color gamut, color depth, and more. It supports multi-color gamut, EOTF Viewing, one input source copied to four windows, and simultaneous display of different HDR/SDR and color gamuts.
3D LUT Support
The monitor supports 3D LUTs and has built-in calibration software, supporting X-rite i1 and JETI Specbos calibration tools, allowing tools to plug directly into the USB port for auto calibration. You can import your own 3D LUTs, and it also includes built-in de-log LUTs including Log-C, S-log2, S-log3, C-log, V-log, and RedLogFilm LUTs to convert Log video to 709 SDR or HLG/PQ HDR.
Image Tools
The monitor features multiple built-in image tools, including waveform, vectorscope, focus assist, R/G/B/mono, false color, zebra, H/V delay, freeze, customizable aspect ratios, and user-defined markers. It also supports TSL 3.1/4.0 UMD and text TALLY display, GPI control, web server IP control, and USB firmware updates.
Audio Patterns
You can display up to 16-channel audio level meters and select any two channels to output via 3.5mm socket or speakers. It also supports Lissajous and 5.1+2 surround patterns.
