ATEM 2 ME Advanced Panel 40

Name: ATEM 2 ME Advanced Panel 40
Brand: Blackmagic
SKU: ATEM 2 ME Advanced Panel 40
Price: 20869834 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716007862

Digital Video Mixer - Advanced Control Panel 2 x M/E Bus (Panel 40)

go to the technical sheet

₦ 20,869,834.00

₦ 19,413,799.00 VAT excl.

Available in 11 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

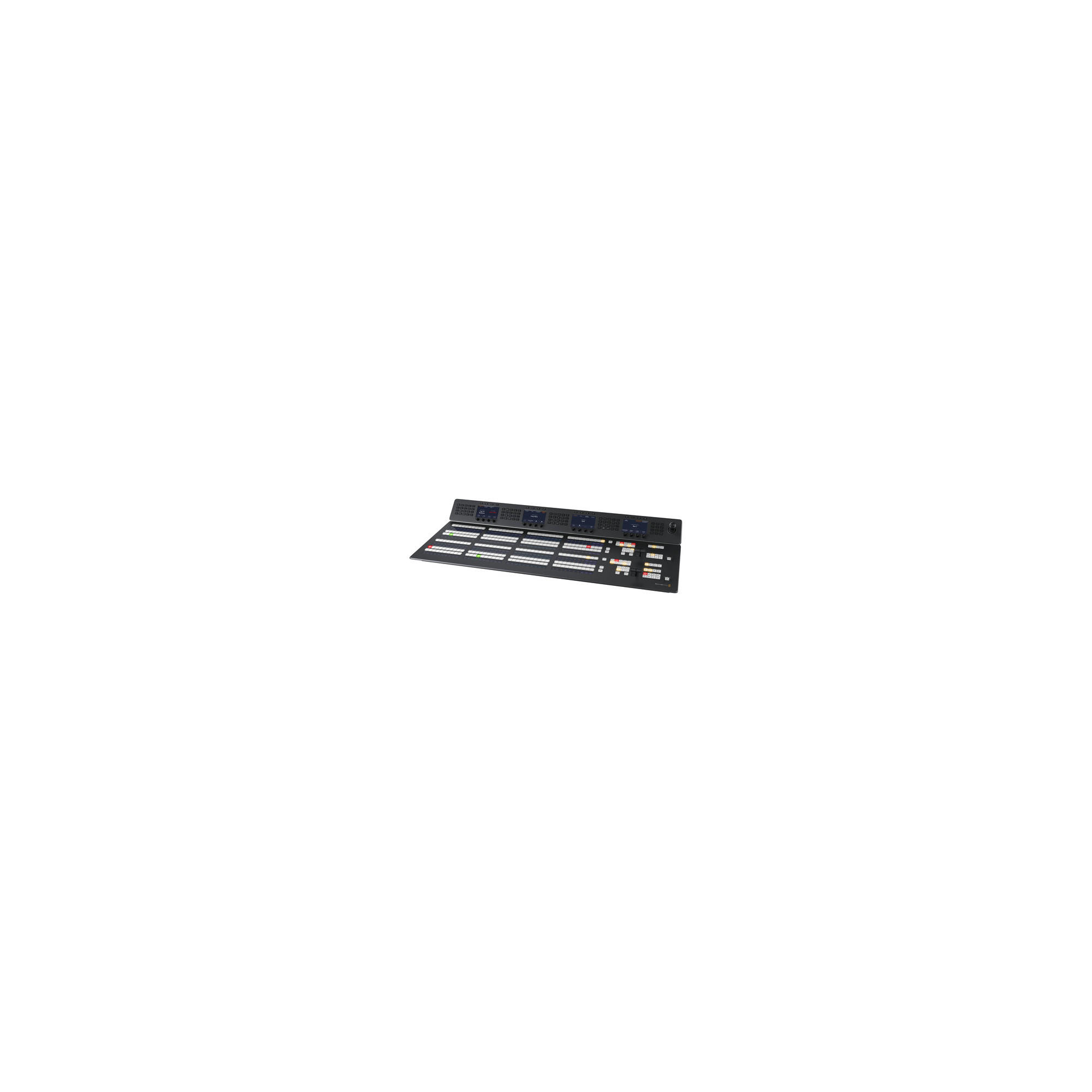

Blackmagic Digital Video Mixer - Advanced Control Panel 2 x M/E Bus (Panel 40)

The 2 M/E model features 2 M/E rows with 40 input buttons per row, plus 4 independent system control LCDs.
Each row can control up to 4 M/Es on larger switchers.
All input buttons on each row have LCDs for button labels.
Each row has its own select bus.

For the ultimate in professional control you can add an ATEM Advanced Panel.
Although ATEM Constellation can be controlled from the software control panel, the ATEM Advanced Panel is much faster.
You can also choose the ATEM Micro Panel which is a more portable and affordable option.
ATEM Micro Panels take the power of ATEM Constellation to the next level by giving you more control and allowing you to apply more complex effects.
The broadcast quality buttons, knobs and T-bar fader make it easy to use with quick access to all the switcher features.
Imagine using the 4 M/E model and having all your M/Es available at once, with a button for each individual SDI source!

Mixers Video Live Video Equipment Gimbal

Middle Things

Middle Remote

₦ 3,346,796.00 VAT included

Available in 19 days

Skaarhoj

Quick Pad - Blue

₦ 1,753,646.00 VAT included

Available in 11 days

Middle Things

APC-R

₦ 1,170,566.00 VAT included

Available in 14 days

Download

Manuale

Download (83.18MB)

Connections
Ethernet: 4 x BASE-T 10/100/1000 with loop out for adding control panels or computers
Software Updates: 1 x USB-C for firmware updates

General
Effects Banks: 2
Direct Crosspoints: 40
Additional Crosspoints: 80
Crosspoint Buttons: Tri-color LED
Crosspoint Labels: 6 rows of LCD, 24 characters
On Air Indicators: 12
Power Lights: No
DSK Transition Switches: 4 x Auto, Cut, Tie/Preview
Transition Preview: 2
Transition Duration: On main menu
Menu LCD Displays: 4
Menu Management: 4 sets x 20 buttons
Macro Buttons: 2 x 40
Transport Buttons: 8
Destination Buses: 2
Source Select Buses: 2
Transition Stick: 2
Tri-Axis Joystick: 1
Numeric Keypad: 1

Software
Software Applications: ATEM Software Control

Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later
Windows 10 and 11

Power Requirements
Input Voltage: 2 x 100-240V AC Internal
Redundant Power Supply: Yes
Power Consumption: 160W

Environmental Specifications
Operating Temperature: 0° to 40°C
Storage Temperature: -20° to 60°C
Relative Humidity: Up to 95%
