ATEM Television Studio 4K8

Blackmagic Ultra HD production switcher, 8 12G-SDI inputs, 10 12G-SDI outputs - ATEM Television Studio 4K8

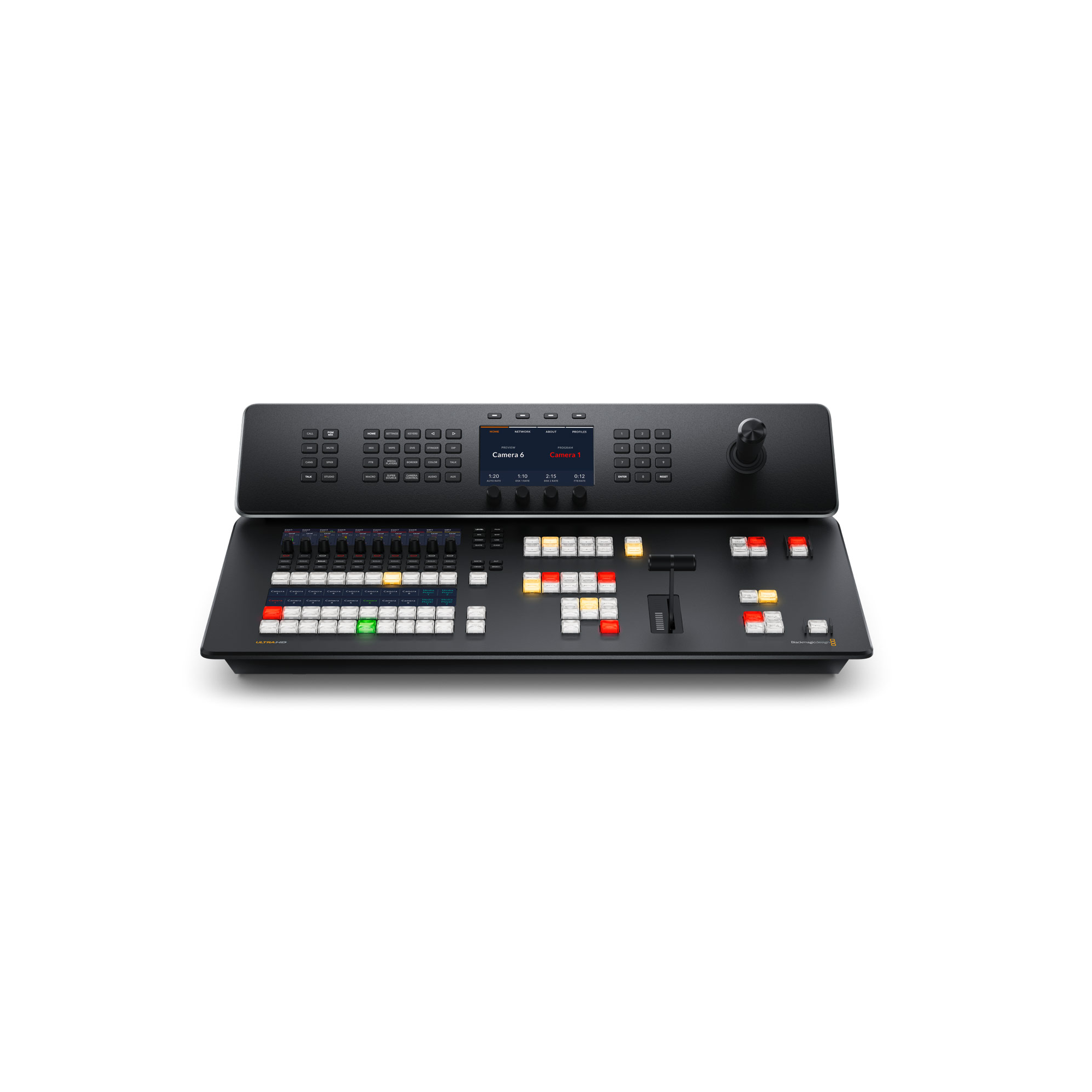

The new ATEM Television Studio is a professional live production switcher integrated into a broadcast control panel, super portable and suitable for high-end work.
It is therefore ideal for locations that do not have rack cabinets or the availability of a mobile control vehicle.
It boasts eight standards-converting SDI inputs, two auxiliary outputs, four chroma keys, two sub keys, SuperSource, two media players and tons of transitions. It also offers numerous TV studio features such as streaming hardware, recording, audio mixer, talkback, multiview and optional shared internal network storage.
There's even an ISO template that records all eight inputs for editing purposes!

Powerful Ultra HD switcher for live production, similar to the HD model without ISO recording, but with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recording, 4-port 10G Ethernet switch and much more.

The panel houses buttons for selecting sources, triggering transitions, and setting video effects.
The buttons have the same high-quality workmanship as high-end broadcast switchers, and you can also count on a lever for manual control of transitions.
The panel incorporates an innovative section to control the audio mixer with level indicators in a dedicated LCD.

With eight 3G-SDI video inputs, you can connect as many cameras to ATEM Television Studio HD to obtain alternative angles of the performance.
Cameras equipped with SDI outputs such as the Blackmagic Studio Camera or Blackmagic URSA Broadcast G2 offer much higher quality thanks to excellent low-light performance and professional lenses.
All video sources resync to the switcher even if they have different video standards.

ATEM Television Studio integrates an independent DVE that allows you to reposition graphics and create picture-in-picture compositions.
The quality is extraordinary, with real-time repositioning and resizing.
DVE lets you customize PiP tiles with 3D borders, shadows and highlights, and add effects like Squeeze, Swoosh and Push into DVE transitions to make your production even more immersive.
You can combine DVE transitions with graphics of your choice to create custom wipe transitions.

ATEM Television Studio's internal Fairlight audio mixer allows for sophisticated live mixing, with enough channels to accommodate all SDI inputs, plus additional XLR, RCA and MADI inputs!
Each channel boasts high-performance 6-band parametric EQ, compressor, limiter, expander, noise gate, levels and panning.
You can choose to mix the input channels at the same time or set the video sources to Audio Follow Video function.

° Integrated multiview with 16-panel screen
ATEM Television Studio offers professional multiview that shows all video inputs, preview and program on an SDI or HDMI monitor.
A tally border surrounds the on-air camera pane, and each of the 16 panes displays custom labels and audio levels in a fully customizable layout.
In multiview you can also use one of the panes to monitor recording, streaming and the audio mixer!
