E1-S

Name: E1-S
Brand: Kiloview
SKU: E1-S
Price: 575930 NGN
Availability: InStock

Kiloview

EAN: 6970631320041

Wired Video Encoder - HD/3G-SDI

go to the technical sheet

₦ 575,930.00

₦ 535,749.00 VAT excl.

Available 4 unit in 4 Days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

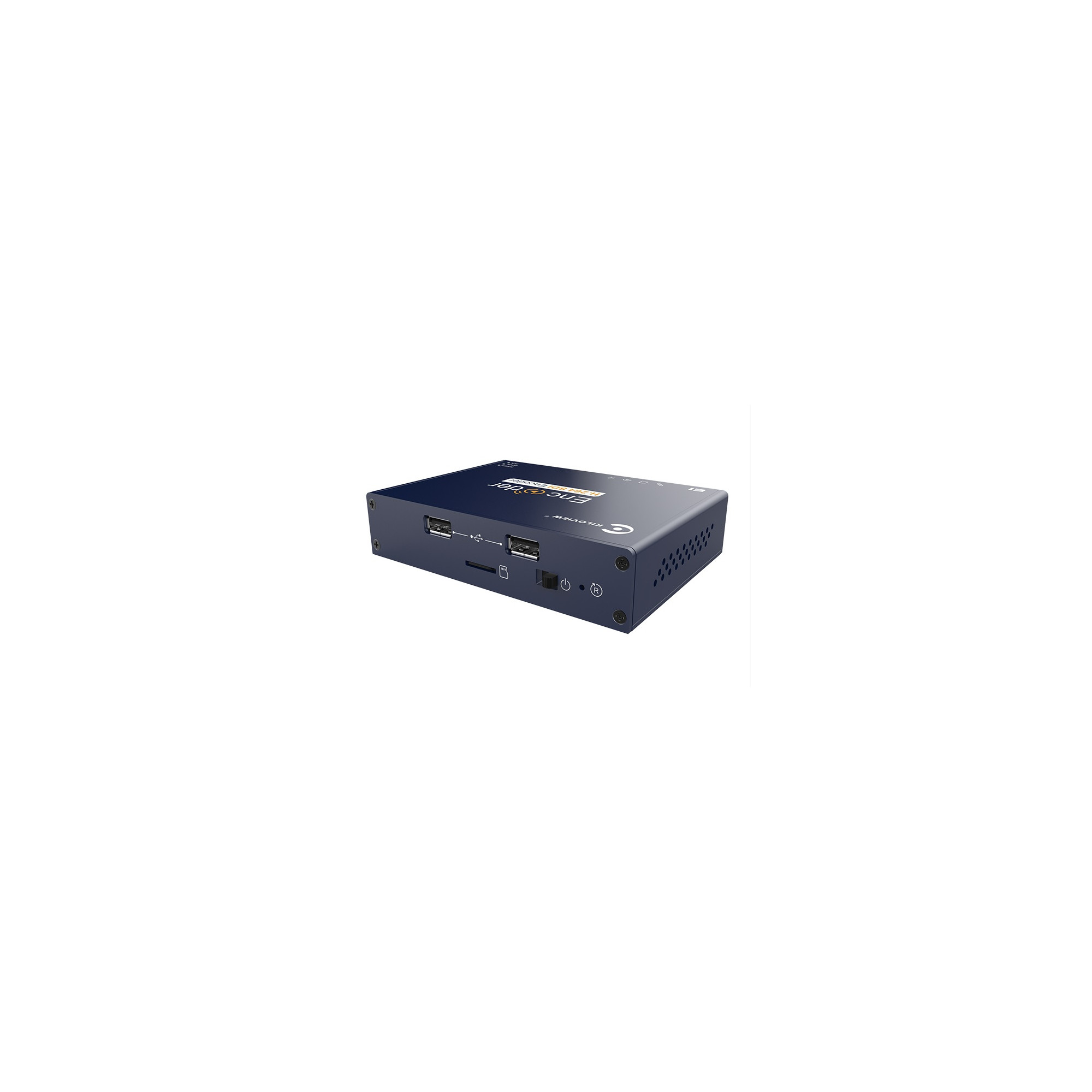

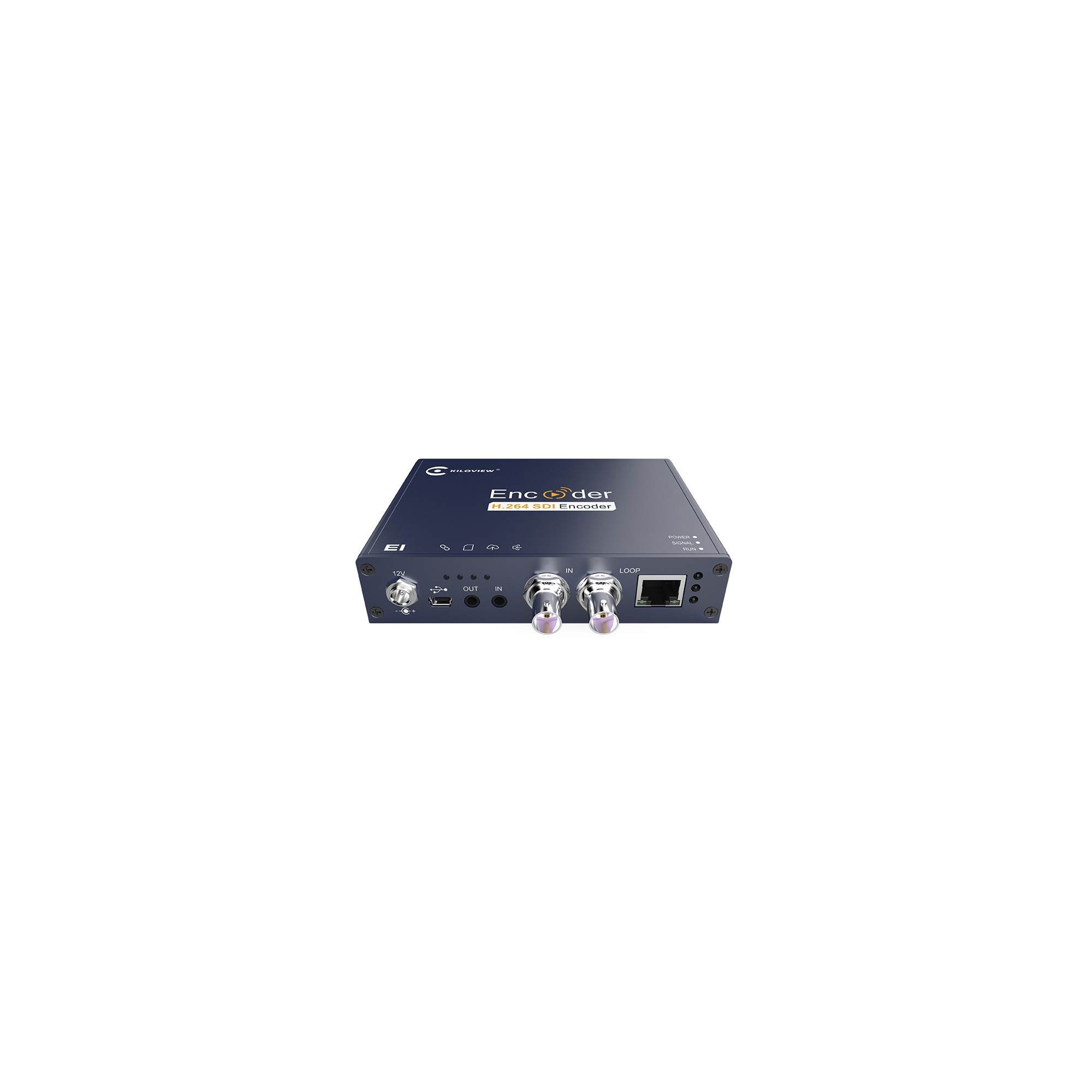

Kiloview E1-S - H.264 Wired Encoder with HD/3G-SDI Connection

Main Features
____________________________
° Supports 3G-SDI level A and B
° Supports encoding of 2 audio channels selectable from 8 embedded channels
° Aable to convert an SDI source with embedded audio and simultaneously provide loop video output
° Maximum resolution FullHD 1080p
° H.264 encoding
° Live platform support
° Video latency less than 68ms
° Designed to work 24/7
° Video quality is guaranteed even with very low bitrates and very low latency
° Supports SRT protocol as well as RTP/RTSP/RTMP/HLS/TS for video streaming on many platforms
° Supports dual streaming on different platforms, with primary resolution at 1080p60 and secondary 720p60
° MicroSD card slot, excellent for storage and recordings
° USB slot compatible with WiFi adapters for connection to the network even wirelessly

Download

Datasheet

Download (1.34MB)

Interface
____________________________
Video input: 1x BNC SDI
Video looping out: 1x BNC SDI
Analog video input: 1x3.5mm
Analog video output: 1x 3.5mm
Wired network: 10/100M self-adaptive Ethernet
Wi-Fi
USB: 1x USB 2.0 Type-A - 1x USB 2.0 Mini-USB

Signal and formats
____________________________
SDI signal standard: 0,8Vpp
SDI impedance: 75 ohm
SDI coupling way: AC
SDI signal formats:
&emsp, HD-SDI(1.485Gbps)
&emsp, 3G-SDI(2.97Gbps)
Supported video formats:
&emsp, 1080p23.98/24/25/29.97/30
&emsp,1080p50/59.94/60
&emsp,1080i50/59.94/60
&emsp,720p23.98/24/25/29.97/30
&emsp,720p50/59.94/60,576i, 480i
&emsp,525i(480i) / 625i(575i)
Audio:
&emsp,SDI unbind audio (stereo)
&emsp,Analog Line-in/Line-out (stereo)

Encoding
____________________________
Video encoding: H.264/AVCHigh profile (up to level 5.1), compatible with Main profile and Baseline
Audio encoding: AAC/MPEG4-Audio, G.711(u-Law/a-Law) [other algorithm can be extended]

Encoding delay: < 67ms
Video encoding bitrates: 256Kbps ~ 25Mbps adjustable

Audio encoding bitrates: 32Kbps ~ 512Kbps : AAC64Kbps : G.711

Transmission protocols
____________________________
RTP / RTSP (compatible RTP over RTSP, RTSP HTTP Tunnel and RTSP Multicast) RTMP pushing, RTMP TS over UDP, HLS
Private Protocol: KMP (KILOVIEW Media Protocol)
Control/management protocol: Onvif 1.1/2.0 KCP (KILOVIEW Control Protocol)
WindTalk compatible with(private)protocols

Weight: 380g
