ATEM173S-CO
Seetec
₦ 1.762.720,18 VAT excl.
Professional monitoring tools such as focus peaking, marker, monochrome, R / G / B only, pixel-to-pixel mapping and image flipping are integrated to analyze the video and ensure a correct image. A V-shaped mounting plate is integrated into the rear for field power when you are away from a power source, and a separately available Gold mounting plate is also available. There is a VESA mounting pattern on the back for alternative mounting options.
Characteristics of the image
- Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Peak assisted focus
- False color
- Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
-Display rotation (0, 90, 180, 270 °, H / V mirror)
- Check field (red, green, blue, mono)
- Image block
- Zoom in
- Pixel to pixel
-Central indicator
-Screen indicator (80, 85, 90, 93, 96%, 4: 3, 2.39: 1, 2.35: 1, 1.85: 1)
- Line color (red, green, blue, white)
In the box

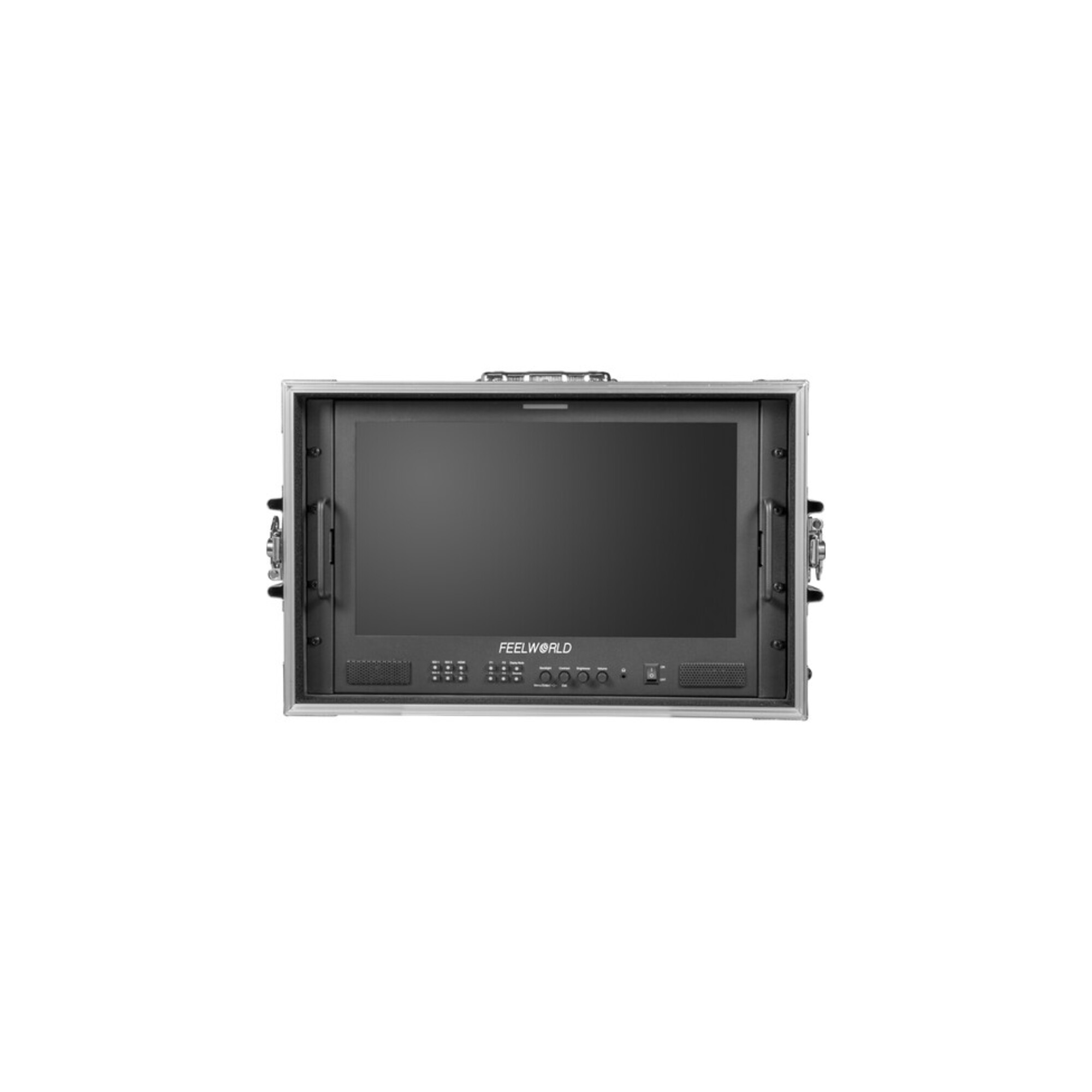

FeelWorld 17.3 "Live Stream HD Broadcast Director Monitor (hand case)
Power adapter
V-mount battery plate
Mini HDMI cable
SDI cable
Solar hood
Transport case
1 year limited warranty
CV374
Screen
Panel type: IPS type LCD
Display Size: 17.3 "/ 43.9cm
Resolution: 1920 x 1080
Aspect Ratio: 16: 9
Viewing angle
Horizontal: 178 ° (89/89)
Vertical: 178 ° (89/89)
Touch screen: No
Maximum brightness: 300 cd / sqm
700: 1 contrast ratio
Dot density: 0.1989 x 0.1989 mm
HDR Compatibility: Yes
Pixels Per Inch (ppi): 127 ppi
Image Controls: Anamorphic De-Squeeze, Blue Only, Control Range, False Color, Focus Assist, Focus Peaking, Green Only, Rotate Image, Red Only, Screen Indicators, Split Screen in Half, Split Screen to a quarter
I
video:
4 BNC inputs (3G-SDI)
4 BNC outputs (3G-SDI)
1 HDMI type A output
Audio: 1 x 1/8 "/ 3.5mm headphone output
Integrated speaker: None
Power I / O
1 x barrel input (12 VDC)
1 x 4-pin XLR input
Other I / O
1 x GPI input (RJ45) 1 x GPI output (RJ45)
1 x RS-485 input (RJ45)
1 x USB 2.0 input (USB type A)
Media / memory card slot: None
Wifi: None
Format support
Video format
SDI (8 bit)
DCI 2K: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
DCI 2Ki: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
1080i: 60 / 59.94 / 50
1080PsF: 24 / 23.98
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p
480p
HDMI
1080p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98 1080p
: 60 / 59.94 / 50
720p: 60 / 59.94 / 50/30 / 29.97 / 25/24 / 23.98
576p
576i
480p
480i
Gamma curve: Rec709
Power
DC input power: 12 VDC
Battery Type: 1 x V Mount (Interchangeable Mount)
Power Consumption: 22W
Assembly
Mounting hole pattern: 100 x 100mm, 75 x 75mm
Environmental
operating temperature: 14 to 122 ° F / -10 to 50 ° C
Storage temperature: -4 to 140 ° F / -20 to 60 ° C
General
Dimensions: 16.7 x 11.7 x 0.9 "/ 42.5 x 29.6 x 2.3cm, excluding case
The weight: 6.26lbs / 2.84kg, excluding case
