16-1801

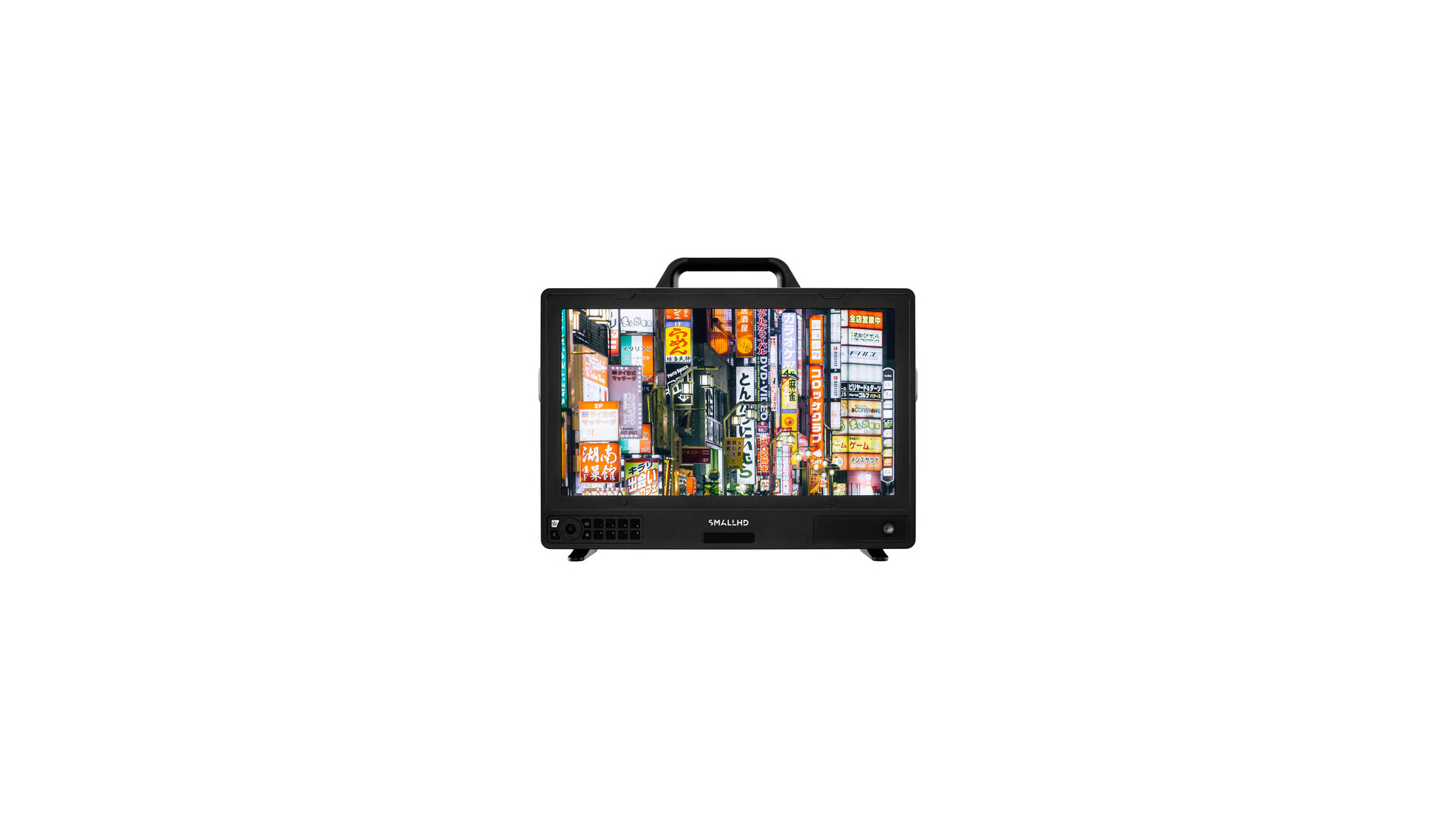

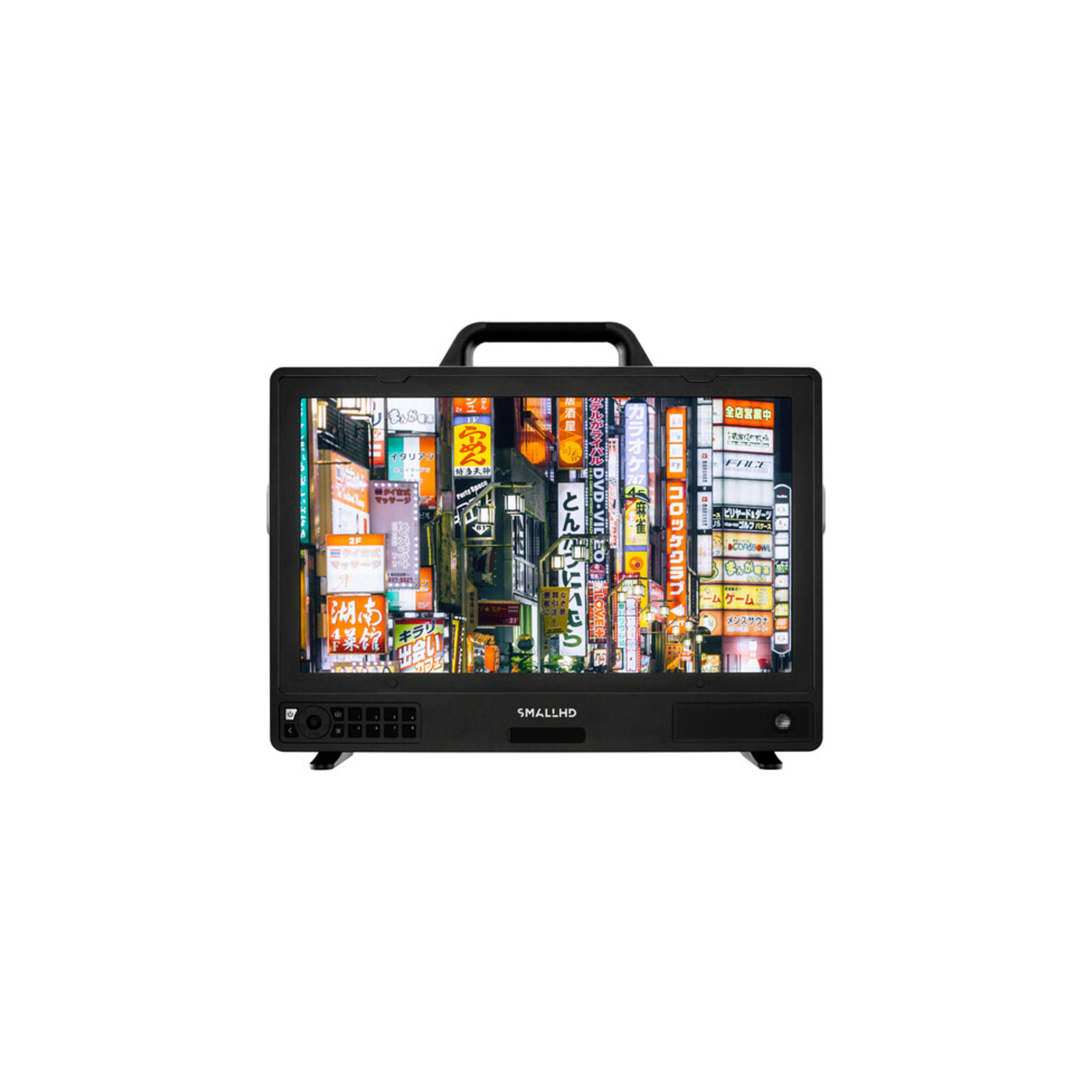

Add a professional UHD 4K monitor to your DIT station, video village, or studio with the Cine 18" 4K High-Bright Production Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp 4K image with 3840 x 2160 resolution, 10-bit (8+2 FRC) color intelligence, 1300:1 contrast ratio, and 1100 cd/m² brightness for use outdoors.

The edge-lit display features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1, which features a full-featured UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.

The monitor can be mounted using the VESA pattern on the back or by 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 4-pin XLR input or via a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.

Key Features
18.4" UHD 4K monitor
3840 x 2160 resolution
1100 cd/m² brightness
1300:1 contrast ratio
Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
One HDMI 2.0 input
SD card slot for 3D LUTs
One RJ45 Ethernet port
One RJ45 GPI port
1/4"-20 mounting threads on top and sides
SmallHD OS4.1
Internal calibration wizard
Color pipe color-space formatting
Settings dashboard for easy access to common settings
Preconfigured pages
Page tabs
Customizable false color overlays
Customizable 4K waveform with region-of-interest highlighting
Improved function buttons
Pixel zoom, focus assist, peaking
Total UI overhaul
Power Options
One 4-pin XLR 12 to 24V, 12A input
Two 2-pin LEMO 12V, 2A outputs
One USB Type-A 5V, 2.4A output
One USB Type-A 5V, 1.5A output
One USB Type-C 5V, 1.5A output
Separately available V-mount or Gold mount battery plates
XLR and battery options are hot-swappable
