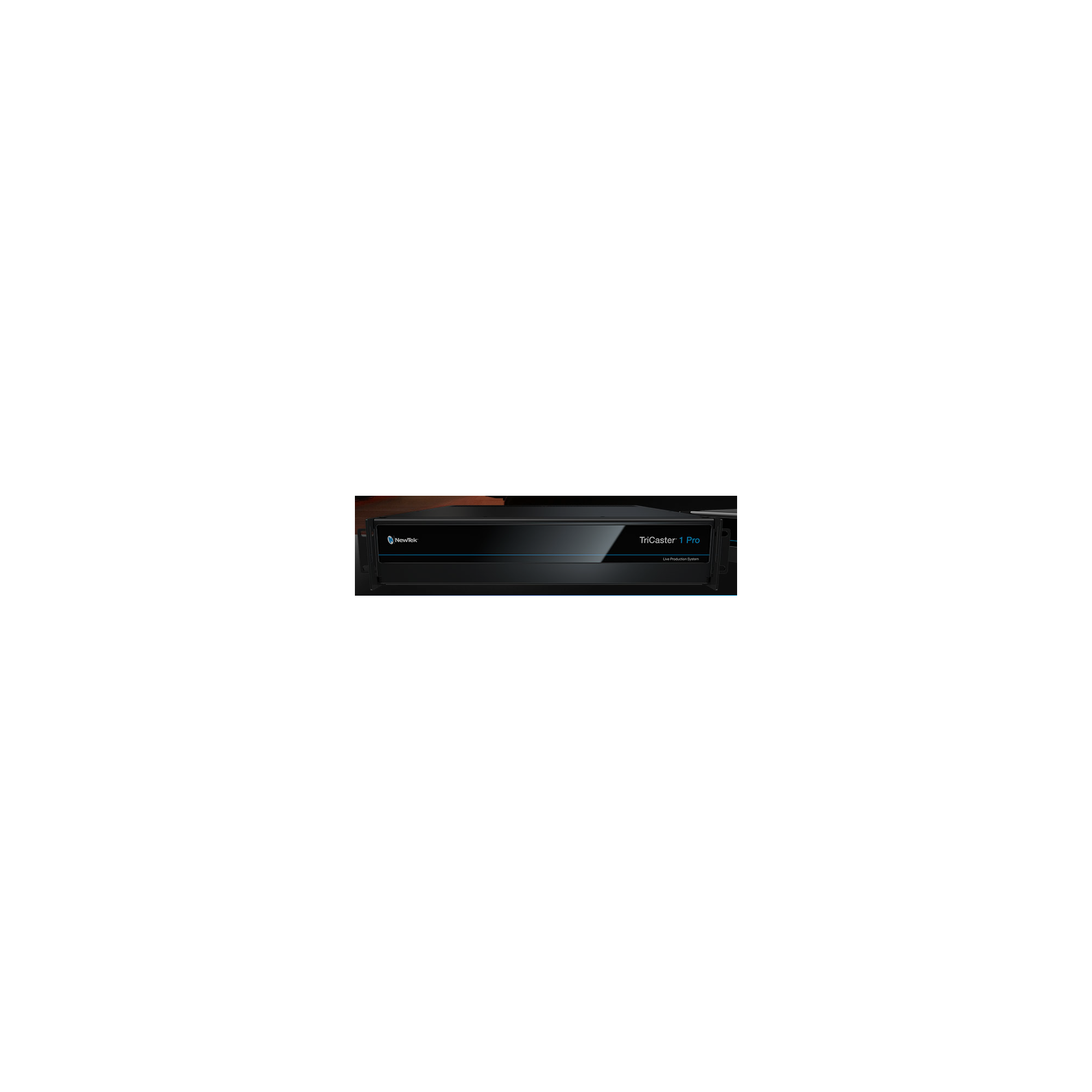

Tricaster TC1 Pro

Video Input: 16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input: 16 x IP video inputs via NDI, resolution-independent, with support for key and fill

SDI Video Input:
4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
1080p: 59.94, 50, 29.97, 25
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25
576i 50
480i 59.94

PTZ: Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX: Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output: Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI

Network Video Output:
IP video output via NDI, optionally configurable for:
4 x independent video mix outputs
1 x 4K UHD video mix output

SDI Video
Output: 4 x 3G/HD/SD-SDI connections, optionally configurable for:
4 x independent 3G/HD/SD video mix outputs
1 x 4K UHD video mix output via 3G-SDI quad-link grouping

Stream Output: 3 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive

Multiviewer Output:
3 x multiviewer outputs supporting standard display resolutions
1 x DVI user interface with multiviewer
1 x HDMI multiviewer
1 x DisplayPort multiviewer

Mix/Effect Buses (M/E):
4 x M/E buses supporting video re-entry
1 x Mix/Effect channel per bus with support for up to 4 sources
4 x KEY layers per bus
9 x memory slots per bus
1 x PREVIZ configuration and preview bus

DSK Channels: 4 x DSK channels

Media:
5 x media players
2 x DDR
2 x GFX
1 x Sound
15 x media buffers
10 x animation buffers
5 x graphic buffers
30 x clip players (available for use as transitions or media depending on function)

Keyers:
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
16 x input keyers
4 x media player keyers
4 x M/E keyers
1 x PREVIZ keyer
15 x buffer keyers

COMPs:
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per bus

Virtual Sets: Integrated LiveSet technology with 30+ live virtual sets and box effects included

DataLink: Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

Storage:
4TB internal media storage
2 x 4TB 7200 RPM, 128MB Cache, SATA 6.0Gb/s, 3.5" Internal Hard Drive
Capacity varies by format, resolution and file specification
Supports recording to external storage via USB 3.0 and eSATA
Supports shared storage integration and third-party partner solutions

Grab: Grab full-resolution, deinterlaced still images from external video sources and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

Audio Mixer: Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing

Local Audio Input:
4 x SDI embedded
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4" stereo pairs (Line)

Local Audio Output:
4 x SDI embedded
1 x Balanced XLR stereo pair
1 x Balanced 1/4" stereo pair
1 x Stereo 1/4" (phones)

Processing:
Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz

Throughput Latency: -1.0 - 1.5 frames

System Drive: 120GB SSD

NIC:
1 x 10 Gigabit Ethernet
1 x 1 Gigabit Ethernet

USB:
1 x USB 3.2 Gen 2 Type-C
7 x USB 3.2 Gen 1 Type-A

System PhysicalTriCaster 1 Pro:
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
48.3 x 8.9 x 49.7 cm with rack ears attached
