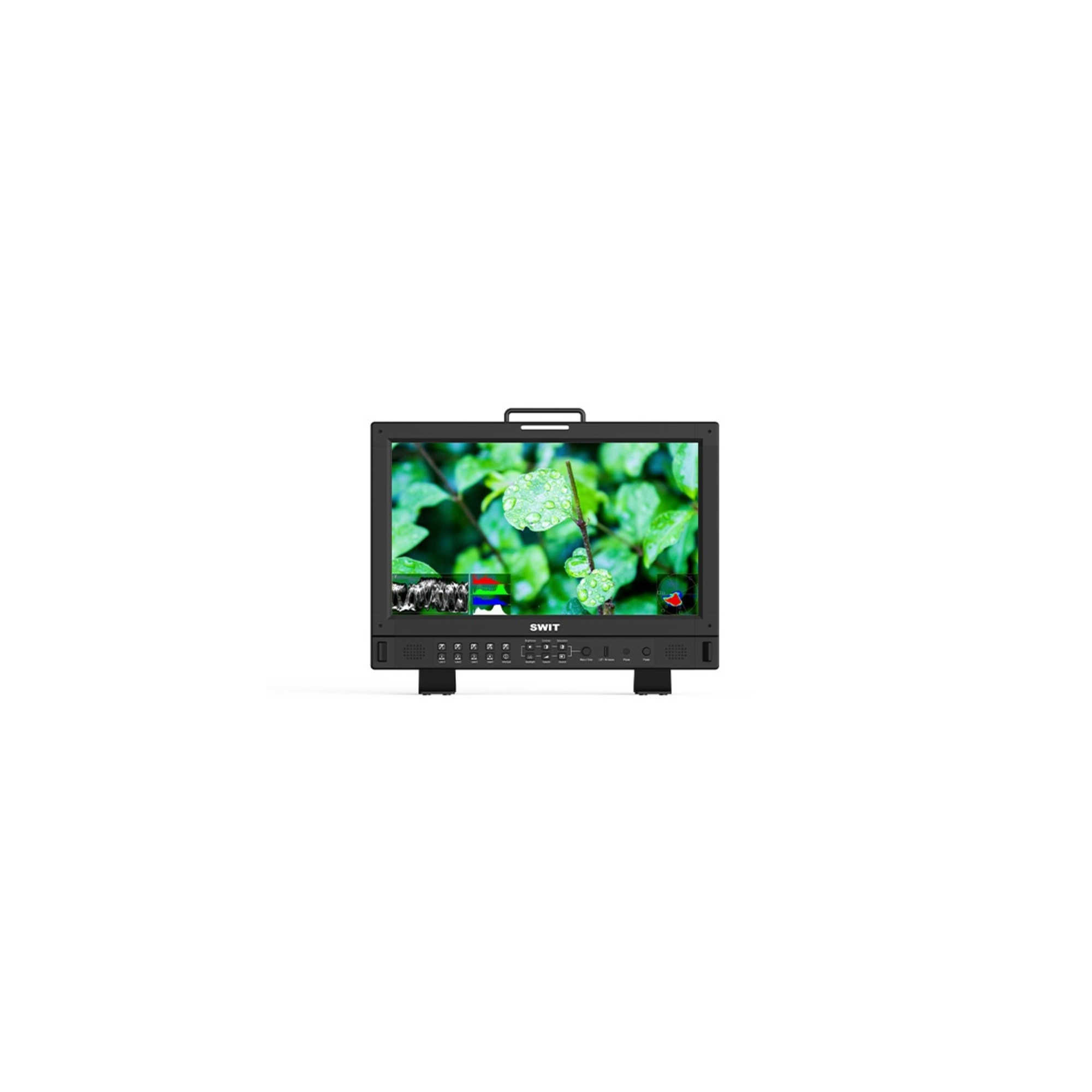

BM-U175

17.3 inch LCD panel, 3840x2160 resolution
12GSDI 4-in 4-out, 8K ready input, HDMI2.0 input
12GSDI via SFP fiber input (optional)
ST2110 IP via SFP fiber input (optional)
3DLUT Self-calibration without PC
Audio / Video 0 latency for lip sync
EOTF HDR HLG / PQ / S-log3
Automatic setting of payload ID
Integrated Delog LUT multi-camera
User 3DLUT upload via USB
Waveform / Vector / Histogram
Focus Assist / False Color / Zebra
16-channel / Lissajous audio meters
Remote control of the IP web server
TSL UMD display and TALLY text
USB firmware update
19 inch rack mountable, 7U height

BM-U175 adopts 17.3 inch 8bit + 2FRC LCD panel, 3840 × 2160 UHD resolution, 300 nit LED backlight, 800: 1 contrast, DCI-P3 91.5% color gamut. The viewing angle is H178 ° / V178 °.

Multiple 4K / 8K interfaces

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP fiber (optional)
ST2110 IP via SFP fiber (optional)

* Quadlink 4K / 8K supports both Quad mode and 2SI interleave mode;
* SFP Fiber Optic Adapter is optional purchased.

Viewing Modes

Supports single link 4K inputs including 12GSDI, HDMI2.0 or 12GSDI via SFP and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4 independent 4K videos for multiview, supports 12G / 6G / 3G / HD- SDI and HDMI 2.0 / 1.4 / 1.3 mixed format input and waveform selection, vector, audio meters, EOTF, color gamut for each entrance.

4K single link inputs - 12GSDI, HDMI2.0, SFP
Quad link 4K inputs - 4x 3GSDI (SQD or 2SI) Inputs
quad link 8K - 4x 12GSDI (SQD or 2SI)
Multiview mixed inputs - 4 independent video inputs of 12G / 6G / 3G / HD-SDI or mixed HDMI
EOTF HDR / SDR

BM-U175 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0 / 1.8 / 2.2 / 2.4 / 2.6 SDR EOTF and color gamut selection from native LCD, BT.709, DCI-P3 and BT.2020.

Automatic payload ID setting

It supports input video payload ID identification, and the monitor will automatically set EOTF HDR / SDR, color gamut, input range, color space and color depth based on the payload ID information.

Multi CG and EOTF display

Support 1 input source copied to 4 windows and simultaneously display different HDR / SDR and color gamut. Correct reference can be obtained when producing HDR and SDR together.

3DLUT automatic self-calibration
by X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) supports X-rite i1 and Jeti Specbos 1211 probes for direct connection with the monitor's USB port. The monitor generates color models and the color probes read the color, send color information to the monitor via USB. Then the monitor compares the color difference and generates 3DLUT and calibrates itself automatically. Calibration time: X-rite i1 15 min, Specbos 1211 45 min Calibration result: E = 1.0

Zero Latency Audio / Video

Supports zero latency mode (less than 1/100 frame) with 4K input sources, for a special image processing mode for lip sync monitoring.

HDR / SDR De-log LUT

The monitor has built-in multi-camera logs for HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc. also loads user LUTs to monitor via USB disk, supports 17x17x17 3DLUT cube files.

Multiple video analytics templates

Waveform Y / Cb / Cr / R / G / B with Nits mark Spotting scope
vector
Red / Blue Peaking focus assistance
R / G / B / Mono Shape mode
single line waveform
R / G / B / Y Histogram
Overexposed zebra stripes
False colors
