Panasonic

4010869293921
Control panel for camera head with serial and IP control functions
go to the technical sheet
€ 2.596,50

€ 2.415,35 VAT excl.

Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

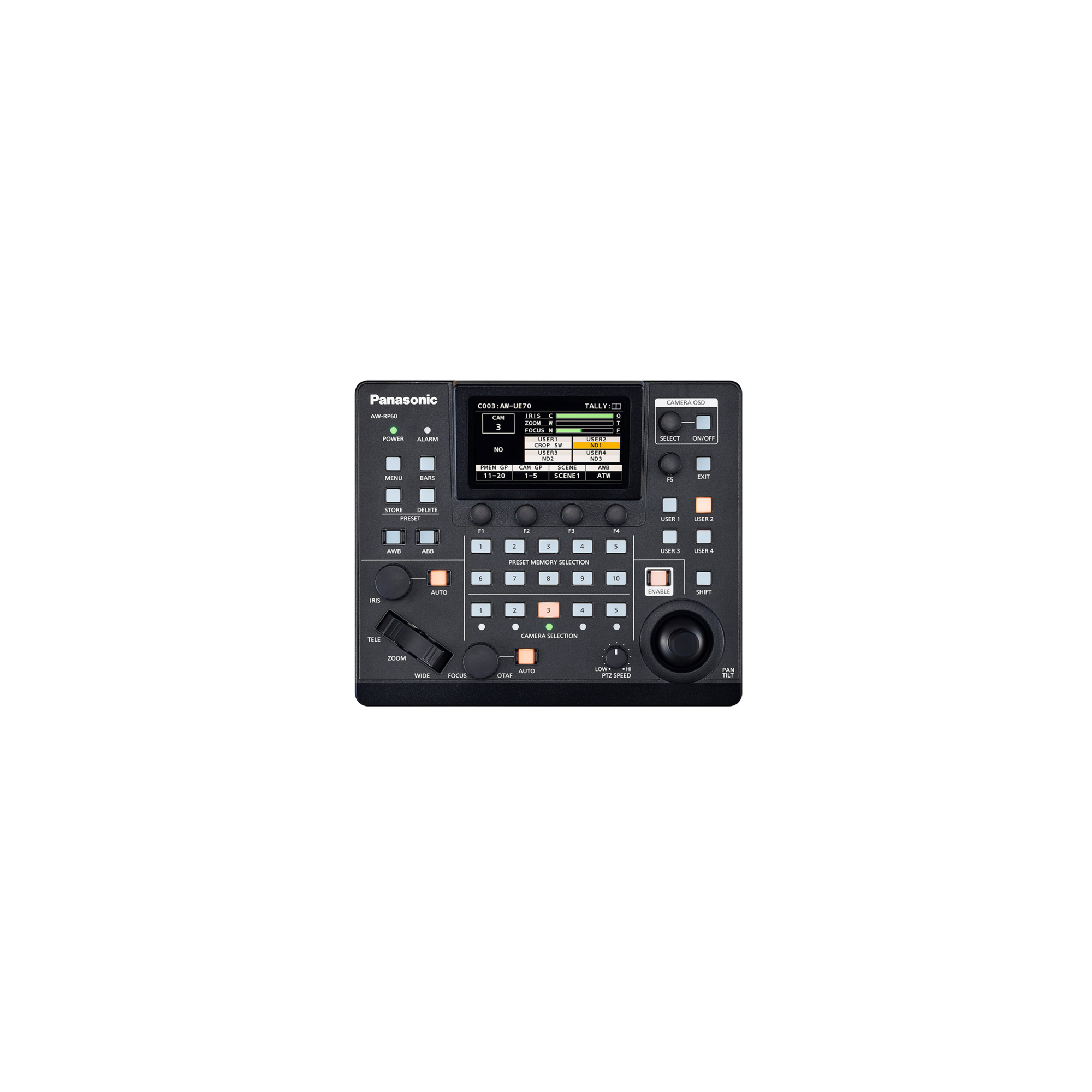

AW-RP60 Remote Camera Controller is equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is compatible with all current Panasonic PTZ models.
Thanks to the improved GUI, now all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen.

The AW-RP60 is also capable of supporting up to 200 cameras in 20 groups, manages 100 presets and comes with PoE support allowing for an easy integration. The controller is equipped with four user assignable buttons, to which up to eight functions*2 of your choice can be assigned. Each preset name can also be customized with a PC tool.
These flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at amusement facilities

Specifications
Display : 3.5-type liquid crystal (QHD 960 x 540)

Connection Specifications
No. of Connectable Cameras : 200 (IP), 5 (RS422)
*Up to 100 for cameras other than the AW-UE150

Remote Camera Selection
No. Of Camera: 5 (6 to 200 controlled from the LCD)
No. Of Camera Groups : 20 (10 units/group)
No. Of Memory Presets : 100
PoE* IEEE802.3af standard: 42 V to 57 V DC (Camera Input)

Power
Current consumption : 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Power Requirements : 12 V DC (10.8 V to 13.2 V)

Fisical
Dimensions : (mm) W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
Dimensions : (inch) 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
Weight : 1.5 kg

1x Remote controller unit
