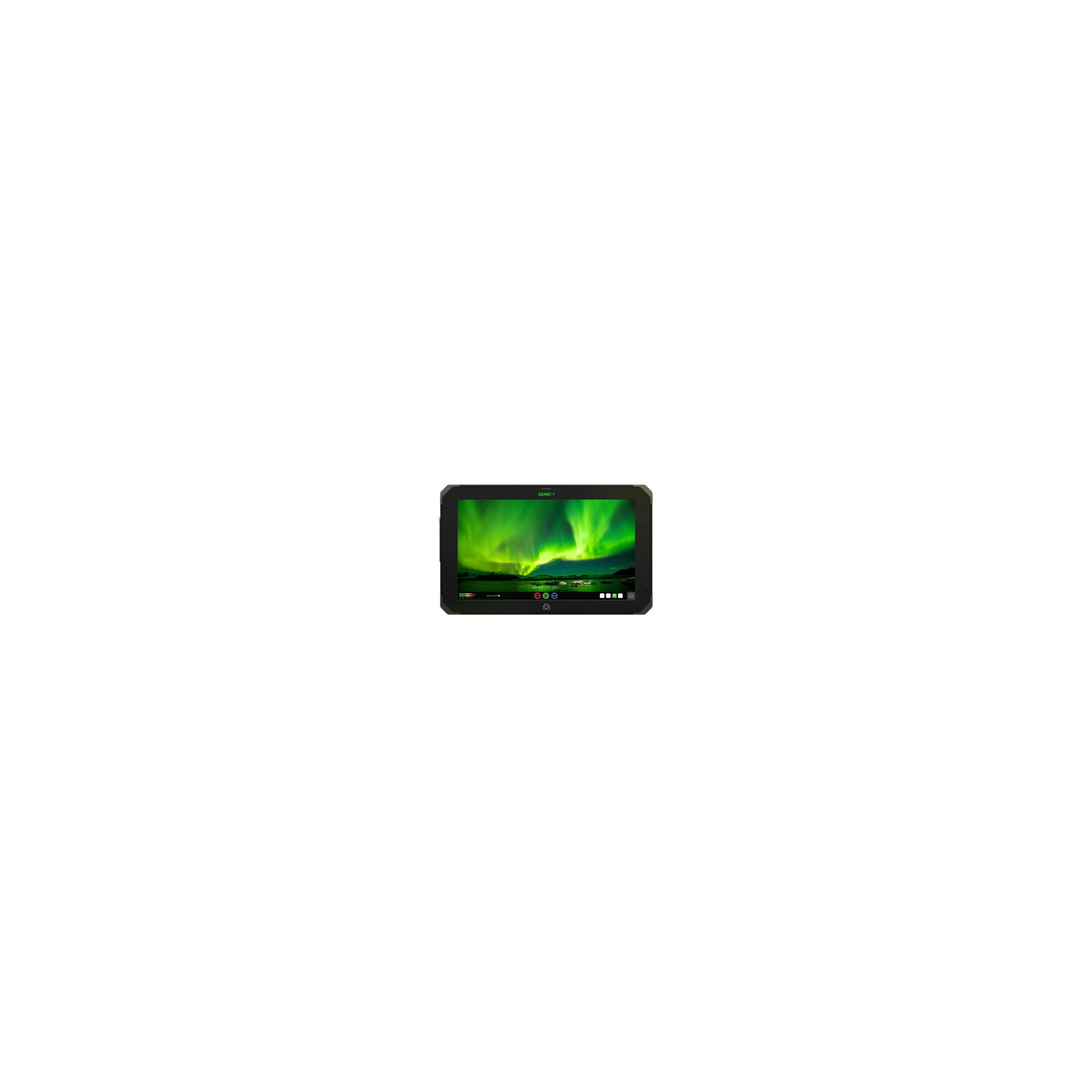

Sumo19 SE
Atomos
€ 2.276,05 VAT excl.
The Sumo 19" SE can record in ProRes RAW and 10-bit 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19" SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19" SE into your studio setup.
SE Upgrades and Features
-Upgraded 19" Quantum Dot OLED display with 2000 cd/m² brightness
-Live, quad-channel HD switching and recording
-Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
-HDMI 2.0 and quad-SDI support genlock and LTC timecode
-Works in HLG and PQ formats of HDR
Live Quad-Channel HD Switching and Recording
-Record four streams simultaneously as separate ISOs while cueing and switching in real time
-Record fifth channel of switched feel and display resulting in mixed output live on set (via HDMI or SDI)
-Switching is asynchronous and can be output with Atomos Connect 4K
HDR Capabilities
-10-bit processing takes RAW/Log/PQ/HLG output from camera or gaming consoles
-Maps to display 10+ stops of dynamic range in real time
Two XLR Inputs with Phantom Power
-Full-size XLR connections with +48 phantom power
-Connect two external microphones for balanced analog audio recording and monitoring
-Dedicated meters, gain controls, and adjustments for frame delay on each channel
-Mic or line level audio can be synced with embedded HDMI and SDI audio
Powering the SE
-Dual 4-pin XLR inputs for continuous dual battery power
-Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
-Includes AC power supply, 12-16.8V DC input
In the Box
-Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
-Master Caddy II
-BattWing Mounting Bracket
-4 x Screw
-2 x Desktop Foot
-4 x 1/4"-20 Mounting Screw
-AC Power Supply
-Limited 1-Year Warranty, 3-Year Extension with Registration
2VMAB
ATOMOS 4K RAW 500GB
ATOMXMINI1000PK
Atomos SUMO19 SE Specs
Display
Panel Type Quantum Dot OLED
Display Size 19.00" / 48.3 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 120 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
I/O
Video
1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
4 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Embedded Audio
HDMI: 8-Channel
SDI: 12-Channel
Audio:
2 x XLR Input
2 x XLR Output
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: 2 x 5 W
Power I/O:
2 x XLR 4-Pin (14.4 VDC) Input
1 x XLR 4-Pin (16.8 VDC) Input
Other I/O:
1 x Genlock (BNC) Input
1 x LANC (2.5 mm) Input
Media/Memory Card Slot: None
File System Support: exFAT
Format Support
Video Format:
HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
Gamma Curve: DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
Video Signal Conversion:
HDMI to SDI
SDI to HDMI
Timecode Support: Yes
Recording
Pulldown Conversion: 2:2, 3:2
Camera Trigger: SDI, HDMI
Pre-Roll Record:
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats:
x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit
Closed Caption Support: None
Reference Input: None
Phantom Power: +48 V
Power
DC Input Power: 12 to 16.8 VDC
Built-In Battery: None
Battery Type: 2 x V-Mount, Gold Mount
Power Consumption: 75 W
Mounting
Mounting-Hole Pattern: 100 x 100 mm
Mounting:
10 x 1/4"-20 Female
5 x 3/8"-16 Female
Environmental
Operating Temperature: 104°F / 40°C
General
Material of Construction: Aluminum, Polycarbonate
Dimensions:
19.8 x 13 x 7.1" / 504 x 330 x 180 mm, Including Feet
19.8 x 12.2 x 2.5" / 504 x 310 x 63 mm, Excluding Feet
Weight: 12.02 lb / 5.45 kg
