RM-IP500ACM

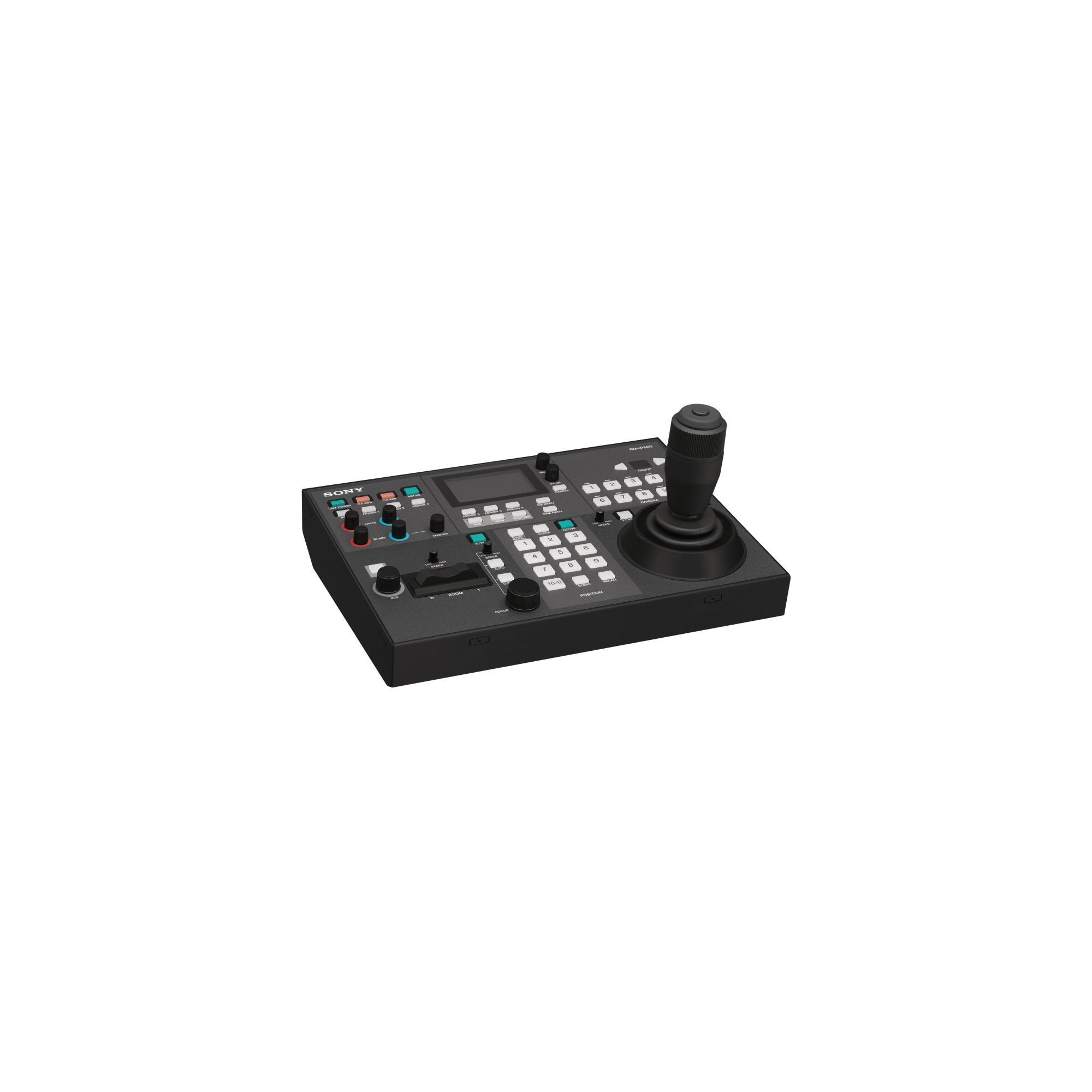

This compact remote control features a high-quality joystick that allows you to seamlessly control the pan, tilt and zoom functions of compatible Sony remote PTZ cameras with one hand. In addition to the joystick, the zoom can also be controlled via an additional "seesaw" lever, Dedicated control knobs and buttons make it easy to directly access the most used camera functions. Adjustable PTZ speed allows for smooth and accurate movement of cameras.

The RM-IP500 simplifies the generation of cost-effective multi-camera content creation systems, with a wide range of applications: from live events to conferences, from broadcast studios to educational institutions and houses of worship.

The PTZ speed can be adjusted and can therefore increase or decrease to ensure more professional results. You can set up to 100 combinations of camera angles and related settings as defaults. The Trace Memory function allows you to memorize a sequence of camera movements to be performed whenever needed.

Ability to control up to 100 BRC or SRG cameras via IP
You can control up to 100 compatible Sony BRC or SRG series remote PTZ cameras connected to a standard IP network. Setup is simple: the remote automatically assigns an IP address to each Sony PTZ camera connected to the network, along with a camera number.
The following Sony PTZ remote cameras are perfectly compatible with the remote control: BRC-X1000, BRC-H900, BRC-H800, SRG-360SHE.

Simple setup
System configuration is quick and easy thanks to the automatic assignment of IP addresses and camera numbers to connected cameras.

Trace Memory
It is possible to memorize a sequence of camera movements, to be performed whenever needed.

Storing and executing preset settings
You can easily store and execute up to 100** presets (camera angles and settings) via the numeric keypad, eliminating the need to set up multiple cameras.

Each network can contain up to 5 controllers
The possibility of connecting up to 5 RM-IP500 control panels in the same network allows the control of large camera systems to be distributed among multiple operators.

Adjusting the camera's paint functions
Color settings - including black levels, white balance, flicker suppression, detail level, knee point, auto exposure level, iris, gain and shutter speed - can be adjusted directly without using camera menus. cameras.

Possibility to use the VISCA control
The RM-IP500 is also capable of controlling up to seven*** compatible BRC or SRG series cameras over RS-422
