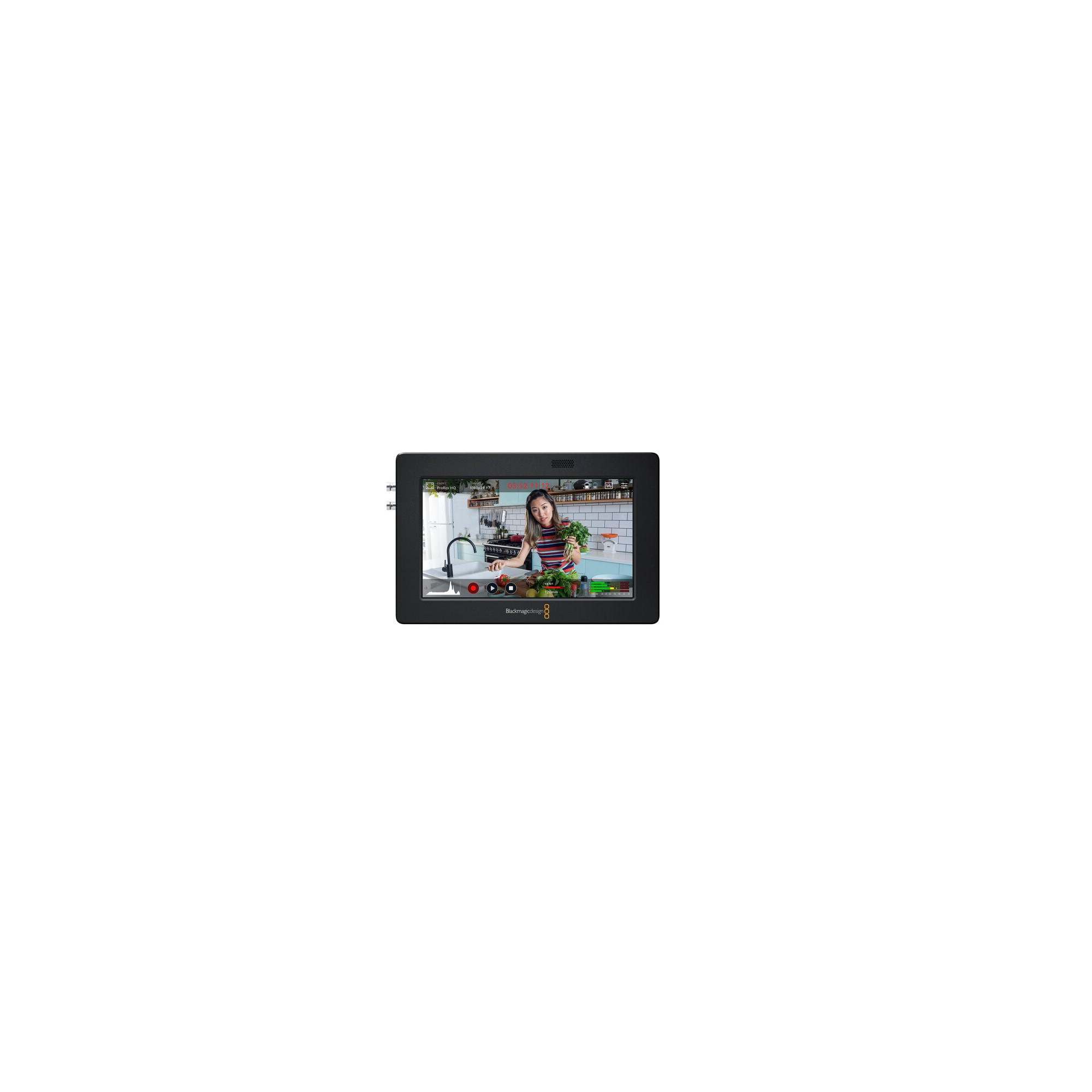

Video Assist 5 3G
Blackmagic
9338716006407
3G 5" Recorder/Monitor, SDI e HDMI, 2 x SD slot, 1920 x 1200
go to the technical sheet
€ 374,61
€ 348,47 VAT excl.
With large and bright 5" touchscreen Blackmagic Design Video Assist 3G 5" Recorder/Monitor makes it incredibly easy to frame shots and accurately focus. The touchscreen displays critical information while users are shooting including the timecode, transport control, audio meters and a histogram for exposure. Customers can also customize the LCD to add or remove overlays such as current filename, focus peaking, zebra, false color, frame guides, 3D LUTs and more. 3D LUTs support allows monitoring shots with the desired color and look, plus customers can even "bake in" the LUT if customers want to record it into the file.
Video Assist uses commonly available SD card media, so customers can record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards.
Blackmagic Video Assist 3G Features
Modern design with fast to use touchscreen controls.
LCD features can be customized by the user.
SD/USH-II card support for commonly available media.
Upgrades cameras to better monitoring and better record codecs.
Large LCD screen with digital film style focus assist tools.
3G-SDI and HDMI for recording in SD and HD up to 1080p60.
Standard open file formats compatible with popular software.
Built in scopes include waveform, vector, parade and histogram.
3D LUTs can be applied for both monitoring and recording.
Professional multi channel digital and analog audio.
Localized for 11 popular international languages.
Works with popular NLE software such as DaVinci Resolve.
Video Assist uses commonly available SD card media, so customers can record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards.
Blackmagic Video Assist 3G Features
Modern design with fast to use touchscreen controls.
LCD features can be customized by the user.
SD/USH-II card support for commonly available media.
Upgrades cameras to better monitoring and better record codecs.
Large LCD screen with digital film style focus assist tools.
3G-SDI and HDMI for recording in SD and HD up to 1080p60.
Standard open file formats compatible with popular software.
Built in scopes include waveform, vector, parade and histogram.
3D LUTs can be applied for both monitoring and recording.
Professional multi channel digital and analog audio.
Localized for 11 popular international languages.
Works with popular NLE software such as DaVinci Resolve.
CABLE-MICROBNCML
€ 57,51
VAT included
Available in 11 days
CABLE-MICROBNCBNCMALE
€ 74,16
VAT included
Available in 9 days
CABLE-MICROBNCBNCFEMALE
€ 49,97
VAT included
Available 1 unit in 4 Days
CABLE-MICROBNCFM
€ 57,51
VAT included
Available in 11 days
S-8975
€ 92,64
VAT included
Available 5 unit in 4 Days
S-8972
€ 83,65
VAT included
Available 5 unit in 4 Days
BATT-NPF570CAM
€ 59,06
VAT included
Available in 11 days
S-8770
€ 65,45
VAT included
Available in 11 days
PSUPPLY-12V20W2.5B
€ 65,03
VAT included
Available in 11 days
SR 2059
€ 16,07
VAT included
Available 3 unit in 4 Days
MH492LCD-BH
€ 98,95
VAT included
Available in 19 days
Orca OR-140
€ 180,40
VAT included
Available in 19 days
Video Assist Mini XLR Cables
€ 48,61
VAT included
Available 4 unit in 4 Days
P-DMC
€ 170,79
VAT included
Available in 19 days
PT-M Coax 25 - ON-AIR
Available in 15 days
Display
Panel Type : LCD
Display Size : 5.0" / 12.7 cm
Screen Resolution : 1920 x 1080
Aspect Ratio : 16:9
Viewing Angle Horizontal: 135°
Touchscreen : Yes
Maximum Brightness : 300 cd/m2
Pixels Per Inch (ppi) : 441 ppi
Color Gamut : 100% Rec. 709
Real-Time LUT Monitoring : SDR
Image Controls : Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
I/O Video
1 x HDMI Type A Input
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support : Yes
Embedded Audio : HDMI: 8-Channel - SDI: 16-Channel
Audio : 1 x 3.5 mm Headphone Output
Built-In Speaker : 1
Power : 1 x Barrel Input
Other I/O : 1 x USB Type-C
Card Slot : 1 x SD
Wi-Fi : None
Format Support
Video Format : SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
Recording
Pulldown Conversion : None
Camera Trigger : None
Pre-Roll Record : None
Encoding Formats : Up to 1920 x 1080
ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks : 16
Recording Media : 1 x SDXC (UHS-I)
Metadata Tagging : Yes
Timecode Support : SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power : None
Power
DC Input Power : 12 VDC
Battery Type : 2 x L-Series
Mounting
Mounting 6 x 1/4"-20 Female
Environmental
Operating Humidity : 0 to 90%
Operating Temperature : 32 to 104°F / 0 to 40°C
Storage Temperature : -4 to 113°F / -20 to 45°C
General
Material of Construction : Aluminum
Dimensions (W x H x D) 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight : 14.46 oz / 410 g
Warranty Length : Limited 1-Year Warranty
Packaging Info
Package Weight : 1.96 lb
Box Dimensions : (LxWxH) 7.8 x 7.5 x 4.1"
