E1-S NDI

Name: E1-S NDI
Brand: Kiloview
SKU: E1-S NDI
Price: 742340 NGN
Availability: OutOfStock

Kiloview

EAN: 6970631322007

Wired Video Encoder NDI|HX - HD/3G-SDI

go to the technical sheet

₦ 742,340.00

₦ 690,549.00 VAT excl.

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

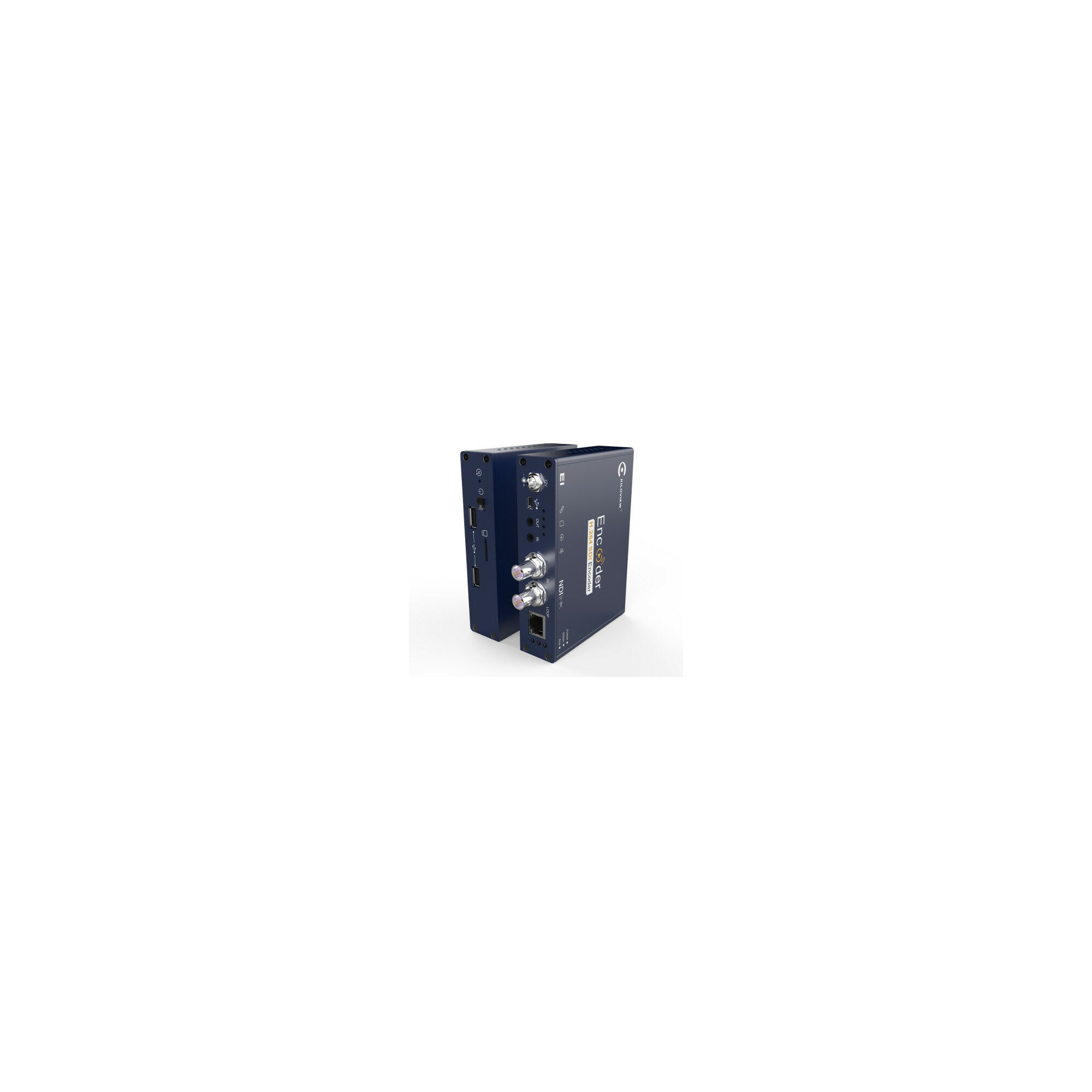

Kiloview E1(NDI) wired live video encoder is the fastest, easiest, and best way to get video into IP workflows. it delivers the groundbreaking benefits of NDI®, NewTek's innovative Network Device Interface technology. It captures any SDI video source and convert it to IP, with embedded audio and simultaneous video loop out. In its ultra-portable enclosure. Applications of the E1(NDI) encoder include hotel TV system, school teaching, digital TV broadcasting, recording system.

Main features
____________________________
° Supports 3G-SDI level A and B
° Supports encoding of 2 audio channels selectable from 8 embedded channels
° able to convert an SDI source with embedded audio and simultaneously provide the looped video output
° Maximum resolution FullHD 1080p
° H.264 encoding
° Support for Live platforms
° Video latency less than 68ms
° Designed to work 24/7
° NDI Output: Transmission of sources in FullHD over IP network with 1080p resolution
° NDI Virtual Input: It is possible to use E1 NDI as a source in many software such as Google hangouts, Skype, Skype for Business
° Web interface
° Access to devices connected to the network and the possibility of inserting them into your production via NDI Access Manager.
° Video quality is guaranteed even with very low bitrates and very low latency
° Supports the SRT protocol in addition to RTP/RTSP/RTMP/HLS/TS for video streaming on many platforms
° Supports dual streaming on different platforms, with primary resolution at 1080p60 and secondary 720p60
° MicroSD card slot, excellent for storage and recordings
° USB slot compatible with WiFi adapters for even wireless network connection

Download

Datasheet

Download (581.56KB)

Interface
____________________________
Video input: 1x BNC SDI
Video looping out: 1x BNC SDI
Analog video input: 1x3.5mm
Analog video output: 1x 3.5mm
Wired network: 10/100M self-adaptive Ethernet
Wi-Fi: : Built-in model, external dual antenna
USB: 1x USB 2.0 Type-A - 1x USB 2.0 Mini-USB

Signal and formats
____________________________
SDI signal standard: 0.8Vpp
SDI impedance: 75 ohm
SDI coupling mode: AC
SDI signal formats:
&emsp, HD-SDI (1.485 Gbps)
&emsp, 3G-SDI (2.97 Gbps)
Supported video formats:
&emsp, 1080p23.98/24/25/29.97/30
&emsp,1080p50/59.94/60
&emsp,1080i50/59.94/60
&emsp,720p23.98/24/25/29.97/30
&emsp,720p50/59.94/60,576i, 480i
&emsp,525i(480i) / 625i(575i)
Audio:
&emsp,Unassociated SDI audio (stereo)
&emsp,Analog line-in/line-out (stereo)

Encoding
____________________________
Video encoding: H.264/AVCHigh profile (up to level 5.1), compatible with main profile and baseline
Audio encoding: AAC/MPEG4-Audio, G.711(u-Law/a-Law) [other algorithm can be extended]
Encoding delay: <= 67 ms
Video encoding bitrate: 256 Kbps ~ 25 Mbps adjustable
Audio encoding bitrate: 32 Kbps ~ 512 Kbps : AAC64 Kbps : G.711

Transmission protocols
____________________________
RTP / RTSP (RTP compatible over RTSP,
RTSP HTTP Tunnel and RTSP Multicast)
RTMP push, RTMP service,
TS over UDP, HLS
KMP (KILOVIEW Media Protocol)
Management protocol: HTTP

Management
____________________________
Management interface: Web
Online firmware upgrade: Yes

General
____________________________
Power Supply: DC 12V 1A
Operating Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20 ~90%RH (non-condensing)
Power Consumption: 4W Max
Dimensions: 4.9 x 3.5 x 1.125" / 125 x 89 x 28 mm
Weight: 13.4oz / 380g
Power Adapter: External DC 12V 1A adapter
