Telycam

768486167838
4KN NDI Auto Tracking & Live Streaming PTZ Camera with 20x Optical Zoom (White)
go to the technical sheet
₦ 2,053,992.00

₦ 1,910,689.96 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

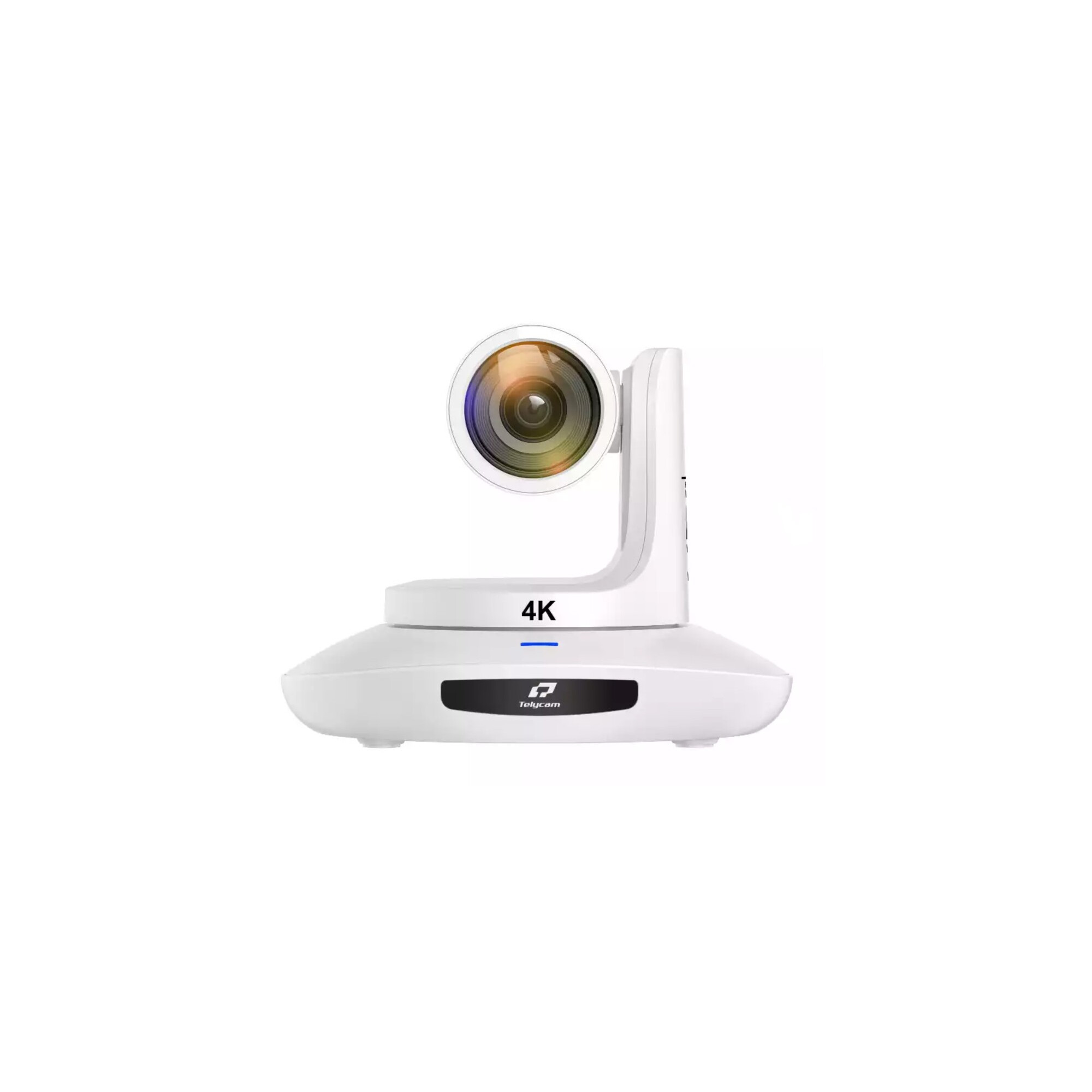

Telycam Vision+ 4KN NDI Auto Tracking & Live Streaming PTZ Camera with 20x Optical Zoom (White)

This white Vision+ 4KN NDI Auto Tracking & Live Streaming PTZ Camera from Telycam is a very versatile PTZ camera with NDI|HX, HDMI 2.0, and USB-C connectivity, offering resolutions up to UHD 4K60, and 3G-SDI connectivity handling resolutions up to 1080p60.
Boasting Free D support and a powerful 20x optical zoom, the camera is ideal for use in houses of worship, large conferences, educational events, and live performances.
To add to its application flexibility, the camera supports PoE (Power over Ethernet), which allows it to be powered with a single Ethernet cable at considerable distances.

Ultra HD 4K60
Equipped with advanced image processing solution and cutting-edge video camera algorithms, the camera features a Sony 1/1.8" CMOS sensor and high-quality lens, to output crystal clear images with resolutions up to UHD 4K60.

Built-In Auto Tracking
With built-in auto-tracking functions, you don't need any third-party software or other devices.
Just turn it on with one click on the WebUI, matching remote control, or Telycam's control keyboard, and you can track the target accurately and smoothly without any outside interference.
You can also switch the target talent, set the target area, or change the target size.

Revolutionizing VR/AR with Free D Protocol
The FreeD protocol enables precise PTZF data, empowering systems like Unreal Engine, Brainstorm, and Vizrt's Viz Virtual Studio to accurately replicate the camera's movements.

Multiple Video Output Interfaces
Experience seamless versatility with NDI|HX and HDMI 2.0 for UHD 4K, 3G-SDI (both level A and level B) outputs for up to 1080p60, and a USB-C output supporting a remarkable max resolution of up to 4K30.

Embed the Latest NDI SDK
Newtek's NDI creates a plug-and-play environment for various products and platforms in live streaming, making it possible to produce abundant and diverse live content.

Imaging
Image Sensor: 1/1.8"-Type CMOS
Horizontal Resolution (TV Lines): 2160 TV Lines
Sensor Resolution: Effective: 9 Megapixel
Built-In ND Filter: No
Focus Control: Autofocus | Manual Focus

Exposure Control
Shutter Type: Electronic Rolling Shutter
Signal-to-Noise Ratio: 50 dB
Minimum Illumination: 0.5 Lux
Flip / Mirror Support: Image Flip, Mirror (Vertical)
White Balance: Presets: Auto, Color Temperature, Indoors, Manual, One Push, Outdoors

Lens
Focal Length: 6.25 to 112.5mm
Optical Zoom Ratio: 20x
Field of View:
- Horizontal: 61 to 3.5°
- Vertical: 34.1 to 1.9°
- Diagonal: 60.7 to 3.5°
Maximum Aperture: f/1.58 to 3.95
Minimum Focus Distance: 3.3'' / 1.0 m

Control
Presets: 128 via RS-232, VISCA | 10 via IR
Move Speed:
- Pan: 0.1 to 120°/sec
- Tilt: 0.1 to 80°/sec
Movement Range:
- Pan: -170 to 170°
- Tilt: -30 to 90°
Tally Light: Yes
Supported Control Protocols:
- IR
- NDI
- NDI|HX2
- Pelco-D
- Pelco-P
- VISCA

Interface
Video I/O:
- 1x RJ45 (NDI) Output
- 1x HDMI 2.0 Output
- 1x BNC (3G-SDI) Output
- 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O: 2x 1/8" / 3.5 mm TRS Stereo Line Input

Power
PoE Support : PoE+ 802.3at
Power I/O : 1x Barrel (12VDC) Input

Environmental
Operating Temperature : 14 to 122°F / -10 to 50°C
Operating Humidity : 80%

General
Certifications : CE, FCC, RoHS, UKCA, IC
Dimensions (W x H x D) : 8.7 x 7.5 x 6.8" / 220 x 190 x 173 mm
Weight : 3.3 lb / 1.5 kg (Body Only)

Vision+ 4KN NDI Auto Tracking & Live Streaming PTZ Camera with 20x Optical Zoom (White)
