CONVBDCSDIHDMI12G

Name: CONVBDCSDIHDMI12G
Brand: Blackmagic
SKU: CONVBDCSDIHDMI12G
Price: 336296 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716007046

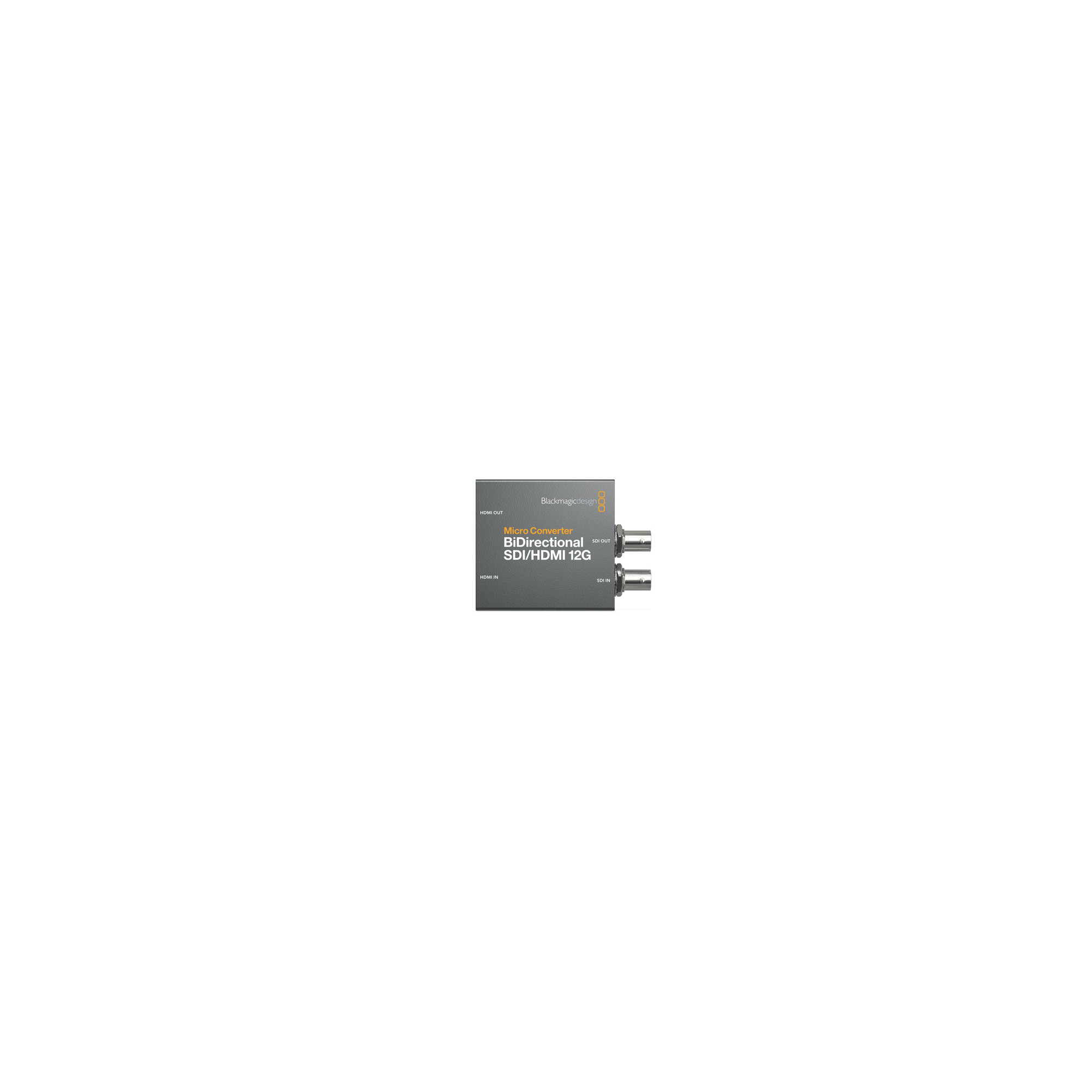

Micro Converter BiDirectional HDMI to SDI 12G wPSU- No power supply

go to the technical sheet

₦ 336.296,00

₦ 312.833,49 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Converts SDI to HDMI and HDMI to SD in all SD, HD and Ultra HD formats up to 2160p60. The direction of each conversion also admits different SD, HD and Ultra HD video standards. It's like having two converters in one! With a durable metal pocket design, it's perfect for live production and broadcast. It's compact enough to hide out of sight if needed, and powers from any USB-C socket

Power Supply & Chargers

Blackmagic

PSUPPLY-5V10WUSBC

₦ 77.309,42 VAT included

Available in 11 days

SDI video inputs: 1
SDI video outputs: Automatically adapts to HDMI video input
HDMI 2.0 video inputs: 1 x type A
HDMI 2.0 video outputs: 1 x type A
SDI transmission: 270Mb, 1.5G, 3G, 6G, 12G
Multi-rate compatibility: SD, HD, 2K, Ultra HD and 4K automatically detected
Update, configuration and power supply: USB Type-C
Reclocking: Yes

Standard
SD video standard: 525i59.94 NTSC, 625i50 PAL

HD video standard:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K video standard:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Compliance with SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI transmission: SDI video connections switch between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
SDI color accuracy: 4: 2: 2. You can load a 17-point LUT using the utility to calibrate or improve the color of the monitor
SDI color space: YUV
Auto SDI switching: SD, HD, 2K DCI, Ultra HD and 4K DCI automatically detected. Level A and B automatically detected in incoming 3G-SDI; selectable for 3G-SDI output

HDMI video standard:
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

HDMI color accuracy: 4: 2: 2. You can load a 17-point LUT using the utility to calibrate or improve the color of the monitor
HDMI color space: YUV

Power Requirements
Power Consumption: 5W max
Operating voltage: 4.4 to 5.25V DC

Environmental Specifications
Operating temperature: 0 ° to 40 ° C
Storage temperature: -20 ° to 60 ° C
Relative humidity: 0% to 90% without condensation
