HD5DA-R0

Name: HD5DA-R0
Brand: AJA
SKU: HD5DA-R0
Price: 409.3 EUR
Availability: OutOfStock

AJA

HD-SDI distribution amplifer/reapeater 1x4 - Auto Input - Small Footprint

go to the technical sheet

€ 409,30

€ 380,74 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

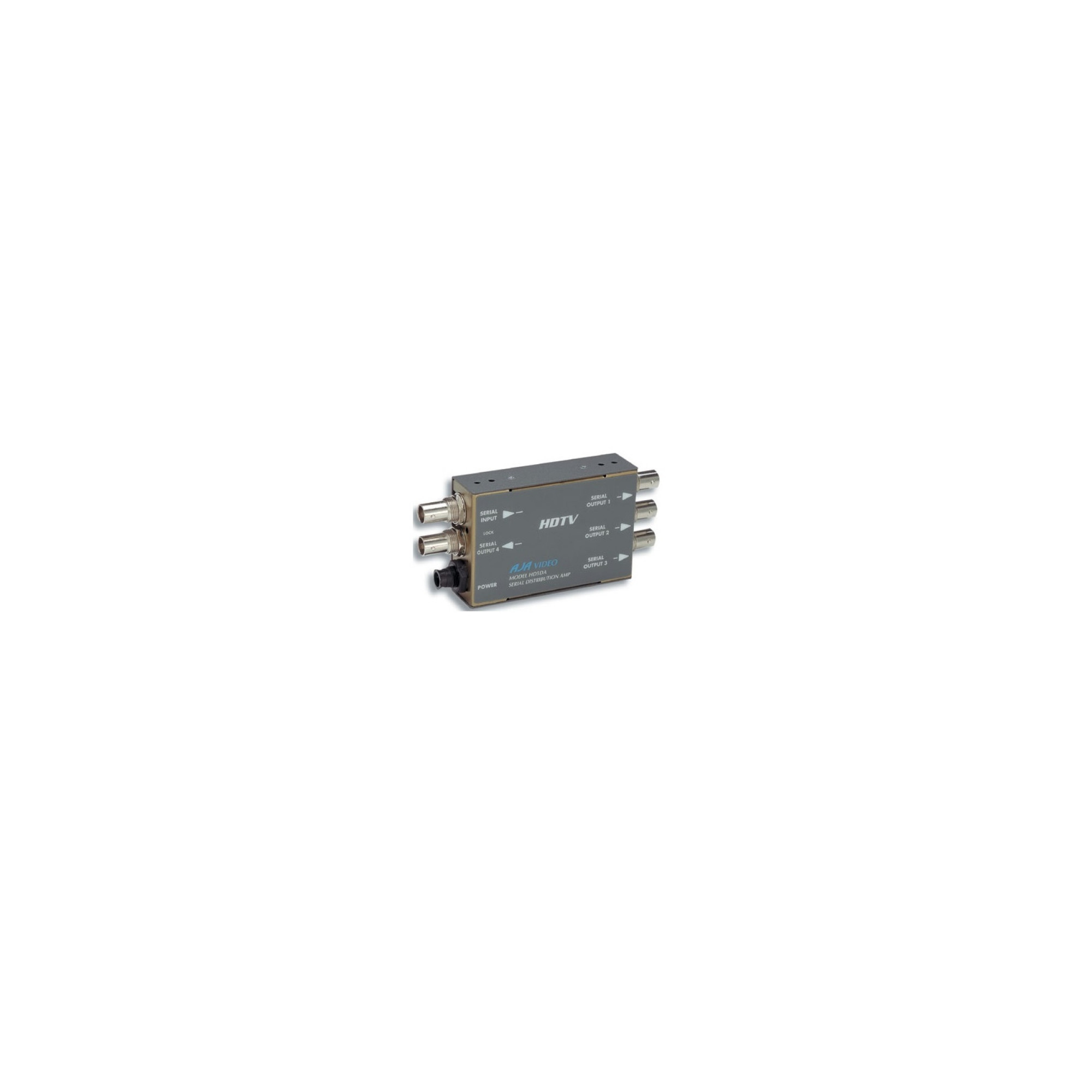

The HD5DA 1x4 HD-SDI Distribution Amplifier from AJA accepts an HD-SDI digital video signal and outputs four identical signals for distribution. The input adapts to various formats of HD-SDI automatically.

Note! This device requires an optional power supply for operation.

Auto Input
The input of this device automatically adjusts to formats of 143, 177, 270, 360Mbps and 1.5Gbps.

Compact Size
Measuring 5" at its widest point, the HD5DA will fit into small studio spaces.

Cables & Connectors

ON-AIR

PT-M AJA - ON-AIR

€ 51,60 VAT included

Available in 15 days

Specifications
Formats
1.5Gb, 143, 177, 270, 360 Mb, Auto Select

Inputs
1 HD-SDI, SDI (SMPTE 292/296), 1x BNC

Outputs
4 HD-SDI, SDI, 4x BNC
Equalizing

Return Loss
>15dB-270Mhz (Input and Output)

Power
5VDC Regulated, 2.5 Watts, Power Supply Required (sold separately)

Size
5.8" x 2.4" x 1" (131 x 61 x 25mm)
