U-TAP-SDI-R0

Name: U-TAP-SDI-R0
Brand: AJA
SKU: U-TAP-SDI-R0
Price: 897409 NGN
Availability: InStock

AJA

U-TAP SDI USB 3.0 powered SDI capture interface

go to the technical sheet

₦ 897,409.00

₦ 834,799.00 VAT excl.

Available 1 unit in 4 Days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

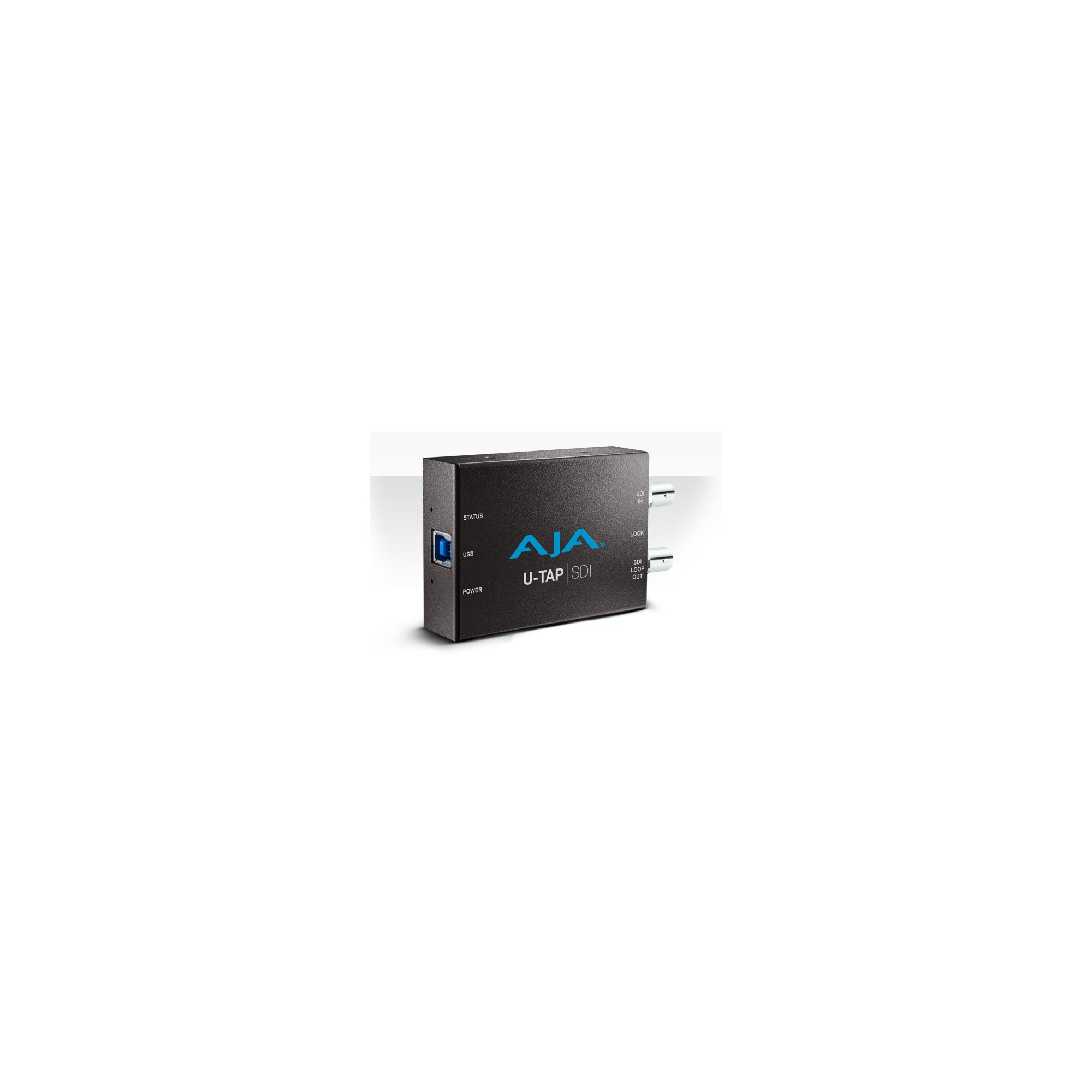

U-TAP SDI is smaller than a smart phone, and is incredibly useful in the field, on set or at a studio where USB connectivity provides a quick and
easy way to obtain SDI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.

U-TAP SDI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects, perfect for live events and fast moving subjects.

U-TAP SDI also provides a SDI looping output, allowing you to loop through the source SDI signal to monitors, switchers and more.

U-TAP SDI, pocket power to go.

Key Features
° Compact and portable
° SDI Input
° USB 3.0 connection for laptops and desktops.
° USB 3.0 BUS Power Supply
° Support for Mac Os, Windows, Linux
° 3-year manufacturer's warranty

Software Compatibility

U-TAP SDI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatability with a wide range of professional software applications and a seamless integration between the native software and AJA's high quality hardware letting you focus on the work, not the technology.

Software compatibility:

Download

Datasheet

Download (867.4KB)

Video Formats
• Video
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97, 30
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97
• Computer
• 1920 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1680 x 1050p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1600 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1280 x 1024p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1280 x 960p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1024 x 768p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 800 x 600p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 720 x 576p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 640 x 480p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• Scaled
• 1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
• 1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
• 1280 x 720p 25, 29.97, 30, 50, 59.94, 60
• 1024 x 576p 25, 29.97, 30, 50, 59.94, 60
• 856 x 480p 25, 29.97, 30, 50, 59.94, 60
• 768 x 576p 25, 29.97, 30, 50, 59.94, 60
• 720 x 576p 25, 29.97, 30, 50, 59.94, 60
• 720 x 480p 25, 29.97, 30, 50, 59.94, 60
• 640 x 480p 25, 29.97, 30, 50, 59.94, 60
• 640 x 360p 25, 29.97, 30, 50, 59.94, 60

Video Input Digital
• SDI, 24-bits/pixel

Audio Input Digital
• 2-Channel, 24-bit SDI embedded audio, 48 kHz sample rate

Host Interface
• USB 3.0/USB 2.0 UVC/UAC compliant

Size (w x d x h)
• 3.3" x 2.4" x 1.0" (84mm x 61mm x 25mm)

Weight
• 0.3 lb (0.2 kg)

Power
• 5V USB bus powered, 6.5W max

Environment
• Safe Operating Temperature Range: 0 to 40C (32F to 104F)
• Storage Temperature: -40 to 60 C -40 to 140 F).
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
