PXW-Z200B

Name: PXW-Z200B
Brand: Sony
SKU: PXW-Z200B
Price: 7729195 NGN
Availability: InStock

Sony

EAN: 4548736163997

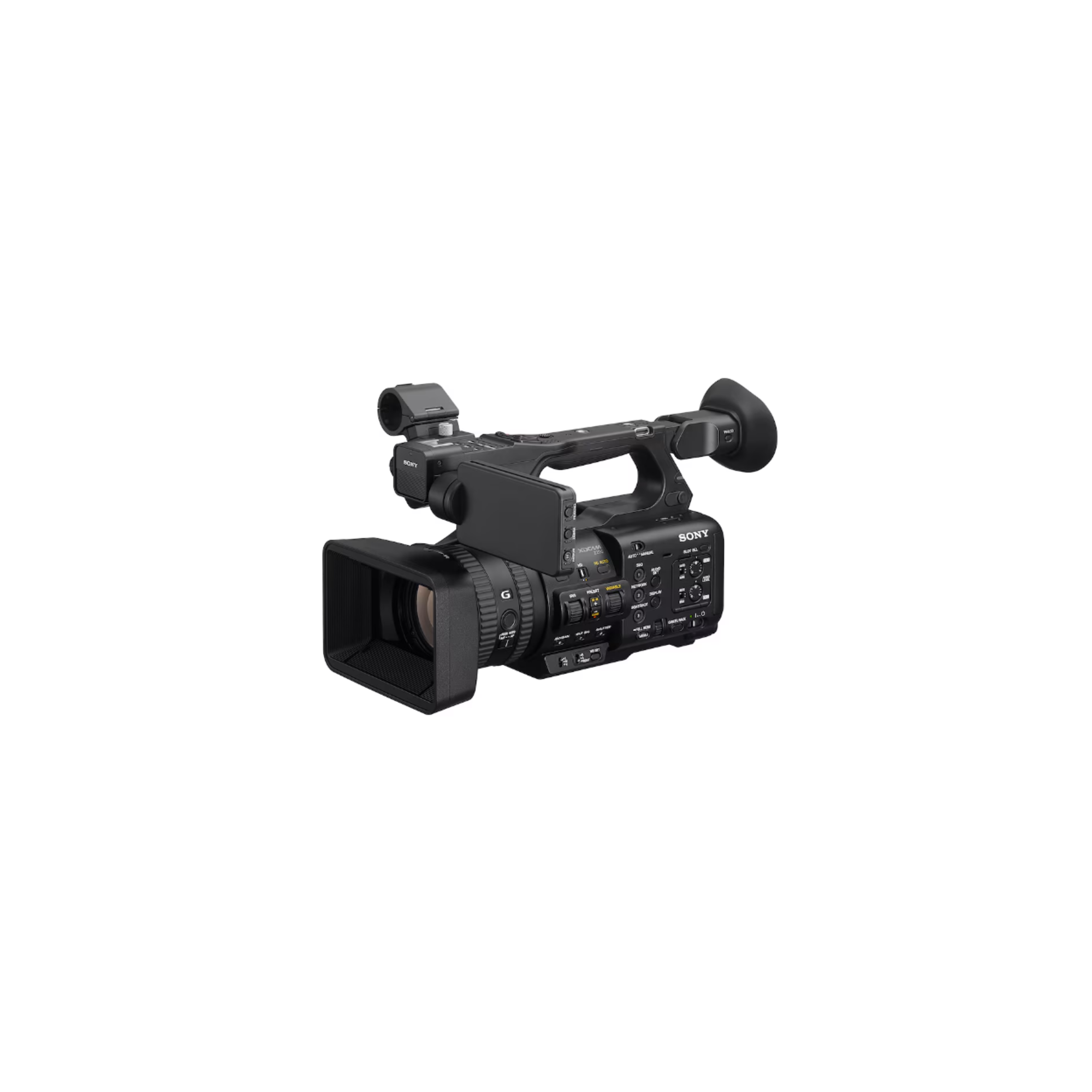

Camcorder with 20x optical zoom, 1" Exmor RS CMOS sensor, SDI and HDMI output

go to the technical sheet

₦ 7,729,195.00

₦ 7,189,949.00 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Sony Camcorder zoom ratio 20x, 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor, SDI and HDMI output

Discover Sony PXW-Z200 in this clip from our Giordano

Crisp details and vivid colours, every time
Capture stunning 4K HDR footage, with colours, textures and details that stand out.
The Z200's powerful 1.0-type Exmor RS™ stacked CMOS sensor delivers images with high sensitivity and low noise, at up to 120fps* in 4K, 240fps in FHD. Preserve every detail with full-pixel readout and real-time BIONZ XR™ image processing, while compatibility with 709tone and S-Cinetone™ makes colour-matching to Cinema Line and Sony system cameras easy.
* With approx. 23% crop. Please refer to Operating Instructions for minimum memory card requirements to ensure correct operation.

Intelligent features for smarter shooting
Depend on Sony innovations that help you to capture the best content possible.
Our advanced AI Processing Unit can recognise human subjects, while the Fast Hybrid AF system tracks your subject and maintains precise focus at all times.
An Electronic Variable ND Filter means you can achieve the best exposure for your shots, in a wide range of lighting conditions, or the Auto ND function will automatically set optimal exposure for you.

Reliable streaming and broadcast TV friendly connectivity
Built-in 2.4 GHz and 5 GHz* Wi-Fi - in concert with our C3 Portal (paid) or XDCAM Pocket apps - powers simple, high-quality streaming direct from the camera.
Remote operation via our Monitor & Control** app allows you to check angles and monitor shooting from your smartphone or tablet.
The Z200 also offers built-in 12G-SDI with four-times the bandwidth of 3G-SDI over a single cable, TC input / output and broadcast friendly XAVC (MXF).

1.0-type Exmor RS CMOS sensor
For imaging performance otherwise unobtainable for a compact camcorder, the Z200 relies upon large approx.
14.0 megapixel (effective) 1.0-type Exmor RS CMOS image sensor.
Its unique stacked structure - with back illuminated pixels layered over integrated signal processing circuits - enables both faster read-out speeds and superior low-light performance due to more light reaching the sensor.

BIONZ XR image processing
Integrated within the image sensor, our latest generation BIONZ XR image processor enables higher frame-rates, faster autofocus, improved Auto Tracing White Balance (ATW) control and superior noise reduction.
It extracts maximum performance from the high-resolution image sensor, effortlessly capturing the most subtle textures and finest detail.
5K oversampling with full-pixel readout condenses ample image information into stunning 4K (3840 x 2160) 60p video.

Enhanced White Balance Accuracy
The Z200's Auto Tracing White Balance (ATW) control has evolved alongside the BIONZ XR and AI capabilities.
The camera's AI Processing Unit enables more precise ATW control, even in challenging lighting conditions, such as when the targeted person is in shadow.

Advanced AI Processing Unit for next generation AF
A specialised AI Processing Unit, working in concert with BIONZ XR, uses deep learning based on the human form and posture data to recognise human subjects with high precision. The Fast Hybrid AF system offers wide 81% coverage to better support Subject Recognition AF and Real-time Tracking.
The Z200 can effortlessly track and maintain focus on subjects just about anywhere in the frame.

20x optical zoom
One superb 20x power zoom G Lens™ covers everything from wide angle in-car interviews to telephoto close-ups for sports.
Delivering an optical zoom range of 24-480 mm (35mm full-frame equivalent), it's backed up by Sony's Clear Image Zoom technology, which adds the ability to achieve 30x zoom when recording 4K or 40x zoom in FHD.
And you can explore maximum apertures of F2.8 (wide) and F4.5 (telephoto) while zooming quickly, smoothly and silently.

Accurate LCD monitor and OLED viewfinder
Easily monitor and focus subjects with a new 3.5-type LCD monitor that offers approximately 27.6 million-dots with outstanding brightness and clarity.
The monitor swings up and down as well as backward, so finding a comfortable viewing angle is easy.
The supplied LCD hood is easily installed by sliding it into the grooves in the top and bottom of the LCD monitor, while the monitor can be folded away for storage even with the hood installed.
For clear, undistracted viewing, the high-contrast 0.39-type OLED viewfinder shuts out extraneous light while offering approximately 23.6 million-dots.

AUTO/MANUAL switch
If shooting conditions suddenly disrupt your plans, you can automatically adjust settings and maintain ideal brightness and white balance with a single switch.
When set to AUTO, it engages Auto ND Filter, Auto Iris, Auto Gain Control, Auto Shutter, and Auto White Mode.

Camera Section
____________________________
Imaging Device (Type): 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
Number of Pixels (Total): Approx. 20.9 megapixels
Number of Pixels (Effective): Approx. 14.0 megapixels max.
Built-in ND Filter: Linear variable ND (1/4 ND - 1/128 ND)
Minimum Illumination: 1.2 lx (typ)
Optical Low Pass Filter: Yes
Shutter Type: Electronic shutter
Shutter Speed: 1/8000 sec to 64F
Slow & Quick Motion (S&Q): Yes
White Balance: 2000 K - 15000 K
Gain: -3 to 36 dB (Every 1 dB)
Base Look: S-Cinetone, ITU709, 709tone, s709, 709(800%), S-Log3, HLG (Live / Mild / Natural)
Image Stabilization (Type): Lens-shift mechanism and electronic
Image Stabilization (Mode): Active / Standard / Off
Lens Compensation: Peripheral Shading, Chromatic Aberration, Distortion
ISO Sensitivity: ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable lower limit and upper limit)
Focus Type: Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point: Max. 475 points (Phase-detection AF)
Focus Recognition Target: Human
Other Focus Features: AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
Proxy Recording: Yes
Clear Image Zoom: Approx. 1.5x (4K), approx. 2x (HD)

Lens
____________________________
Zoom Ratio: 20x
Focal Length: f=7.71-154.21 mm
Focal Length (35mm Format Equivalent): 24-480 mm
Iris: F2.8-F4.5
Filter Diameter: 72 mm

Focus
____________________________
Focus Range (from the front of the Lens): Approx. 10 mm to 8
Focus Type: Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point: Max. 475 points (Phase-detection AF)
Focus Recognition Target: Human
Other Focus Features: AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist

Interface
____________________________
Audio Input: 3.5 mm Stereo minijack, XLR 3-pin (Female) x2
Multi Interface Shoe: Yes (With Digital Audio Interface)
Built-In Microphone: Built-in, stereo
Headphone Terminal: Yes (3.5 mm Stereo minijack)
Built-In Speaker: Built-in, monaural
Recording System (Audio): LPCM 4ch (48 kHz 24 bit)
SDI Output: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A / B), HD-SDI
HDMI Output: HDMI connector (Type-A)
TC / UB: Yes
Timecode Input / Output: BNC, TC IN/OUT Switchable
USB Terminal: Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
DC Input: Yes
Remote: Yes (2.5 mm Stereo mini-mini jack)
Remote (Wireless): Yes (Bluetooth remote control)
Wired LAN: Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Wireless LAN (Built-In): Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band))
PC Interface: Mass-storage / MTP
Other Function: FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)

Monitoring
____________________________
Type (Viewfinder): 1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
Number of Dots (Viewfinder): 2 359 296 dots
Magnification (Viewfinder): Approx. 1.07x with 50 mm lens at infinity,-1 m-1
Diopter Adjustment (Viewfinder): -4.0 to +3.0 m-1
Eye Point (Viewfinder): Approx. 22 mm from the eyepiece lens, at -1 m-1
Type (LCD Screen): 8.8 cm (3.5-type) type TFT
Touch Panel (LCD Screen): Yes
Number of Dots (Total) (LCD Screen): 2 764 800 dots

Streaming
____________________________
Protocols: RTMP, RTMPS, SRT
Video Data Format: MPEG-4 AVC / H.264 | MPEG-H HEVC / H.265
Video Resolution: 3840 x 2160 (Using RTMP / RTMPS), 1920 x 1080, 1280 x 720
Audio Data Format: AAC-LC 2ch (16bit 48 kHz)

Accessibility
____________________________
Accessibility Functions: Enlarge Screen, Screen Reader

General
____________________________
Camera Type: Solid-state memory camcorder
Battery: BP-U35, BP-U70, BP-U100
Battery: Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
Power Requirements: DC 19.5 V
Normal Power Consumption: Approx. 20 W
Maximum Power Consumption: Approx. 37 W
Operating Temperature: 0 to 40 °C (32 °Fto 104 °F)
Storage Temperature: -20 to 60 °C (-4 °F to 140 °F)
Battery Operating Time (Continuous Shooting): 90 minutes
Recording Format (Video): XAVC S: MPEG-4 AVC / H.264 | XAVC HS: MPEG-H HEVC / H.265
Mass (Main Body Only): Approx. 1960 g (4 lb 5.1 oz.)
Mass (including Supplied Accessories and Battery): Approx. 2400 g (5 lb 4.7 oz.)
Dimensions (W x H x D): Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)

1x Camcorder zoom ratio 20x, 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
1x AC adaptor
1x Power cord
1x BC-CU1 Battery Charger
1x BP-U35 Rechargeable Battery
1x LCD hood
1x Lens hood
1x Eyecup
1x Microphone holder
1x Cold shoe kit
