UWP-D22K33
Sony
- -2.5%
€ 610,85 VAT excl.

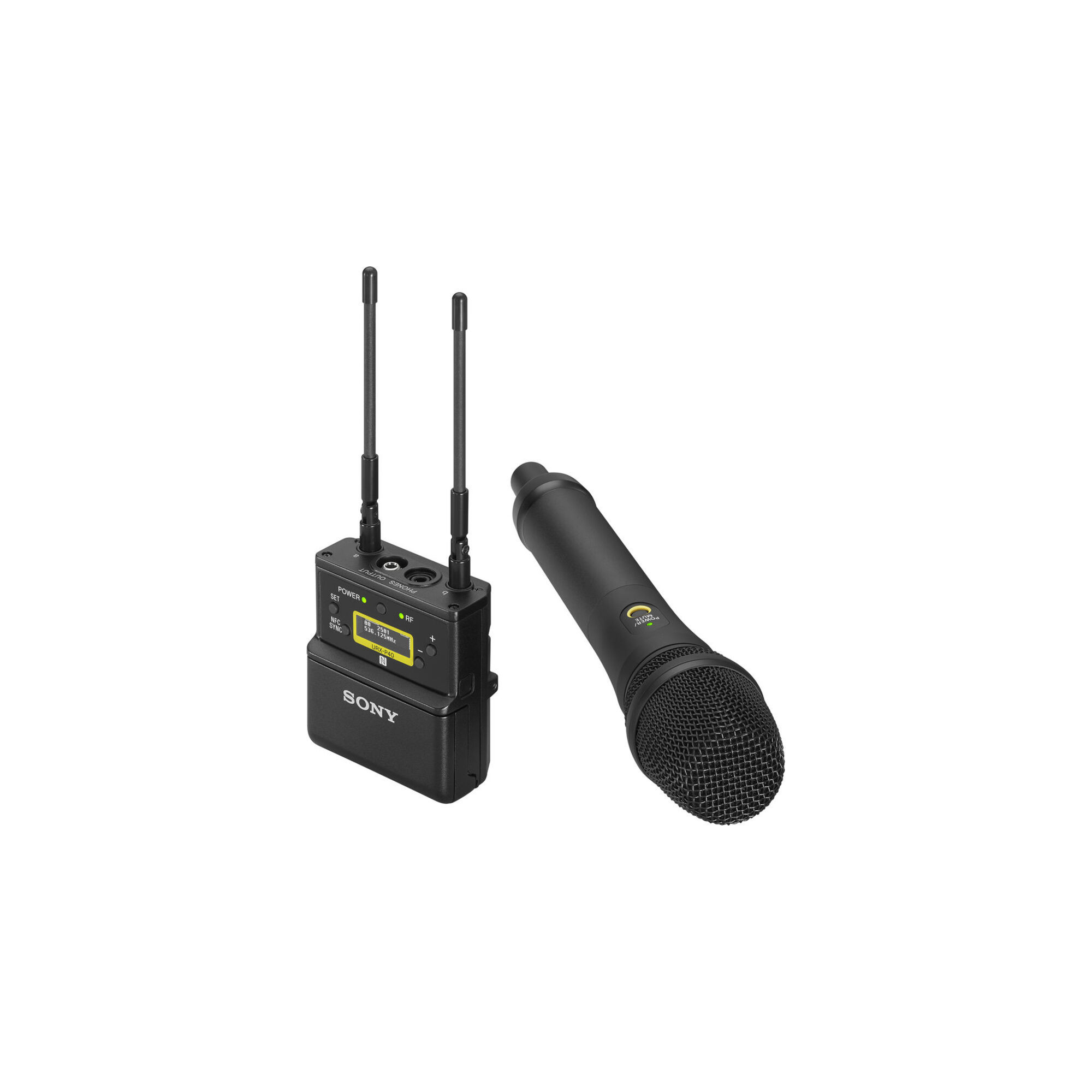

€ 673,50The UWP-D22 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes a handheld mic transmitter equipped with a cardioid capsule optimized for speech. The mic is ideal in situations when it's not convenient to position a lavalier mic or you need to quickly move the mic between several people. The system also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras.
Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select cameras equipped with a digital Multi Interface Shoe. With the UWP-D22, you can focus on the other critical elements competing for your attention during a shoot and confidently record crisp, clear speech or dialog for projects ranging from documentaries to wedding videos, YouTube content, corporate spots, and hands-free interviews.
The UWP-D22 is backward-compatible with Sony WL-800 and UWP Series systems.
SMAD-P2
HHA-SSH
UTX-B40K33
-2.5%SMAD-P5
-2.49%EC-0.46BX
UTX-P40K33
-2.5%RPW 112
-2.5%UTX-M40K21
-2.5%2028-B-SL1
-2.5%Senn WRT 2019Edition - Adcom
Micro USB 5V 2A
EC-1.5BX
XLR M Minijack M - Adcom Cable
System
Wireless Transmission : Analog UHF
Number of RF Channels : 2772
Included Transmitters : 1 x Handheld
Diversity : True Diversity
RF Frequency Band : 566-630MHz
RF Bandwidth : 72 MHz
Frequency Step Size 25 kHz
Max Operating Range: 330'' / 100.6 m (Typical)
Max Systems per Setup : 16
Latency: 0.35 ms
Modulation: FM
Pilot Tone : 32 / 32.382 / 32.768 kHz
Receiver
Form Factor : Camera-Mount
Mounting Options : Shoe-Mount (with Included Hardware)
Antenna : 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels : 1
Audio I/O
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Gain Range -12 to +12 dB (3 dB Steps)
Audio Output Level -60 dBV
Frequency Response 23 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB Type-C (Bus Power)
Power Requirements
Battery Type : 2 x AA (Not Included)
Approx. Battery Life: 6 Hours (Alkaline)
Display & Indicators : 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)
General
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions: 2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
Weight : 6.2 oz / 176.0 g (with Batteries)
Transmitter
Form Factor : Handheld
RF Output Power: 5 / 30 mW
Audio I/O: None
Muting : Off/On Switch
Audio Input Level : -55 dBV (Mic Level)
Gain Range : 0 to 21 dB (3 dB Steps)
Frequency Response : 70 Hz to 18 kHz
Sync Method : NFC
Antenna 1 x 1/4 Wave Wire (Handheld)
Power Requirements
Battery Type : 2 x AA (Not Included)
Approx. Battery Life: 8 Hours (Alkaline)
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
General
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions : 1.9 x 10.2" / 48.0 x 258.0 mm
Weight 9.0 oz / 255.0 g (without Batteries)
Microphone
Form Factor : Handheld Capsule
Sound Field : Mono
Transducer : Dynamic
Polar Pattern: Cardioid
