ECM-MS2

Name: ECM-MS2
Brand: Sony
SKU: ECM-MS2
Price: 335.96 EUR
Availability: OutOfStock

Sony

EAN: 4905524846119

Stereo/Mono Shotgun Microphone with 2x XLR P out

go to the technical sheet

-2.5%

Save 2.5%

€ 335,96

€ 312,52 VAT excl.

€ 344,57

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

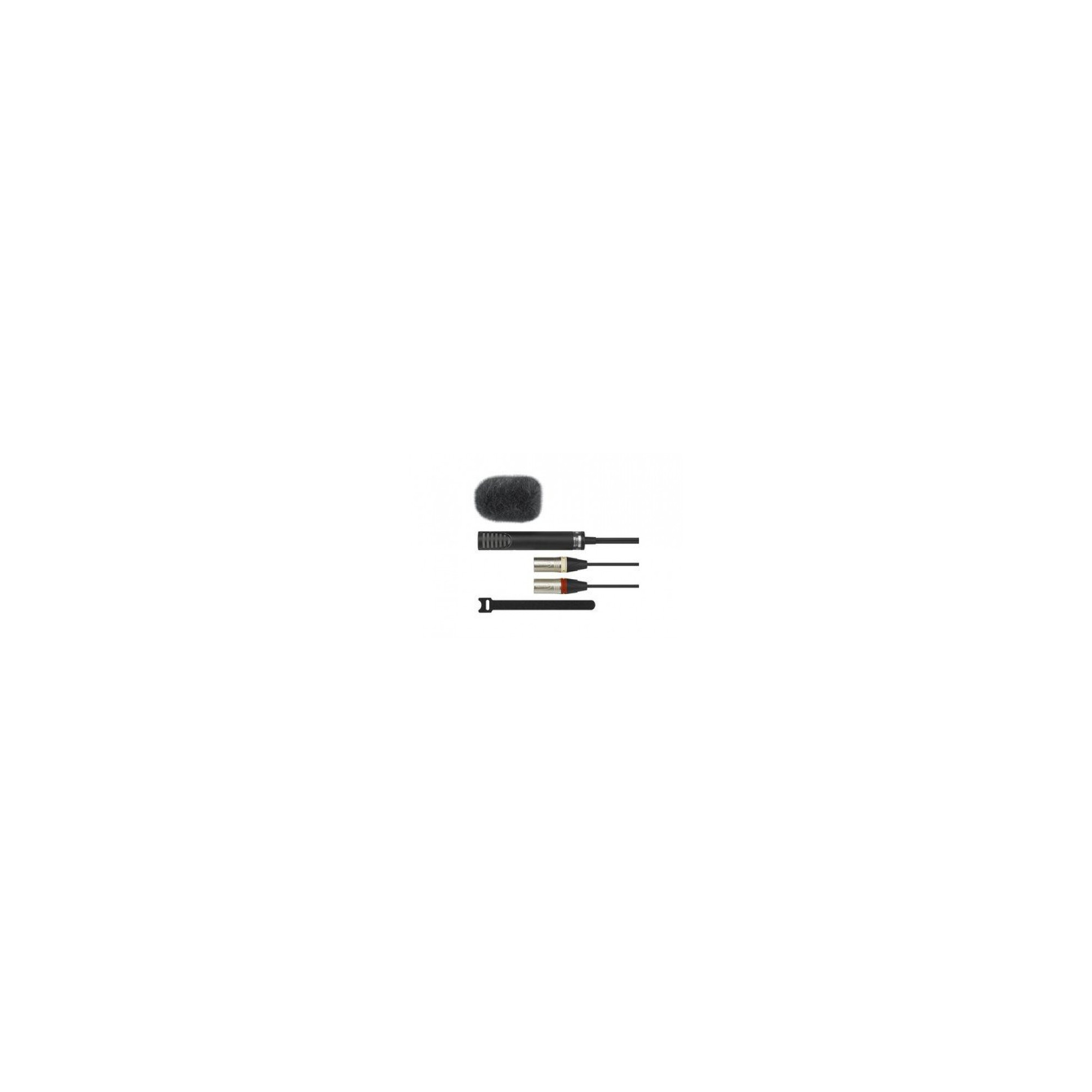

Sony Stereo/Mono Shotgun Microphone, very short metal body (137mm), windjammer, fixed cable, 0,5m, with 2x XLR P out
The ECM-MS2 is an MS stereo electret condenser microphone designed for mounting on professional camcorders equipped with two XLR inputs and phantom powering. The ECM-MS2 delivers excellent sound performance in field and studio production applications at an affordable price. The MS microphone signal of the ECM-MS2 is internally decoded and it provides L and R (stereo) outputs.

The MS2 stereo microphone also supports mono operation by simply unpluging the right channel (disabling phantom power from the right channel XLR connector).

Audio

Adcom Cable

XLR-5MXLR-3F 50 - Adcom Cable

€ 9,35 VAT included

Available in 15 days

Download

Datasheet

Download (215.1KB)

Type : Back electret condenser microphone
Stereo Type : MS (Mid-Side) stereo microphone
Frequency Response Stereo: 80 Hz to 20 kHz
Monaural: 70 Hz to 20 kHz
Dynamic Range : 100 dB or more
Directivity : Uni-directional
Sensitivity: Stereo: -32 dB (0 dB SPL=1 V/Pa, 1kHz)
Outpèut Impendence: 30 ohm ±20%, balanced
Monaural: -36 dB (0 dB SPL=1 V/Pa, 1kHz)
Signal-to-noise Ratio: 69 dB or more (IEC 179 A-weighted, 1 kHz, 1 Pa)
Inherent Noise: 25 dB SPL or less (0 dB SPL=2x10 -5 Pa)
Wind Noise : 45 dB SPL or less (with wind screen) - 65 dB SPL or less (without wind screen)
Maximum Input Sound Pressure Level : 125 dB SPL or more
Output Connector: Cannon XLR-3-12C type x2
Power Supply : External power supply 40 V to 52 V DC (IEC 61938 P48)
Power Consumption : Stereo: 3 mA or less x 2Ch - Monaural: 3 mA or less
Operating Temperature : 0 C to 50 C degrees
Storage Temperature: -20 C to 60 C degrees
Dimensions: 2.4 cm dia x 13.7 cm
Weight: 0.16 kg
