LCM215-HDR+
Osee

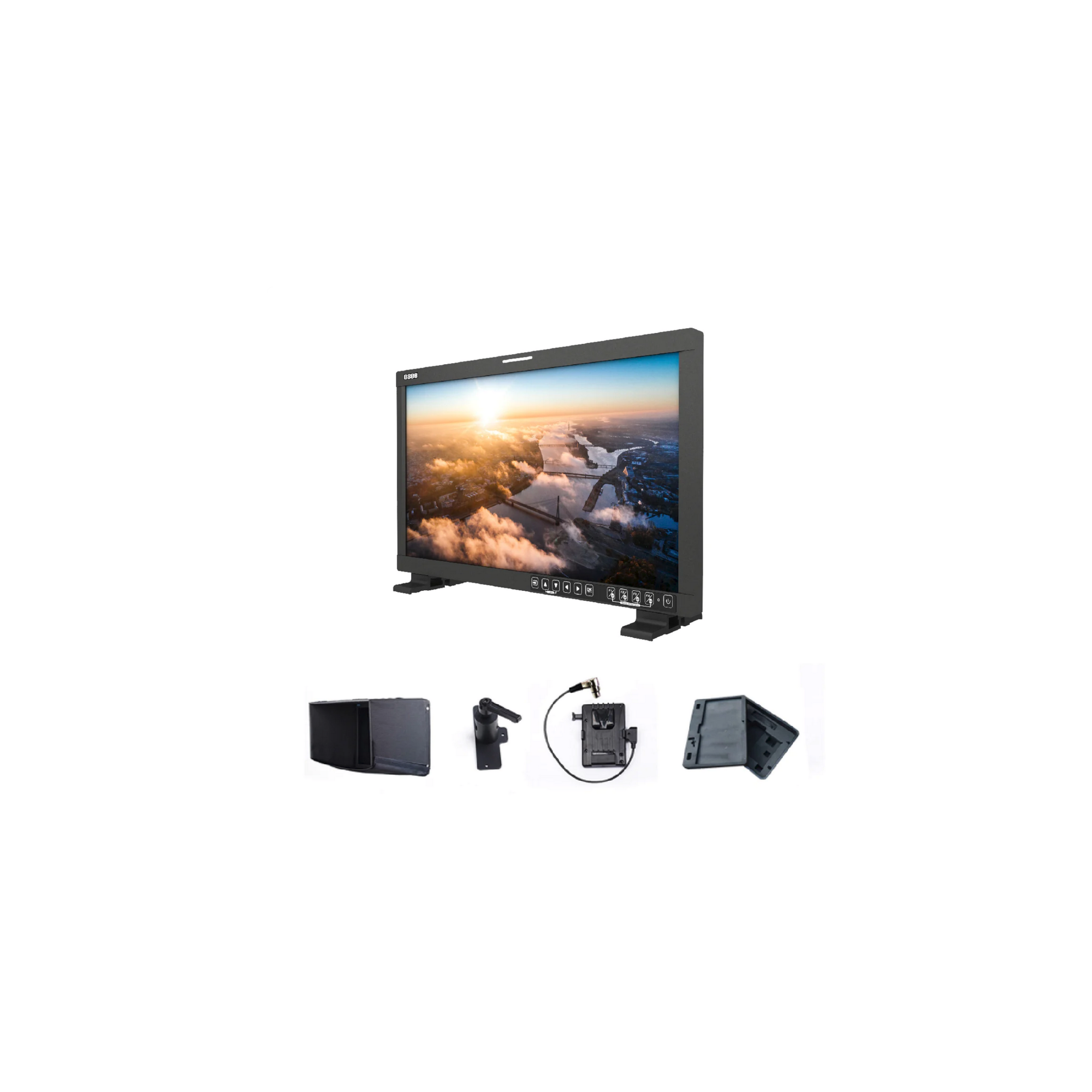

21.5" 1920X1080 resolution, 1500nits HDR Field Production Monitor Kit (V-Mount)
go to the technical sheet
€ 1.133,36
€ 1.054,29 VAT excl.
Osee 21.5" 1920X1080 resolution, 1500nits HDR Field Production Monitor Kit (V-Mount)
° New Upgrade 1500nits Ultra-bright Panel
LCM215-HDR+ is the new upgrade version of LCM215-HDR monitor with a new upgrade panel, this panel not only has the ultra brightness of 1500 nits, but also has a well performed backlight uniformity.
The super 1500nits screen is almost 3-4 times the brightness of other field monitors.
This brightness will allow you to shoot outdoors in direct sunlight without any washing-out of the image on the screen, you may not even need a sunhood while using it.
° Various Connector Types
LCM215-HDR+ monitor has 2Ch 3G/HD/SD-SDI inputs, 1Ch VIDEO input, one HDMI input and 1Ch 3G/HD/SD-SDI output, with these connectors, it supports most of the audio and video formats.
The supported signal formats are detailed in the specification section at the end of this page.
° Various Application Scenarios
LCM215-HDR+ monitor's compatibility makes it suitable for all kinds of applications scenarios, you can put it on a table or use a C-stand adapter to hang it on the rod, it's also compatible with wireless accessories to sending out signals and images to video village.
° Built-in SDR/HDR 3DLUTs
LCM215-HDR+ provides 30 SDR 3DLUTs to convert log mode to REC 709 for most of the major camera brands, including FUJIFILM, GoPro, JVC, Panasonic, RED and Sony.
What's more, LCM215-HDR+ also provides 14 HDR 3DLUTs to further convert log mode to REC 2020 for ARRI, Canon, Panasonic, RED and Sony, it will enhance color brightness and clarity and allows users to check how an HDR image will look like at the shooting location.
° Custom 3DLUTs USB Upload
LCM215-HDR+ allows our user to load their self-making 3D-LUT files by USB flash memory.
Once you synchronize LUTs in the monitor, you can easily change them on production.
Up to 16 customized LUTs can be stored in the system.
° Marker Tools
LCM215-HDR+'s Marker Tool has very rich functions, including Center Marker for enabling easier checking the center portion's focus, Aspect Marker for displaying 2 lines to identify an area with a specified ratio, Area Marker for displaying a rectangle to identify the safety area with a specified percentage and CrossHatch for displaying multiple vertical and horizontal lines to help when the user check the composition of a picture.
What's more, there're assist tools like Marker Fit, Mat Level and Marker Mat to help adjust the outlook of the markers.
° Audio Tools
Up to 16 Channels of SDI embedded or 2 channels of HDMI audio levels can be displayed with a choice of options including level reference settings and gain.
° IMD Display
Once you set everything in the IMD Display menu and turn on IMD Display, the IMD character in the black bar will display on the bottom of the screen.
° New Upgrade 1500nits Ultra-bright Panel
LCM215-HDR+ is the new upgrade version of LCM215-HDR monitor with a new upgrade panel, this panel not only has the ultra brightness of 1500 nits, but also has a well performed backlight uniformity.
The super 1500nits screen is almost 3-4 times the brightness of other field monitors.
This brightness will allow you to shoot outdoors in direct sunlight without any washing-out of the image on the screen, you may not even need a sunhood while using it.
° Various Connector Types
LCM215-HDR+ monitor has 2Ch 3G/HD/SD-SDI inputs, 1Ch VIDEO input, one HDMI input and 1Ch 3G/HD/SD-SDI output, with these connectors, it supports most of the audio and video formats.
The supported signal formats are detailed in the specification section at the end of this page.
° Various Application Scenarios
LCM215-HDR+ monitor's compatibility makes it suitable for all kinds of applications scenarios, you can put it on a table or use a C-stand adapter to hang it on the rod, it's also compatible with wireless accessories to sending out signals and images to video village.
° Built-in SDR/HDR 3DLUTs
LCM215-HDR+ provides 30 SDR 3DLUTs to convert log mode to REC 709 for most of the major camera brands, including FUJIFILM, GoPro, JVC, Panasonic, RED and Sony.
What's more, LCM215-HDR+ also provides 14 HDR 3DLUTs to further convert log mode to REC 2020 for ARRI, Canon, Panasonic, RED and Sony, it will enhance color brightness and clarity and allows users to check how an HDR image will look like at the shooting location.
° Custom 3DLUTs USB Upload
LCM215-HDR+ allows our user to load their self-making 3D-LUT files by USB flash memory.
Once you synchronize LUTs in the monitor, you can easily change them on production.
Up to 16 customized LUTs can be stored in the system.
° Marker Tools
LCM215-HDR+'s Marker Tool has very rich functions, including Center Marker for enabling easier checking the center portion's focus, Aspect Marker for displaying 2 lines to identify an area with a specified ratio, Area Marker for displaying a rectangle to identify the safety area with a specified percentage and CrossHatch for displaying multiple vertical and horizontal lines to help when the user check the composition of a picture.
What's more, there're assist tools like Marker Fit, Mat Level and Marker Mat to help adjust the outlook of the markers.
° Audio Tools
Up to 16 Channels of SDI embedded or 2 channels of HDMI audio levels can be displayed with a choice of options including level reference settings and gain.
° IMD Display
Once you set everything in the IMD Display menu and turn on IMD Display, the IMD character in the black bar will display on the bottom of the screen.
Hardware
Display
Panel Size: 21"
Resolution: 1920X1080
Aspect: 16:9
Brightness: 1500nits
Backlight: White LED
Backlight Life: 50000(Min.)
Contrast: 1000:1
Color Depth: 1.06G
Response Time: 25ms
Data I/O
USB Slot: 3D LUTs upload and Firmware Upgrade (USB under 16G and formatted to FAT32 is recommended)
RS485: cascade RJ45*2
Environmental
Work Temperature: 0°C-40°C
Dimensions: 517.0mmx319.0mmx74.3mm
Power
AC: 100-240V 50/60Hz
DC Battery: 11-16.8V
Power Consumption: 48W
Software
Video Format
- HDMI: 1080p: 29.97/25/23.98 1080PsF: 30/29.97/25/23.98 1080i: 59.94/50 720p: 59.94/50
- SDI: DCI 2K: 59.94/50/29.97/25/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50/29.97/25/23.98 480i: 60 576i: 50
Color Management
Camera LUT: 30 SDR&14 HDR LUTs, Detailed in User Manual
Load LUT File: USB, Up to 16 User LUTs can be Stored
Gamma: PQ, HLG
Color Temperature: D55, D61, D65, D93, DCI, User1, User2
Color Space: ITU709, EBU, SMPTE-C, Native, P3, ITU2020
Audio Tools:
- Audio Source: Embedded/External/No Signal
- Speak Out L/R: Select Channels for Left or Right Speaker, Embedded Signal Only
Meter Display
Meter Select: CH1-2/G1/G2/G3/G4/G1+G2/G1+G3/G1+G4/G2+G3/G2+G4/G3+G4/G1-G4
Meter Position: Left/Right
Display Mode: Simple/with Channel Number&Frame
Meter Opacity: Value 0-100 Adjustable
Frame Tools
Aspect: 16:9/4:3/15:9/14:9/13:9/1.85:1/2.35:1/Variable(Value 1.00-3.00 Adjustable)/Off
Center Marker: On/Off
Area Marker: 80%/85%/88%/90%/93%/95%
Crosshatch: On/Off
Marker Fit: On/Off
Marker Level: On: Area Marker Based on the Current Input/Off: Area Marker Based on the Aspect Marker
Marker Mat: Darkness of the Outside Area of Aspect Marker Off/Half/Black
Scope Tools
Waveform: Mode:LUMA/RGB/Parade; Size&Location:Small&Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down, Middle&Right Down/Center Down/Left Down, Large&Center Down; Opacity: 25%/50%/75%/100%
Vectorscope: Location:Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%
Histogram: Mode: LUMA/RGB; Location: Left UP/Left Center/Left Down/ Center Up/Center Down/Right Up/Right Center/Right Down; Opacity: 25%/50%/75%/100%
Exposure Tools
False Color: Spectrum/SONY Slog3/SONY Slog2/ARRI LogC/Canon Clog2/Canon Clog3/Panasonic Vlog/RED RedLogFilm/RED RL3G10/BMD/BMD 4K/ARRI Rec709/SONY LC709A/SONY LC709/Panasonic V709/RED G3 and RED G4
Zebra: Level 1-100 Adjustable
Focus Tools
Focus Assist: Red/Green/Blue/Mono; Sensitivity Value 0-100 Adjustable
Peaking: Level 1-16 adjustable
Other
Anamorphic: 1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off
Blue Only: Blue/Green/Red
IMD Display: Protocol: TSL3.1/TSL4.0/Local; Color:Red/Green/Yellow; ID Number:0-255; Baud Rate: 2400/4800/9600/19200/38400/57600/115200
Key Inhibit: On/Off
Mono: On/Off
Mute: On/Off
Osd Time: 10/30/60s
Scan: On/Off
LCM215-HDR+ Monitor
Sunhood
V-mount Battery Plate
C-stand Adapter
Custom Foam Mold
Desktop Stand Feet
Power Cable
