MVK504XTWINMC
Manfrotto
₦ 1,968,399.00 VAT excl.
- Fluid video head with 4 steps counterbalance system up to 6.5 kg
- Maximum versatility thanks to the flat base
- Double tube tripod in carbon fiber for greater rigidity
- Lateral plate attachment, 2 Easy links 3/8" with anti-rotation
- Safety standards guaranteed by UNI/PdR 105:2021 compliance

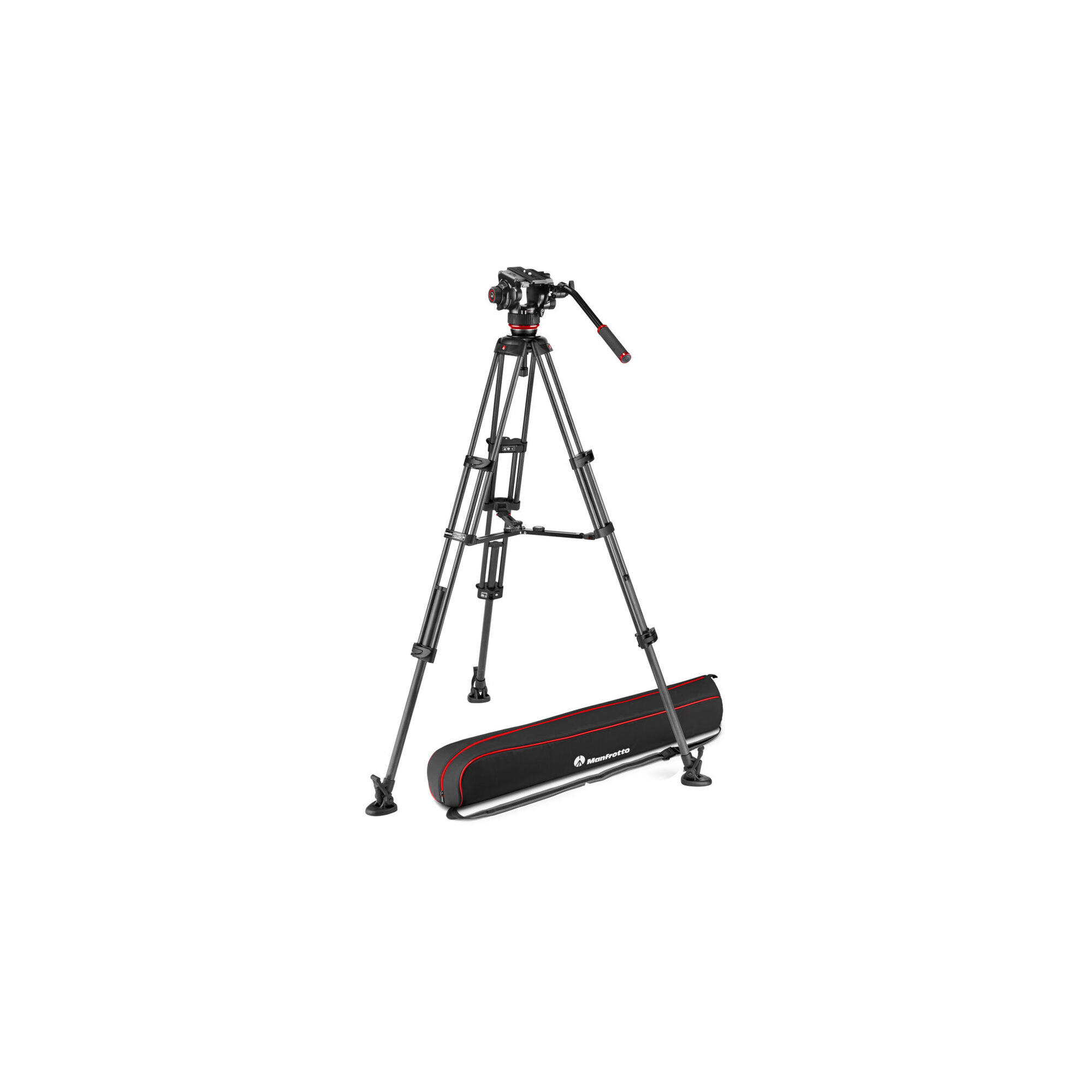

This video system consists of the Manfrotto 504X fluid video head and the double tube tripod in carbon fiber with central stabilizer MVTTWINMC.
The Manfrotto 504X fluid video head with flat base uses the new Manfrotto fluid technology that guarantees greater fluidity and unparalleled stability in both pan and tilt movements.
It is equipped with a 4 steps counterbalance system that supports loads up to 6.5 kg with a C.O.G. of 55 mm.
The head is made in a brand new elegant aluminum design and has a maximum load capacity of 12 kg.
It is a compact and lightweight head with a flat base (75 mm diameter) that allows you to choose between various shooting options.
It is also equipped with two 3/8" Easy link attachments, equipped with an anti-rotation function that allows you to connect external monitors or other accessories.
The Easy link is equipped with a cap to avoid cutting yourself during use. The lateral locking mechanism of the sliding plate allows you to fix the camera easily, quickly and safely.
The head can be fixed to the tripod thanks to the special 75 mm hemisphere.
The MVTTWINMC double-tube carbon fiber video tripod with central stabilizer is a professional tripod with an extremely rigid and stable two-stage structure, ideal for any type of work.
It is a must-have in the equipment of those who want to make professional-level videos and films.
It has a 100 mm die-cast aluminum cradle and is equipped with an adapter, also in aluminum, that allows you to switch to a 75 mm cradle.
The tripod features a central spreader with telescopic arms to set the leg angles precisely.
The spreader can also be removed, allowing the tripod to be used with the Manfrotto 165MV ground spreader, sold separately.
The leg locks are safe and reliable, while the rubberized spikes ensure stable positioning.
For maximum versatility, the tripod can be used with various types of dollies (114MV and 181B).
Combining a solid structure with various compatibility options, this tripod is truly complete.
*A dedicated padded transport bag is included.
MVAPANBARL
R102130
MVAPANBARM
114MV
181B
504PLONG
Material: Carbon Fiber
Counterbalance System: Variable Steps
Maximum load: 12 kg
Counterbalanced weight: 2.2, 4.4, 6.5 kg
Maximum height: 169 cm
Minimum height: 75 cm
Base diameter: 75 mm
Bubble level: 1
Centre of gravity: 55 mm
Closed length: 86 cm
Colour: Black
Upper attachment: 1/4" screw, 3/8" screw
Base type: Flat
Powered by (batteries): Lithium
Easy Link: Yes (with anti-rotation)
Front tilt: -70° / +90°
Head type: Fluid video head
Leg type: Double tube
Lock type: Lever
Leg sections: 3
Maximum working temperature: 60°C
Temperature working temperature: -30°C
Pan Bar included: Yes
Pan Drag: Adjustable from 0 to maximum level
Panoramic rotation: 30°
Tilt Drag: Adjustable from 0 to maximum level
Weight: 5.3 kg
