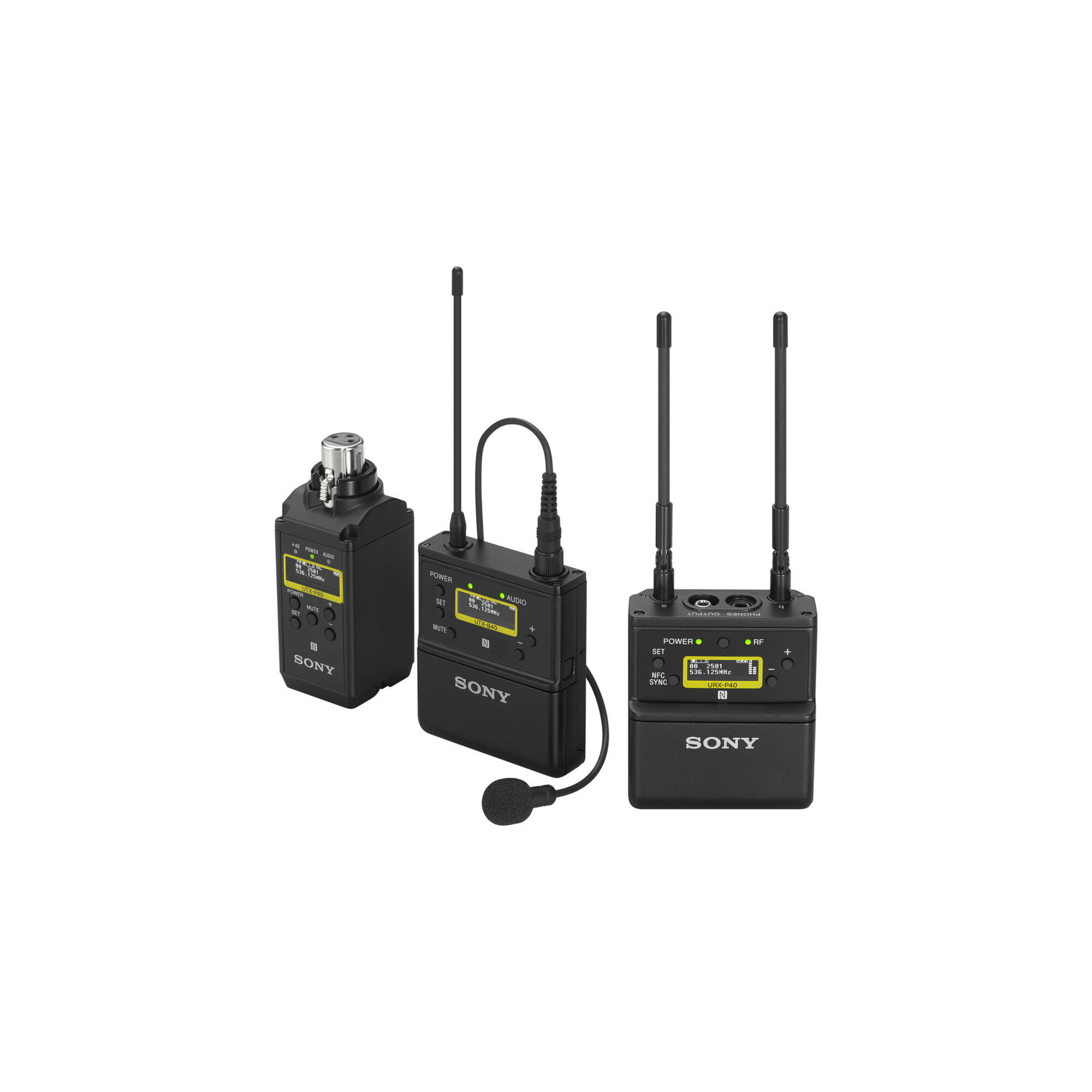

UWP-D26K33

System
Wireless Transmission Analog UHF
Number of RF Channels 2772
Included Transmitters 1 x Bodypack
1 x Plug-On
Diversity True Diversity
RF Frequency Band 566-630MHz
RF Bandwidth 72 MHz
Frequency Step Size 25 kHz
Max Operating Range 330'' / 100.6 m (Typical)
Max Systems per Setup 16
Latency 0.35 ms
Modulation FM
Pilot Tone 32 / 32.382 / 32.768 kHz
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Gain Range -12 to +12 dB (3 dB Steps)
Audio Output Level -60 dBV
Frequency Response 23 Hz to 18 kHz
USB/Lightning Connectivity 1 x USB Type-C (Bus Power)
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 6 Hours (Alkaline)
Display & Indicators 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 2.7 x 3.2 x 0.9" / 68.0 x 82.0 x 23.8 mm (without Antennas)
Weight 6.2 oz / 176.0 g (with Batteries)
Transmitter
Form Factor Bodypack
RF Output Power 5 / 30 mW
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Muting Mute Switch
Audio Input Level +60 dBV (Mic Level)
+4 dBu (Line Level)
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 23 Hz to 18 kHz
Sync Method NFC
Antenna 1 x 1/4 Wave External, Fixed
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing Metal
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Dimensions 2.5 x 3.2 x 0.8" / 63.0 x 82.0 x 20.0 mm (without Antennas)
Weight 5.3 oz / 149.0 g (without Batteries)
Microphone
Form Factor Lavalier
Sound Field Mono
Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 40 Hz to 20 kHz
Sensitivity -43 dB at 1 kHz
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 3.9'' / 1.19 m
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 131°F / -20 to 55°C
Length 0.77" / 19.5 mm
Diameter 0.27" / 6.8 mm
Weight 0.57 oz / 16.2 g
Transmitter 2
Form Factor Plug-On
RF Output Power 5 / 40 mW
Audio I/O 1 x XLR 3-Pin Female Input (Lockable)
Phantom Power +48 V
Muting Off/On Switch
Audio Input Level -60 dBV
Gain Range 0 to +48 dB (3 dB Steps)
Frequency Response 23 Hz to 18 kHz
Sync Method NFC
Antenna 1 x Internal
Power Requirements Battery, Bus Power (USB)
Battery Type 2 x AA (Not Included)
Approx. Battery Life 6 Hours (Alkaline)
USB/Lightning Connectivity 1 x USB Type-C (Bus Power)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing Metal
Dimensions 1.5 x 3.9 x 1.5" / 38.0 x 98.0 x 38.0 mm
Weight 4.9 oz / 139.0 g (without Batteries)
