EW-DP ME4 SET R1-6

Name: EW-DP ME4 SET R1-6
Brand: Sennheiser
SKU: EW-DP ME4 SET R1-6
Price: 1190830 NGN
Availability: InStock

Sennheiser

EAN: 4044155270464

Handheld Wireless Digital Lavalier Microphone Kit (R1-6: 520 to 576 MHz)

go to the technical sheet

₦ 1,190,830.00

₦ 1,107,749.00 VAT excl.

Available 1 unit in 4 Days

Manuale: Download

Not sure if this is the right product for you? Talk to a consultant

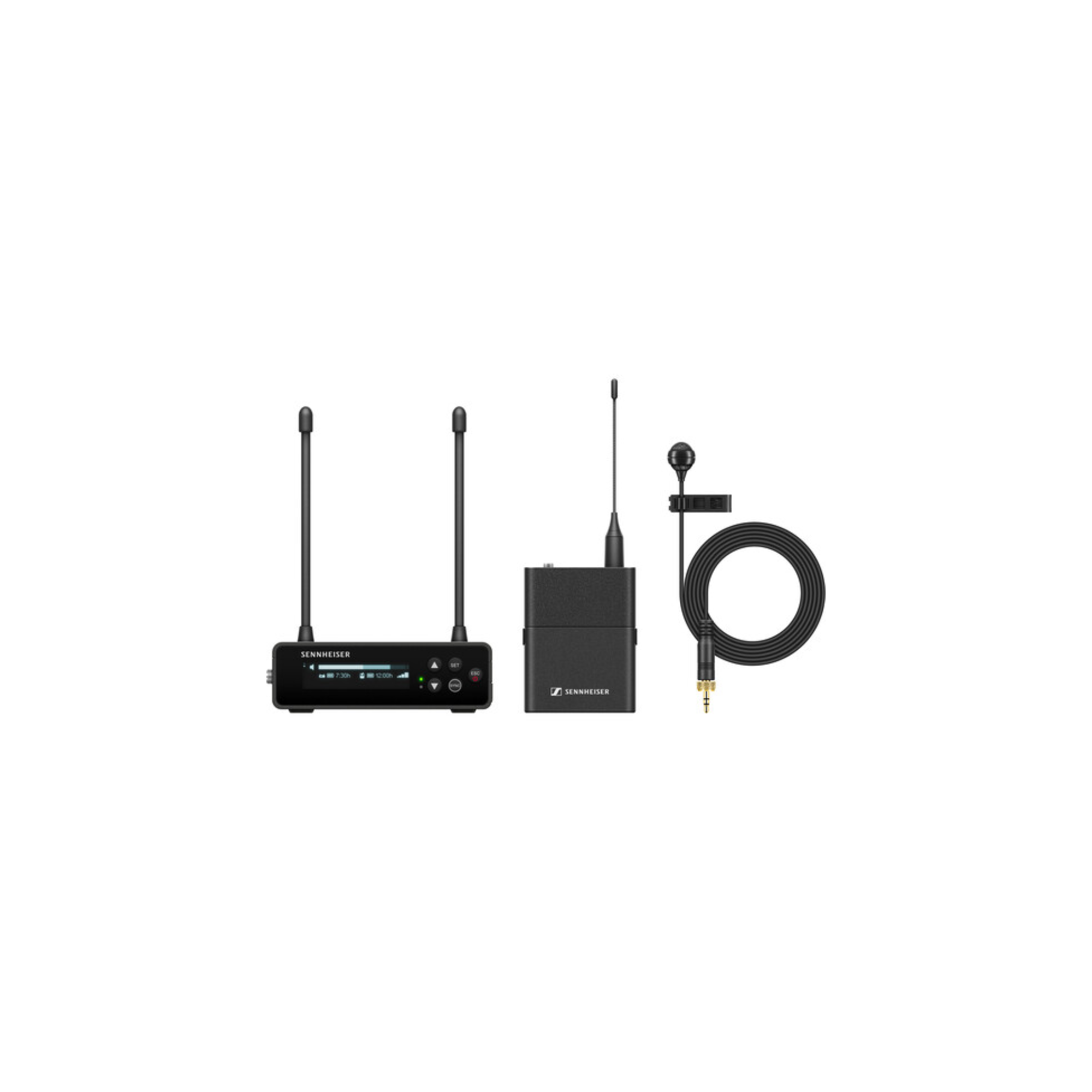

Sennheiser EW-DP ME 2 SET Camera-Mount Digital Wireless Omni Lavalier Mic System (R1-6: 520 to 576 MHz) - 700022

° Streamline Your Audio with Setup Simplicity and Digital Clarity
Purpose-built for content creators, videographers, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP ME 2 SET with ME 2 Omnidirectional Lavalier is a camera-mount, fully digital wireless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera. This configuration includes an EW-DP EK camera-mount, single-channel receiver with mounting kit, a lightweight EW-D SK bodypack transmitter with unobtrusive ME 2 omnidirectional lavalier mic, plus 3.5mm and XLR output cables to connect the receiver to a DSLR/mirrorless camera or to a recorder or mixer.

Easy to set up and simple to operate, the EW-DP's pro-level features provide an intuitive user experience for first-time and experienced users alike.
With a remarkable 134 dB dynamic range, the transmitter can handle just about any input level you throw at it without having to worry about setting the input gain to prevent clipping.
The receiver's wide 56 MHz bandwidth, intelligent switching diversity reception with two antennas, and auto-scan with 2240 frequencies work to provide rock-solid wireless performance, even in challenging RF environments.
Bluetooth capabilities allow you to remotely sync components and change settings from your phone, using the Smart Assist app, while Smart Notifications provide you with troubleshooting and system guidance.
Intelligent battery management gives you extended operating time on set with up to 12 hours on transmitter and 7 hours on receiver.

° EW-DP ME 2 SET at a Glance
Fully digital UHF wireless microphone system for video applications
EW-DP EK portable, single-channel receiver
EW-D SK bodypack transmitter with ME 2 omnidirectional lavalier mic
56 MHz bandwidth with 2240 available frequencies for flexibility in any RF environment
Industry leading 134 dB dynamic range for distortion-free transmission
Exceptionally low latency (1.9 ms)
Smart Assist app for monitor and control (iOS/Android)
Integrated Bluetooth for synchronization and control
Smart Notifications for troubleshooting and system guidance
3.5mm headphone output on transmitter
Intelligent battery management provides optimized operating time
Extended battery life: up to 12 hours on transmitter, 7 hours on receiver
External charging and powering via USB-C (receiver only)
Magnetically stackable components for versatile mounting

Microphones Wireless Microphones - Accessories

Sennheiser

EW-D SK R1-6

₦ 538,036.00 VAT included

Available in 14 days

Sennheiser

EW-D CHARGING SET

₦ 303,060.00 VAT included

Available 3 unit in 4 Days

Sennheiser

EW-D SKM-S R1-6

₦ 543,196.00 VAT included

Available in 14 days

Sennheiser

EW-DP MOUNTING PLATE

₦ 58,694.00 VAT included

Available in 14 days

Sennheiser

EW-DP EK R1-6

₦ 607,696.00 VAT included

Available in 14 days

Sennheiser

BA 70

₦ 106,746.00 VAT included

Available 1 unit in 4 Days

Sennheiser

L 70 USB

₦ 129,214.00 VAT included

Available in 11 days

Download

Manuale

Download (24.09MB)

System
_____________________________
Wireless Technology: Digital UHF
Number of RF Channel Frequencies: 2240
Included Transmitters: 1 x Bodypack
Diversity: Intelligent Switching Diversity
RF Frequency Band: 470 to 526 MHz
RF Bandwidth: 56 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1'' / 100 m (Line of Sight)
Max Transmitters per Band: 58
Built-In Recorder: No
Mobile App Compatible
° Yes: Android & iOS
° App Name: Sennheiser Smart Assist
Functionality: Adjust Settings, Remote Control, Setup
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth Operating Distance:
° 120'' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Dynamic Range: 134 dB
Encryption: None

Receiver
_____________________________
Receiver Type: Camera-Mount
Mounting Options:
° Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
Antenna: 2 x 1/4 Wave Rod, Fixed
Number of Audio Channels: 1
Audio I/O:
° 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
° 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
(Lockable)
Audio Output Level:
° 1/8" / 3.5 mm Output:
° 2 dBV (Max, Unbalanced)
Frequency Response: 20 Hz to 20 kHz ±3 dB
Network I/O: None
Word Clock I/O: None
USB/Lightning Connectivity: 1 x USB-C Female (Bus Power, Charging)
RF Output Power: 10 mW (EIRP)
Power Requirements: Battery, Bus Power (USB)
Battery Type:
° 2 x AA (Included)
° 1 x Sennheiser Battery Pack (Included)
Approx. Battery Life: 7 Hours
Display & Indicators:
° 1 x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
Weight: 0.3 lb / 140 g

Transmitter
_____________________________
Transmitter Type: Bodypack
RF Output Power:
° 10 mW (ERP)
° Up to 10 mW (EIRP)
Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
Muting: Mute Switch
Audio Input Level: 2 to 4.35 V RMS
Auto-Level Control: No
Frequency Response: 20 Hz to 20 kHz
Sync Method: Bluetooth
Antenna: 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements: Battery
Battery Type:
° 2 x AA (Included)
° 1 x Sennheiser Battery Pack (Included, Replaceable)
Approx. Battery Life:
° 8 Hours (Alkaline)
° 12 Hours (Sennheiser Battery Pack)
Display & Indicators:
° 1 x LED (Mute)
° 1 x LED (Sync)
Housing: Metal
Dimensions: 2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
Weight: 4.2 oz / 120 g (without Batteries)

Microphone
_____________________________
Microphone Type: Lavalier
Color: Black
Sound Field: Mono
Capsule Electret: Condenser
Polar Pattern: Omnidirectional
Frequency Range: 50 Hz to 18 kHz
Equivalent Noise Level: 32 dB
Maximum SPL: 130 dB SPL
Sensitivity: 17 mV/Pa at 1 kHz
Output: 1 x 1/8" / 3.5 mm TRS Male (Lockable)
Cable Length: 5.2'' / 1.6 m
Operating Voltage: 7.5 V
Charging Case: Capacity: Not Specified by Manufacturer

Packaging Info
_____________________________
Package Weight: 1.78 lb/ 807 g
Box Dimensions: 12.7 x 8.3 x 3.1"/32 x 21 x 8 cm

1x EW-DP EK Digital Wireless Receiver (R1-6: 520 to 576 MHz)
1x EW-D SK Digital Wireless Bodypack Transmitter (Q1-6: 470 to 526 MHz)
1x ME 4 Cardioid Lavalier Microphone with 3.5 mm Locking Connector (Black)
1x CL 35 TRS Locking 3.5 mm TRS to 3.5 mm TRS Coiled Cable
1x CL 35-XLR Right-Angle Locking 3.5 mm TRS to XLR Male Coiled Output Cable
1x USB-C Charging Cable
1x Sennheiser BA 70 Rechargeable Battery Pack for EW-D Handheld and Bodypack Transmitters
2x AA Batteries
1x Mounting Kit (Cheeseplate, Cold Shoe, Belt Clip, Screws)
