EW-DX MKE 2 835-S SET Q1-9

Name: EW-DX MKE 2 835-S SET Q1-9
Brand: Sennheiser
SKU: EW-DX MKE 2 835-S SET Q1-9
Price: 4330314 NGN
Availability: OutOfStock

Sennheiser

EAN: 4044155260069

Dual Channel Digital Wireless System Set (Q1-9: 470 to 550 MHz) - 509328

go to the technical sheet

₦ 4,330,314.00

₦ 4,028,199.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

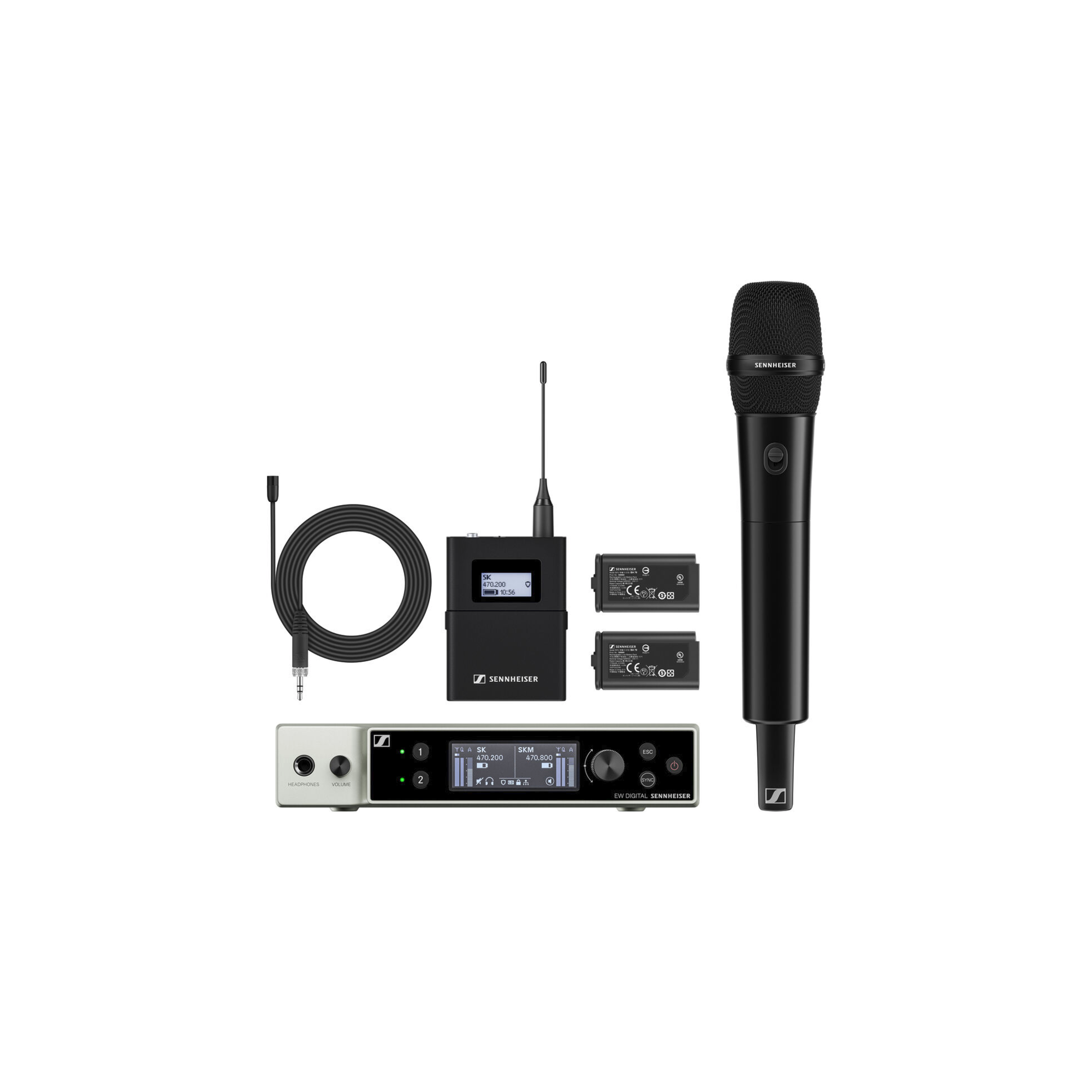

Sennheiser SET Dual-Channel Digital Combo Wireless System with Omni Lavalier and Handheld Mic (Q1-9: 470 to 550 MHz) - 509328

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX MKE 2-835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality.
This configuration includes a dual-channel, 1/2-rack receiver, a bodypack transmitter with subminiature MKE 2 omnidirectional lavalier mic, and a handheld transmitter/mic with mute switch and MMD 835 cardioid capsule.

With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them.
The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments.
Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups.
The EW-DX is backward-compatible with EW-D components.

° Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels
- The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
- Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
- The equidistant tuning grid removes the need for frequency coordination and allows you to add additional transmitters and receivers for up to 134 mic channels simultaneously.
- For complex systems requiring even more mics, engage the Link Density mode for up to 269 channels on the same system.

° Bodypack Transmitter with Mute Switch, e-Ink Display, and MKE 2 Omni Lav Mic
- The rugged, all-metal compact bodypack transmitter is equipped with a lockable mute button along with function buttons that allow you to control all the transmitter's settings directly from the device.
- The sweat-resistant, subminiature MKE 2 lavalier microphone offers a pristine, broadcast-quality sound and is easy to conceal. It features a forgiving omnidirectional pickup pattern that captures sound equally well in every direction, for a consistent voice level, even when moving your head. The lav plugs into the locking 3.5mm connector on the bodypack transmitter, ensuring that it doesn't detach at a critical moment.
- The persistent e-Ink display helps you quickly name and identify the transmitters and allows you to see parameters, even when the unit is powered off.
- The transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

° Handheld Transmitter with Mute Switch, MMD 835 Capsule, and e-Ink Display
- The rugged, all-metal handheld transmitter is also equipped with a lockable mute switch along with function buttons that allow you to control all the transmitter's settings directly from the mic.
- The MMD 835 dynamic capsule features a cardioid polar pattern that helps minimize background noise and feedback. The interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid.
- The persistent e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
- The handheld transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

System
Wireless technology: UHF digital
Number of RF channel frequencies: 3200
Transmitters included:
- 1 body pack
- 1 handheld
Diversity: Intelligent switching diversity
RF frequency band: Q1-9: 470.2 to 550 MHz
RF Bandwidth: 80 MHz
Frequency step size: 25 kHz
RF Channel Scan: Automatic scanning
Maximum operating range: 328.1''/100 m (line of sight)
Maximum number of transmitters per band: 269
Built-in Recorder: No
Compatible with mobile app:
Yes: Android and iOS
App name: Smart Assist
Functionality: Remote Control
*As of September 2022: Check with the manufacturer for the most up-to-date compatibility
Operating System Compatibility:
Windows 10
macOS 11 or later
*As of July 2023: Check with the manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth operating distance: 120''/36.6m (transmitter sync, app control)
Sample rate/resolution: 24 bit
Latency: 1.9 ms
Dynamic range: 134dB
Encryption: AES 256

Receiver
Receiver Type: Desktop/Rack Mount
Mounting Options: Rack Mount (with hardware included)
Rack Mount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/4" wave rods, BNC (rear mount)
Number of audio channels: 2
Audio I/O:
- 2 x 3-pin XLR male balanced outputs
- 2 x 1/4" TS female unbalanced outputs
Audio Output Level:
° +18 dBu (maximum)
° +12 dBu (maximum)
Frequency response: 20 Hz to 20 kHz +3 dB
Network I/O: 1 RJ45
I/O Word Clock: No
USB/Lightning Connectivity: No
Stand-alone audio interface capability: No
RF Output Power: 10mW (EIRP)
Power Requirements: AC/DC power adapter, PoE
AC/DC power adapter: 11 to 13V DC (included)
DC Input Power: 12V DC
AC input power: 100 to 240 V AC, 50/60 Hz
Display and indicators: 1 x OLED (AF level, channel, frequency, output level, RF level, transmitter battery status)
Housing: Metal
Operating temperature: -10 to 55°C / 14 to 131°F
Operating Humidity: 5 to 95%
Dimensions: 8.3 x 1.7 x 7.4 inches / 212 x 44 x 189 mm
Weight: 2.2lbs/1kg (without antenna)

Transmitter
Transmitter type: portable
RF Output Power:
- 10mW (ERP)
- 10mW (EIRP)
Audio I/O: No
Cable Connector Included: No
Mute: Mute switch
Audio Input Level: 2 to 4.35V
Automatic level control: No
Frequency response: 20 Hz to 20 kHz -3 dB
Sync method: Bluetooth
Antenna: 1 internal (portable)
Power Requirements: Battery
Battery Type:
- 1 Sennheiser battery pack (included)
- 2 AA (not included)
About. Battery life:
- 12 hours (Sennheiser battery pack)
- 8 hours (alkaline)
Display and indicators: 1 x backlit LCD (battery status, mute)
Housing: Metal
Operating temperature: -10 to 55°C / 14 to 131°F
Operating Humidity: 5 to 95%
Dimensions: 2 x 10.6" / 50 x 268 mm
Weight: 304g

Microphone
Microphone type: Portable capsule
Black colour
Sound field: Mono
Capsule: Dynamic
Polar pattern: cardioid
Maximum SPL: 154 dB SPL
Sensitivity: 2.1 mV/Pa

Transmitter 2
Transmitter Type: Bodypack
RF Output Power:
- 10mW (ERP)
- 10mW (EIRP)
Audio I/O: 1 x 3.5mm TRS Female Input (Block)
Mute: Mute switch
Audio Input Level: 2 to 4.35V
Automatic level control: No
Frequency Response: 20Hz to 20kHz
Sync method: Bluetooth
Antenna: 1 x flexible whip, fixed (pouch)
Power Requirements: Battery
Battery Type:
- 1 Sennheiser battery pack (included)
- 2 AA (not included)
About. Battery life:
- 12 hours (Sennheiser battery pack)
- 8 hours (alkaline)
Operating temperature: -10 to 55°C / 14 to 131°F
Operating Humidity: 5 to 95%
Size: 2.5 x 3.3 x 0.8 inch / 63 x 85 x 20 mm
Weight: 4.2 oz / 120 g (without batteries)

Microphone 2
Second type of microphone: Lavalier
Black colour
Sound field: Mono
Capsule: electret capacitor
Polar pattern: omnidirectional
Frequency range: 20Hz to 20kHz

Sennheiser EW-DX MKE 2-835-S SET Dual-Channel Digital Combo Wireless System with Omni Lavalier and Handheld Mic (Q1-9: 470 to 550 MHz)
Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver (Q1-9: 470 to 550 MHz)
Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-9: 470 to 550 MHz)
Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)
Sennheiser MKE 2 Gold Series Subminiature Omnidirectional Lavalier Microphone with Locking 3.5mm Connector & Accessories (Black)
Lavalier Mic Clip
Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
2x Rod Antenna
GA 3 Rackmount Set
4x Rubber Feet
Sennheiser NT 12-5 CW+ Universal Power Supply for EW-D EM Wireless Receiver
