PXW-Z90VC
Sony
₦ 4,949,149.00 VAT excl.

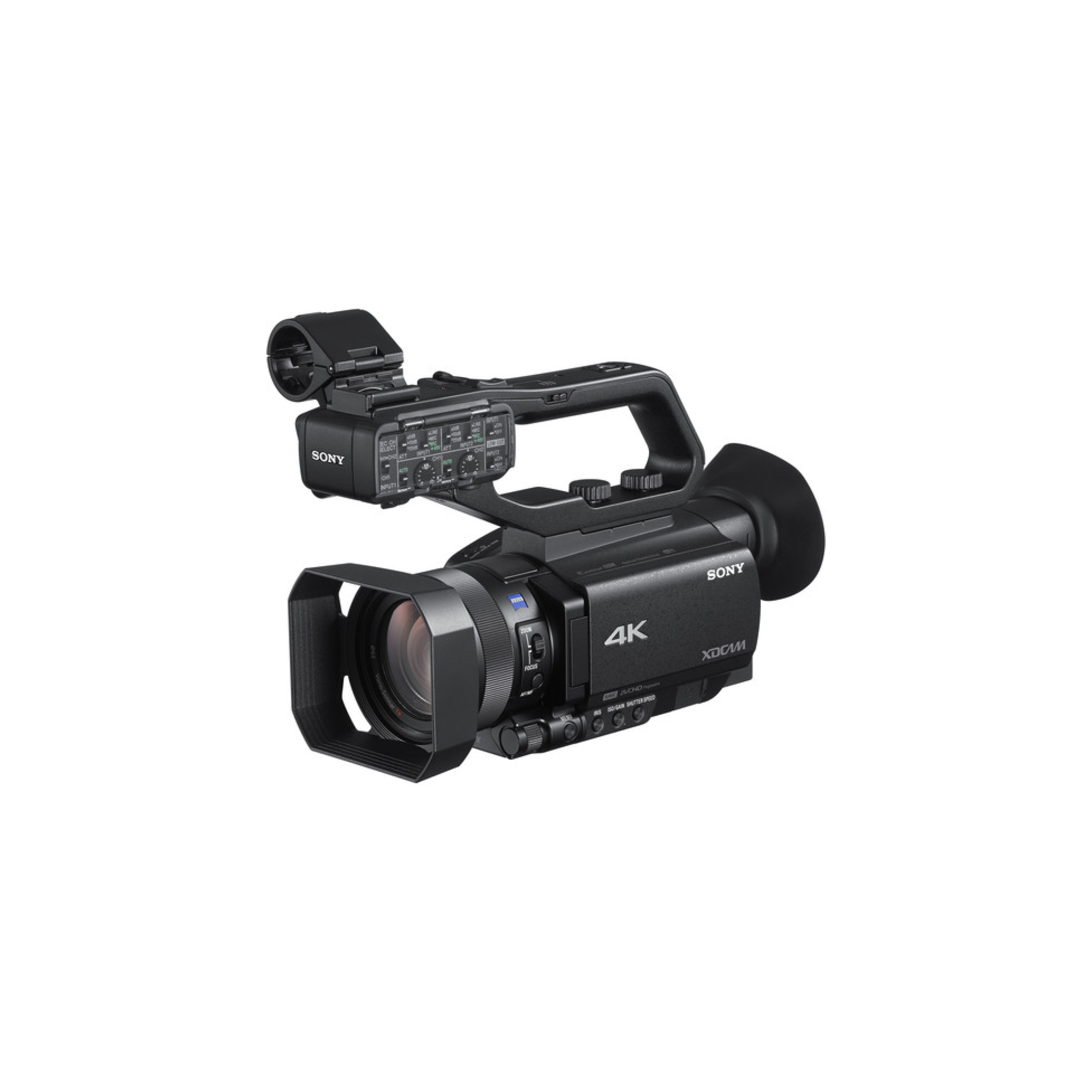

The Sony PXW-Z90V 4K HDR XDCAM camcorder offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body.
Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1" Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor.
It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key).
S-Log3/S-Gamut3 functions offer users additional image control. Additional features include built-in 2.4/5 GHz for multiple streaming via RTMP/RTMPS protocols and FTP options.
The PXW-Z90V's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking—a boon when shooting UHD 4K, especially for individual operators.
In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus.
The PXW-Z90V's 3.5" touchscreen is used to quickly switch focus among subjects.
AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.
Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.
The PXW-Z90V camera supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long recording of 4K UHD video at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p.
Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay mode to create a backup.
The PXW-Z90V's 3G-SDI output offers integration with professional studio environments.
The PXW-Z90V provides external microphone support via two 3-pin XLR audio inputs (line, mic, mic +48V phantom) and a 3.5mm mini input. You can also use the PXW-Z90V's built-in microphone to record audio when shooting.
For multicamera productions, the PXW-Z90V integrates seamlessly with Sony's MCX-500 live switcher (available separately).
MVK504XSNGFC
MVKBFRL-LIVE
MVK504XTWINMA
MVKBFRTC-LIVE
MVK504XTWINGC
MVK608TWINMC
MVK608SNGFC
Focus 8 - KF08-RLM
MVK502AM-1
MVK504XTWINGA
MVK608TWINGC
MVKBFRT-LIVE
MVH502A546BK-1
MVK504XTWINFA
Cobra 2 Strike A150S
MVK608TWINFA
Focus 8 Sistema 3-St CF
GA-05VTS
Focus 8 - KF08-RLG
MVK500190XV
MVK608TWINMA
MVK500AM
128RC755XBK
MVK608TWINGA
MVK504XTWINMC
Focus 8 KSDS08-A
MVK608TWINFC
MVMXPROA4
SF-B60
9.VE5090
9.VD5089S
MC1990A
9.XA1008
035
9.VG5096D
9.XA10071
9.VB5081A-H
9.XA1015
9.VP5081E
9.XS1005
9.VE5091
9.VD5089XS
9.VB5080
SC-01
9.VA5099
9.XA10075
9.XL1012
9.VB5105
9.VE5085
9.XA1018
9.VP5081A
9.VG5096A
9.VP5081
9.XG1029
9.XA10072
244microKIT
9.XS1006
9.VP5081B
C150
9.VD5089M
9.VD5095
C1575B
9.VP5081C
9.XA1016
9.XA1017
9.VG5096
9.VP5081D
9.XR1011
9.VB5083
Arm Mini
9.XS1004
SmartCAM Matrix One Basic
Dovetail Clamp
XSW-D Vocal Set
SMAD-P2
XSW-D Instrument Base Set
UWP-D27K33
UWP-D27K21PRO
XSW-D Lavalier Set
UWP-D27K21
XSW-D Presentation Base Set
XSW-D XLR base Set
XSW-D Portable ENG Set
XSW-D Portable Base Set
Senn to WRT 2019Edition - Adcom
044
BC-TRV.CEE
LC-D421F KIT
Micro USB 5V 2A
149043046
MD 42
NTG-2
ECM-MS2
ECM-77B
MKH 416 P48 U3
E614
E865
ECM-678
MKE-440
E825S
ECM-44B
SM11-CN
NTG-8
NTG-1
AT875R
ECM-VG1
NTG-3
ECM-680S
ECM-674
ECM-673
PXW-Z90HXR-NX80
Orca OR-102
CBK-NA1
UV-C BOXER
RM-VPR1.CE7
RM-30BP
RM-1BP
MVR901EPLA
VZ-Rock
ZFC-L
Mars T1000
LH5P II
S-2712
MB PL-RL-A55
MB PL-RL-A50
CAR-PXWZ90
MB PL-CL-S
MB PL-CL-M
MB PL-CL-L
Spark Plus IO SDI Converter
Spark Plus IO 4K Converter
Mini Crane M1 III
Smart3 PRO BASIC Dolly
Genie II Pan Tilt
KC Pocket Jib traveler
KJ102 JibO Kit
KC Pocket Jib pro WO swivel
Shark Slider S1 Bundle
Motion S1A3 Bundle B2
Genie II Linear
EzFx Jib Kit 120 - EzFx
UVC-02
CBKZ-SLMP
VMC-UAM2
CBKZ-WTCL
I-Cuff Pro
IP10
X25901871
MRW-S1
NP-FV70A2.ECN
NP-FV50A.ECN
NP-FV100A2.CE
MDR-75061
HD 280 Pro
COSMO C1
Mars 400S PRO II
CIAK STD
BK-PXWZ90
Boom A320 Zeppelin ME-66 - Sennheiser
Boom A320 Zeppelin MKH-416 - Sennheiser
Boom AL205 Zeppelin NTG-3 - Rode
Boom AL300 Zeppelin NTG-3 - Rode
Boom AL300 Zeppelin - Rode
Boom AL205 Zeppelin - Rode
Camera
Sensor 1.0"-type (13.2 mm x 8.8 mm), back-illuminated Exmor RS CMOS sensor
Built-In ND Filters Clear, 1/4, 1/16, 1/64
Effective Pixels (16:9): 14.2 MP (approximate)
(3:2): 12.0 MP (approximate)
Gain -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC
Minimum Illumination With 33 dB Gain:
Standard 60i: 3 lux (1/60 second)
Standard 50i: 3 lux (1/50 second)
LowLux 60i: 1.7 lux (1/30 second)
LowLux 50i: 1.7 lux (1/25 second)
Shutter Speed 60i: 1/8 - 1/10,000
50i: 1/6 -1/10,000
24p: 1/6 - 1/10,000
Slow & Quick Motion Function 60i 2160p: 1,2,4,8,15,30 fps
50i 2160p: 1,2,3,6,12,25 fps
60i 1080p: 1,2,4,8,15,30,60,120 fps
50i 1080p: 1,2,3,6,12,25,50,100 fps
White Balance Preset
Indoor: 3200K
Outdoor: 5600K ±7 steps
Color Temperature Set Range: 2300-15,000K
Lens
Zoom Ratio Optical: 12x
Clear Image Zoom: 18x (4K) / 24x (HD)
Digital Extender: 48x (HD)
Lens Wide Angle 29mm (35mm equivalent)
Recording
Video Format XAVC QFHD: MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD: MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 (CBKZ-SLMP required): MPEG-2 422P at HL 4:2:2 Long profile
MPEG HD420 (CBKZ-SLMP required): MPEG-2 MP at HL 4:2:0 Long profile
MPEG HD Proxy (CBKZ-SLMP required): MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD: MPEG-4 AVC/H.264 AVCHD 2.0 format-compatible
Audio Format XAVC QFHD: Linear PCM 2-Ch, 24-bit, 48 kHz
XAVC HD: Linear PCM 2-Ch, 24-bit, 48 kHz
XAVC Proxy: AAC-LC 2-Ch¿16-bit, 48 kHz
MPEG HD422 (CBKZ-SLMP required): Linear PCM 2-Ch, 24-bit, 48 kHz
MPEG HD420 (CBKZ-SLMP required): Linear PCM 2-Ch, 16-bit, 48 kHz
MPEG HD Proxy (CBKZ-SLMP required): AAC-LC 2-Ch, 16-bit, 48 kHz
AVCHD: Linear PCM 2-ch, 16-bit, 48 kHz / Dolby Digital 2-Ch, 16-bit, 48 kHz
Input/Output
Audio Input 2 x 3-pin XLRF, line/mic/mic +48 V selectable
Audio Output Integrated multi/micro-USB jack
DC Input DC jack
HDMI Output 1 x Type A
Headphone Output 1 x Stereo 3.5 mm mini-jack
Remote Integrated multi/micro-USB jack
Stereo mini-jack (2.5 mm F)
SDI Input 1 x BNC: 3G/HD/SD
SMPTE 424M/292M/259M standards
Speaker Output Monaural
USB 1 x Multi/micro-USB
Video Output 1 x Multi/micro-USB
1 x Composite, 1.0 Vpp, 75 Ohms
Wi-Fi
Frequency Bands 2.4, 5 GHz
Media Specifications
Media Type 1 x SD/SDHC/SDXC & Memory Stick PRO Duo
1 x SD/SDHC/SDXC
Monitoring
LCD Monitor 3.5" (8.9 cm), 1.56 M dots
Viewfinder 0.39" (1 cm), 2.36 M dots, OLED
Power
Power Consumption (Average) 6.5 W (recording with EVF with XAVC QFHD 2160/30p 60 Mbps)
6.9 W (recording with LCD and XAVC QFHD 2160/30p 60 Mbps)
Power Requirements DC In: 8.4 V
Battery: 7.4 V
General
Battery Operating Time Recording (approximate): 140 minutes with NP-FV70A battery (with LCD, XAVC QFHD 2160/30p, 60 Mbps)
Playback (approximate): 265 minutes with NP-FV70A battery (with LCD, XAVC QFHD 2160/30p, 60 Mbps)
Built-In Microphone Omnidirectional stereo electret condenser microphone
Storage Temperature -4 to 40°F (-20 to 60°C)
Dimensions (W x H x D) 5.1 x 7.1 x 11.3" (130 x 181.5 x 287 mm)
Weight 2.2 lb (1020 g)
1x Camcorder PXW-Z90V 4K HDR
1x XLR Handle
1x Lens Hood
1x Lens Cap
1x Large Eyecup
1x Accessory Shoe Kit
1x USB Cable
1x Sony NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh)
1x Sony AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries
1x Power Cord
1x RMT-845 Wireless Remote
1x CR2025 Lithium Battery for Remote
