EW-DX SKM Q1-9

Name: EW-DX SKM Q1-9
Brand: Sennheiser
SKU: EW-DX SKM Q1-9
Price: 806948 NGN
Availability: OutOfStock

Sennheiser

EAN: 4044155261042

Wireless transmitter without microphone capsule (Q1-9: 470 to 550 MHz) 509426

go to the technical sheet

₦ 806,948.00

₦ 750,649.00 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Sennheiser Digital Wireless Handheld Transmitter with No Mic Capsule (Q1-9: 470 to 550 MHz) - 509426

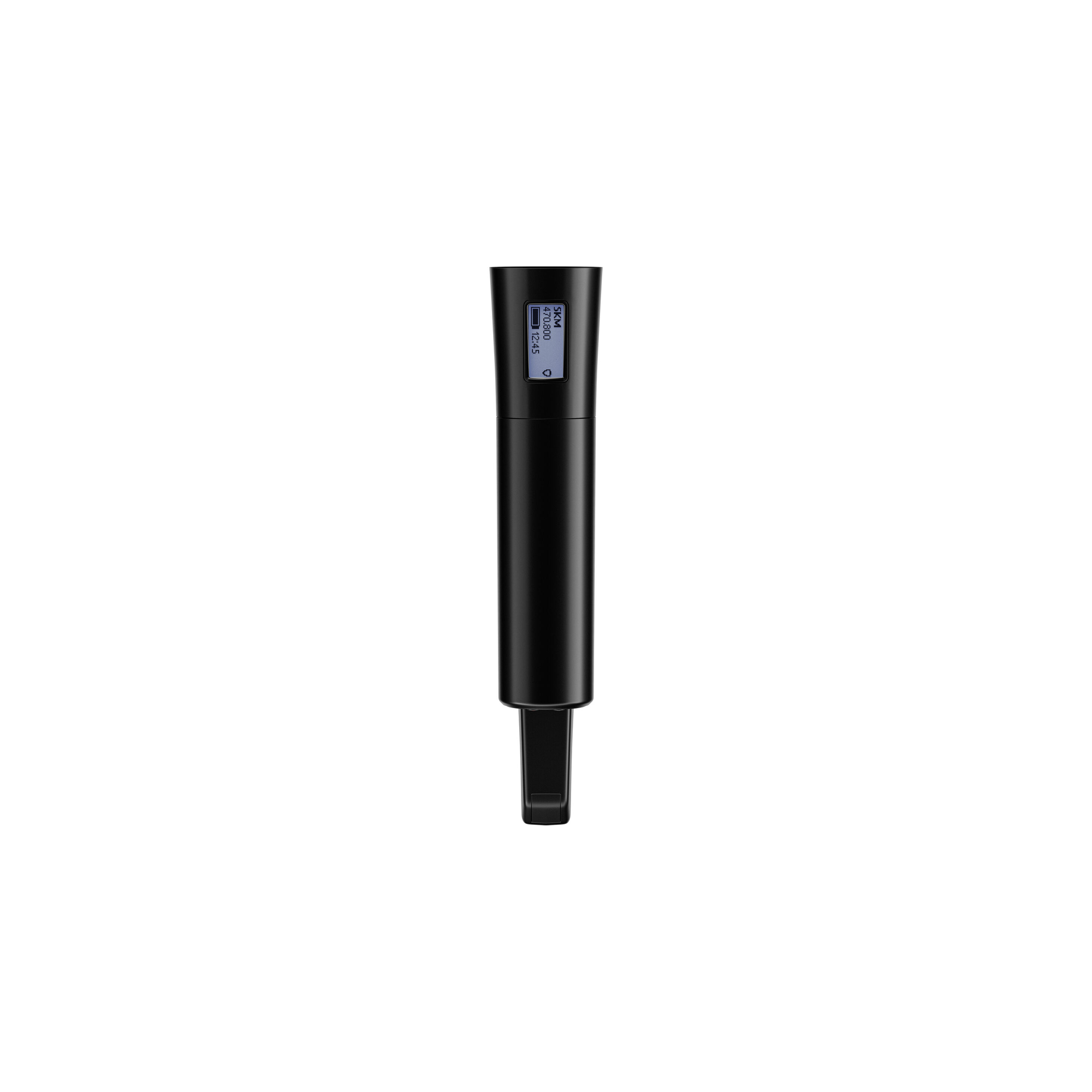

The Sennheiser EW-DX SKM is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers.
Well suited for a wide range of professional performance and presentation applications, the transmitter is lightweight and comfortable for performers and presenters to hold.
Its rugged, all-metal housing is built to withstand daily use on stage.
The transmitter is offered without a mic capsule included, so you can choose the one that best fits your application.

- For EW-DX Digital Wireless Receivers
- Interchangeable Mic Capsule Design
- 134 dB of Dynamic Range, 24-Bit Audio
- 3200 Frequencies on Equidistant Grid
- e-Ink Display
- Durable Metal Housing
- Set Up/Operate from Receiver or Phone
- In-Device Charging
- 8-Hour AA /12-Hour Rechargeable Battery

Compatible Microphone Capsules
The EW-DX SKM offers an interchangeable capsule design that allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to cardioid to narrow supercardioid.
Capsules include the MMD 835, MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, MM 445, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.

RF Frequency Band: Q1-9: 470 to 550 MHz
RF Bandwidth: 80 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1'' / 100 m (Line of Sight)
Built-In Recorder: No
Mobile App Compatible:
Yes: Android & iOS
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth Operating Distance: 120'' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Encryption: AES 256

Transmitter
Transmitter Type: Handheld
RF Output Power:
- 10 mW (ERP)
- 10 mW (EIRP)
Audio I/O: No
Included Cable Connector: No
Muting: No
Audio Input Level: 2 to 4.35 V
Auto-Level Control: No
Frequency Response: 20 Hz to 20 kHz -3 dB
Sync Method: Bluetooth
Antenna: 1 x Internal (Handheld)
Power Requirements: Battery
Battery Type:
- 1 x Sennheiser Battery Pack (Included)
- 2 x AA (Not Included)
Approx. Battery Life:
- 12 Hours (Sennheiser Battery Pack)
- 8 Hours (Alkaline)
Display & Indicators: 1 x Backlit LCD (Battery Status, Mute)
Housing: Metal
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 2 x 10.6" / 50 x 268 mm
Weight: 10.7 oz / 304 g

Sennheiser EW-DX SKM Digital Wireless Handheld Transmitter with No Mic Capsule (Q1-9: 470 to 550 MHz)
Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
2x AA Battery
