UWP-D27K33

Sony

4548736131859
Dual Channel Kit 1x URX-P41D/K33 and 2x UTX-B40/K33 Transmitters 566-630MHz
go to the technical sheet
₦ 2,432,885.00

₦ 2,263,149.00 VAT excl.

Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

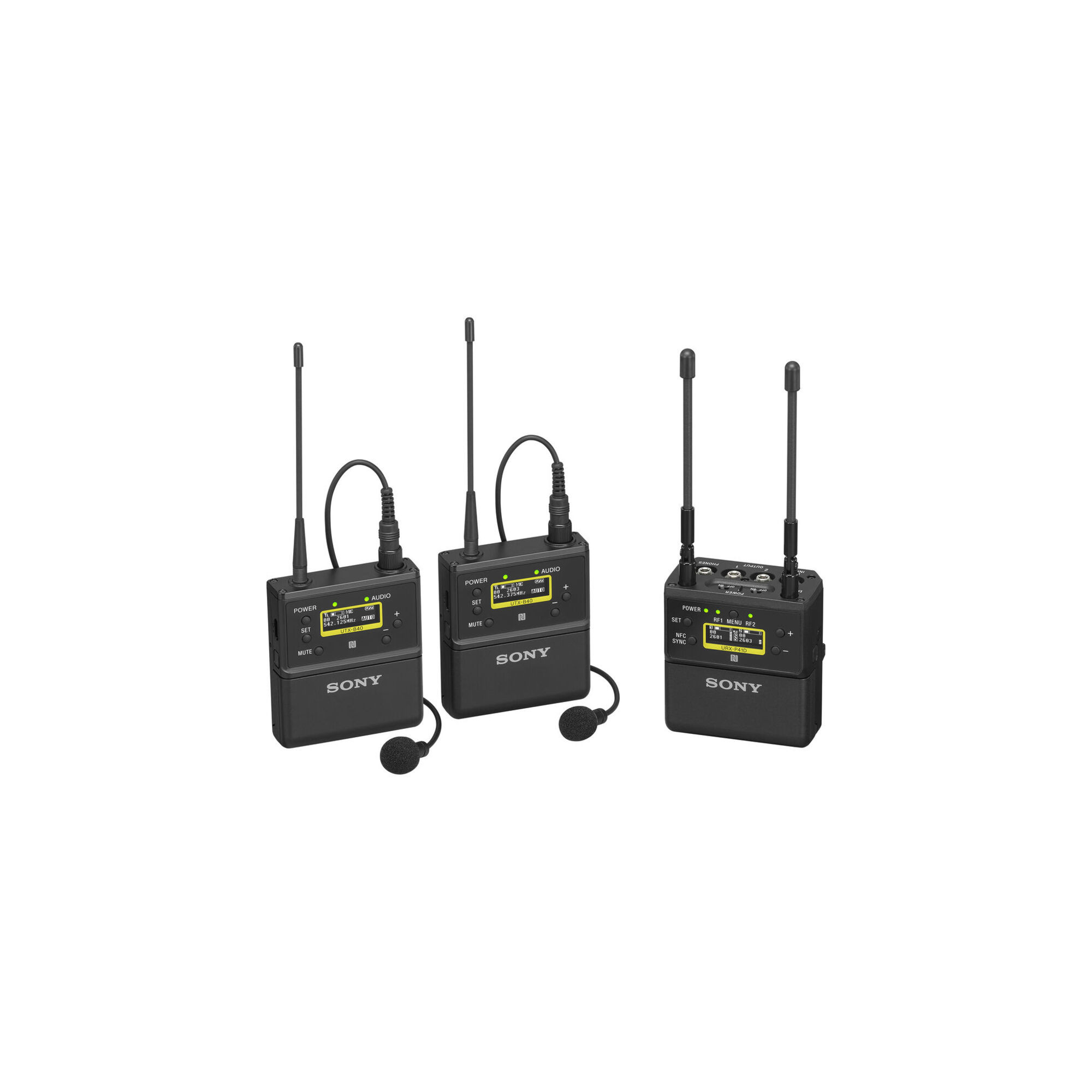

Sony Dual Channel Kit 1x URX-P41D/K33 and 2x UTX-B40/K33 Transmitters 566-630MHz

Built with simplicity in mind for cameramen, videographers, vloggers and journalists working in the field without a crew, Sony's fourth-generation UWP-D27 is a reliable on-camera 2-channel wireless lavalier microphone system that delivers uncompromising audio quality, while being easy to use and quick to set up without complex menus. This compact system is packed with professional features, including one-button NFC auto channel setting and auto gain functions that handle time-consuming frequency setting and mic level adjustments for you, so you're ready to shoot two people talking directly to your camera in seconds. It's ideal for documentaries, wedding videos, YouTube content, corporate commercials, hands-free interviews and more.
The UWP-D27 features digital signal processing for pristine audio and analogue UHF transmission with true diversity reception for reliable performance, even in challenging shooting conditions. Rugged and lightweight, this system includes two bodypack transmitters, each with an ECM-V1BMP omnidirectional lavalier microphone. It also comes with a low-profile camera-mount receiver designed to fit neatly on compact camcorders and still cameras. You can use the SMAD-P5 digital hot shoe adapter (available separately) to get a direct, cable-free digital audio connection. The UWP-D27 is backwards compatible with Sony WL-800, UWP series and UWP-D Generation 3 transmitters.

Professional features to speed up your workflow
NFC Auto Channel Setting Mode

Press and hold the NFC/Sync button and the dual receivers scan for the two cleanest RF channels (one for each transmitter). Simply hold the transmitters close to the receiver, it automatically syncs and you're good to go!
Unlike purely digital systems, the UWP-D27 lets you send a single microphone to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto Gain Mode to Prevent Microphone Distortion

Auto Gain Mode saves you time and hassle setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, which is great when the volume of the presenter's voice is unknown.
The +15 dB Gain Volume-Boost mode on the transmitters increases the microphone gain by 15 dB to compensate for situations where the microphone is not close enough to the presenter's mouth and the audio level is insufficient. Manual input level setting is also available.

High Gain Mode for DSLR and Mirrorless Cameras

High-Gain mode increases the receiver's output level, allowing you to reduce the input gain of your DSLR/mirrorless camera for an even quieter signal.
External Microphone Input for Additional Wired Microphone
There is an external microphone input connector on the receiver to connect an additional wired microphone. Allows up to four channels of audio recording when using a stereo microphone.

Built-in 4-channel mixer

The receiver features a 4-channel mixer that allows you to control the microphone levels (up to four) and assign output 1 or/and 2 as needed.
High-visibility OLED display for indoor/outdoor use
Both the transmitter and receiver feature an easy-to-read OLED display. The display's fast response allows you to see operating conditions clearly and accurately in real time, even in bright sunlight.

Channel memory function for quick switching between 4 transmitters

The channel memory function allows you to quickly switch between the lavalier microphone and the guest interview microphone with the push of a button.

Sony UWPD27/14 Specifications

System : Wireless Technology Analog UHF
Number of RF Channel Frequencies : 2772
Diversity : True Diversity
RF Frequency Band : 470.125 to 541.875 MHz
RF Bandwidth : 72 MHz
Frequency Step Size : 25 kHz
RF Channel Scanning : Auto-Scan
Max Operating Range : 330'' / 100.6 m
Max Transmitters per Band : 16
Built-In Recorder : No
Latency : 0.24 to 0.35 ms
Encryption : None
Modulation : FM
SNR : 96 dB
THD : <0.9 %

Receiver
Receiver Type : Camera-Mount
Mounting Options : Belt Clip, Shoe-Mount (with Included Hardware)
Antenna : 2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels : 2
Audio I/O
° 2 x 1/8" / 3.5 mm TRS Female Balanced Output (Lockable)
° 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input (Lockable)
° 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Gain Range : -12 to +12 dB (3 dB Steps)
Audio Output Level : -60 to -20 dBV
Frequency Response : 23 Hz to 18 kHz
USB/Lightning Connectivity : 1 x USB Type-C Female (Bus Power)
Power Requirements : Battery, Bus Power (USB)
Battery Type : 2 x AA (Not Included)
Approx. Battery Life : 4.5 Hours (Alkaline)
DC Input Power : 5 VDC (USB Bus Power)
Display & Indicators : OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Peak, RF Level)
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions : 2.5 x 2.8 x 1.4" / 63 x 70 x 35 mm (without Antennas)
Weight : 5.6 oz / 159 g (without Batteries)

Transmitter
Transmitter Type : Bodypack
RF Output Power : 5 / 30 mW
Audio I/O : 1 x 1/8" / 3.5 mm TRS Male Unbalanced Input (Lockable)
Muting : Mute Switch
Audio Input Level : +60 dBV (Mic Level) / +4 dBu (Line Level)
Auto-Level Control : Yes
Gain Range : 0 to 21 dB (3 dB Steps)
Frequency Response : 23 Hz to 18 kHz
Sync Method : NFC
Antenna : 1 x 1/4 Wave Internal, Fixed (Beltpack)
Power Requirements : Battery, Bus Power (USB)
Battery Type : 2 x AA (Not Included)
Approx. Battery Life : 8 Hours (Alkaline)
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power)
Display & Indicators : 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing : Metal
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Dimensions : 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas)
Weight : 5.3 oz / 149 g (without Batteries)

Microphone
Microphone Type : Lavalier
Sound Field : Mono
Capsule : Electret Condenser
Polar Pattern : Omnidirectional
Frequency Range : 40 Hz to 20 kHz
Sensitivity : -43 dB at 1 kHz
Output Connectors : 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length : 3.9'' / 1.2 m
Operating Temperature : 32 to 122°F / 0 to 50°C
Storage Temperature : -4 to 131°F / -20 to 55°C
Length : 0.8" / 19.5 mm
Diameter : 0.3" / 6.8 mm
Weight : 0.6 oz / 16.2 g

1x URX-P41D Dual-Channel Camera-Mount Wireless Receiver
2x UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
2x ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
2x Mic Clips
2x Windscreens
3x Belt Clips
1x Shoemount Adapter for Receiver
2x XLR to Locking 3.5mm Output Cables
1x 3.5mm to Locking 3.5mm Cable
