MARS 4K

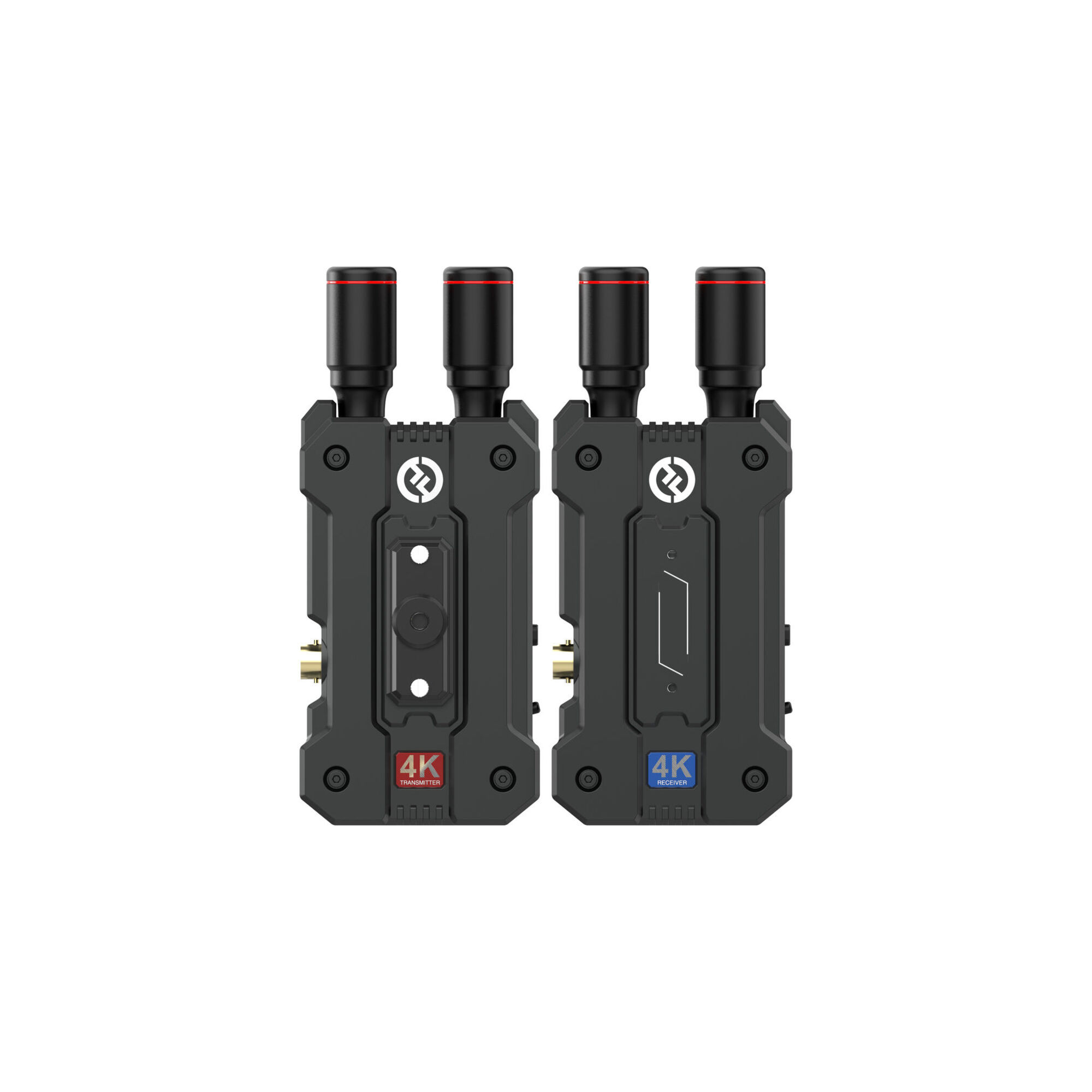

Hollyland 450ft (150m) Wireless 4K UHD Video Transmission - HL-MARS 4K

° Transmitter and Receiver Set
° Transmit up to UHD 4K30 video up to 150 meters
° SDI and HDMI inputs and outputs
° L-Series Battery/USB Type-C/DC Power
° Smart Channel Scan, Touchscreen LCD
° 0.06s Low Latency, 12Mbps Data Rate
° L-Series, USB Type-C Power Options
° Transmits up to 4 Apps as a Monitor

Add up to 4K30 wireless video transmission to your gimbal, mirrorless or DSLR camera rig using the lightweight Mars 4K Wireless Video Transmission System from Hollyland.

The transmitter provides HDMI and SDI inputs and the receiver offers SDI and HDMI outputs.
It features an extremely low latency of 0.06 seconds with line-of-sight transmission up to 450 feet ( 137.16 meters ) to the receiver.

Using the Hollyview iOS or Android app, you can monitor your video feed in real time via a Wi-Fi connection to your tablet or smartphone.

The units also feature a built-in frequency scanner to select the clearest frequency for transmission. The Mars 4K transmitter and receiver are compact in size, feature a bright touchscreen LCD for setup, and are constructed with a corrosion-resistant housing.

Each unit can be powered using a USB Type-C source, the included locking DC power adapter, or using a separately available L-series battery using an optional battery plate.

UHD 4K Video Transmission
The Mars 4K supports UHD 4K30 video transmission for the most demanding videographers seeking high-resolution production capabilities. Mars 4K also supports FHD and HD formats with variable frame rates such as 24, 30 and 60p.
Long Range and Low Latency
Mars 4K achieves a long view range of 450' and an ultra-low latency of 0.06 seconds. Its updated dual-core codec chip is capable of achieving a data transfer rate of 12Mb/s.
HDMI and SDI Interfaces
Mars 4K supports HDMI and SDI input and output for extended connectivity and compatibility. SDI ports provide greater frame rate flexibility for broadcast and production frame rate standards and compatibility across production and post-production.
Extremely Compact Unit
Mars 4K offers corrosion and wear resistance for increased durability. The shape of the design optimizes operational functionality for quick setups with oscillation-free antennas.
Intelligent Channel Scan
Channel assignment options allow interference-free transmission. Stable connection is possible automatically at startup. An intelligent channel scan helps determine which channels are busy and selectable.
Color Touchscreen LCD
The Mars 4K features a color touch LCD with an intuitive user interface design that allows for quick setup and status controls. Its gamepad-style button greatly enhances the operational setup experience.
Multiple Power Options
The Mars 4K supports multiple DC power options: 6 to 16V DC coaxial input, L/NP-F series batteries and USB Type-C charger.
App Monitoring
The Hollyview app for Android and iOS allows you to monitor your broadcast on your smartphone or tablet. It allows broadcasting to apps and receivers in the following configurations:
° 1-receiver transmitter + 2 apps
° 4-app transmitter
° 1-receiver and 2-app Mars M1 wireless transceiver monitor
