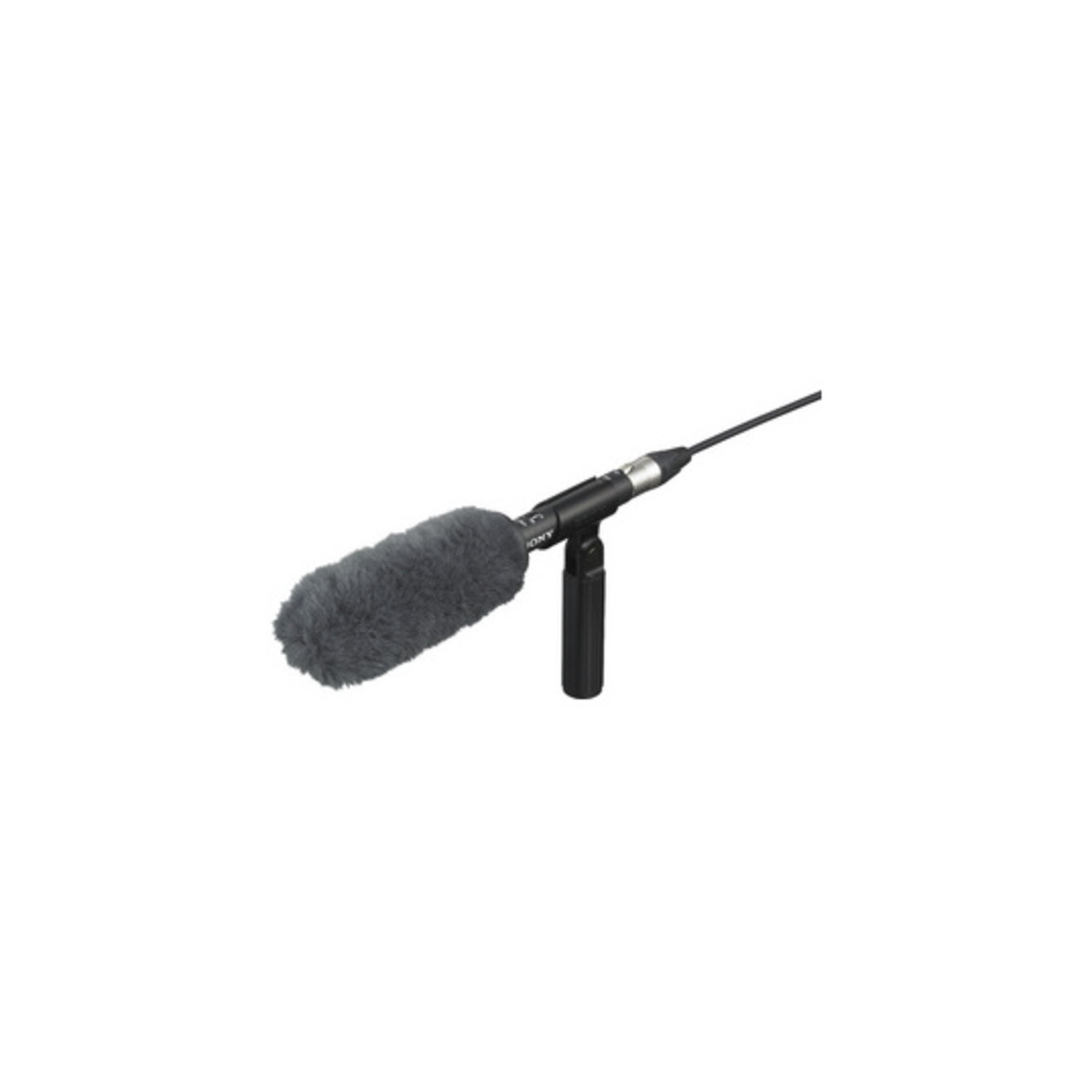

ECM-VG1
Sony
Compact and Extremely Lightweight Design with Metal Body
Designed as an extremely lightweight shotgun microphone, the ECM-VG1 maintains good balance even when mounted on compact camcorders.
Built-in Low-cut Filter
The built-in two-position (M, V) low-cut switch provides a simple method of reducing the effects of unwanted ambient noise.
External DC (40 to 52 V) Operation
The ECM-VG1 provides an electronically balanced output operation on 48 V standard external power.
The ECM-VG1 is supplied with an innovative windscreen that has an internal frame to rigidly fix the windscreen, creating a space between the microphone and the outside part of the windscreen that helps suppress strong wind noise. It also protects the ECM-VG1 from contact noise in harsh operational environments such as outdoor shooting.
XLR-5M to XLR-3F 50 - Adcom Cable
Group heading
Capsule Type: Electret condenser microphone
Directivity: Super cardioid
Frequency response: 40 Hz to 20 kHz
Sensitivity (at 1 kHz): -33dB ±3dB (0dB=1 V/Pa., at 1 kHz)
Output impedance (at 1 kHz): 100O±20%
Dynamic range: 107dB or more
Signal-to-noise ratio (IEC179 A-weighted, 1 kHz, 1Pa): 76dB or more
Inherent noise: 18dBSPL* or less
Wind noise: 45dBSPL* or less with windscreen
Induction noise from external magnetic field: 0dBSPL* or less
Maximum input sound pressure level: 125dBSPL* or more
Dimensions: diameter20 x 210 mm (diameter13/16 x 8 3/8 inches)
Mass: Approx. 66 g (2.3 oz)
Notes 0dBSPL=20µPa.
Supplied Accessories
° Windscreen
° Microphone holder
° Microphone spacer
° 2 x Stand adaptors
° Operating instruction
° Warranty booklet
