Livetrak L-20
Zoom
4515260019878
20-Input Digital Mixer & Multitrack Recorder
go to the technical sheet
₦ 1,676,031.00
₦ 1,559,099.00 VAT excl.

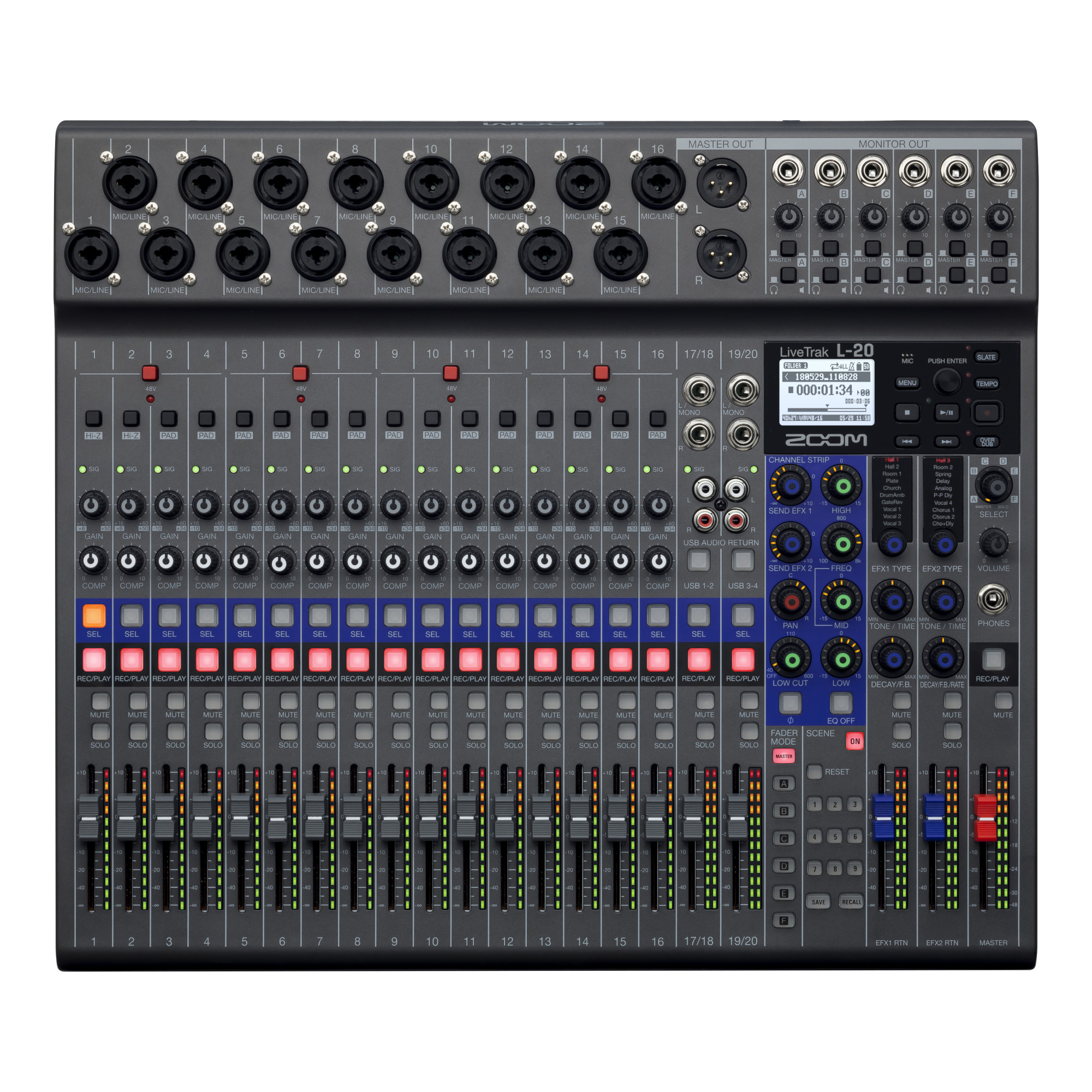

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.
The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.
Here's what comes included with the L-12:
AC adapter (AD-19)
USB 2.0 cable
Quick Guide
The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.
Here's what comes included with the L-12:
AC adapter (AD-19)
USB 2.0 cable
Quick Guide
SGH-6
₦ 230,371.00
VAT included
Available 2 unit in 4 Days
ZDM-1 Podcast Mic Pack
₦ 225,749.00
VAT included
Available 2 unit in 4 Days
BTA-1
₦ 90,783.00
VAT included
Available 2 unit in 4 Days
AD-19E
₦ 64,606.00
VAT included
Available 1 unit in 4 Days
RKL-12
₦ 233,973.00
VAT included
Available 1 unit in 4 Days
NTG-2
₦ 487,458.00
VAT included
Available 3 unit in 4 Days
AT-897
₦ 520,138.00
VAT included
Available in 11 days
REPORTER
₦ 378,345.00
VAT included
Available 1 unit in 4 Days
E845S
₦ 216,181.00
VAT included
Available in 11 days
SM58-LCE
₦ 274,016.00
VAT included
Available in 14 days
E945
₦ 470,795.00
VAT included
Available 1 unit in 4 Days
E865
₦ 565,664.00
VAT included
Available in 11 days
NTG-3 Black
₦ 1,390,135.00
VAT included
Available in 14 days
NTG-8
₦ 2,093,615.00
VAT included
Available 1 unit in 4 Days
NTG-4
₦ 557,763.00
VAT included
Available 1 unit in 4 Days
SM58SE
₦ 302,558.00
VAT included
Available in 14 days
KM185
₦ 3,161,251.00
VAT included
Available in 14 days
Procaster
₦ 437,631.00
VAT included
Available in 14 days
NTG-1
₦ 466,925.00
VAT included
Available 1 unit in 4 Days
AT875R
₦ 335,990.00
VAT included
Available 3 unit in 4 Days
E845
₦ 215,268.00
VAT included
Available 1 unit in 4 Days
NTG-3
₦ 1,390,135.00
VAT included
Available 3 unit in 4 Days
ECM-674
₦ 1,088,221.00
VAT included
Available 1 unit in 4 Days
NTG-4 PLUS
₦ 597,645.00
VAT included
Available in 14 days
Boompole
₦ 274,876.00
VAT included
Available 3 unit in 4 Days
Boompole Mini
₦ 231,446.00
VAT included
Available 2 unit in 4 Days
AT8202
₦ 124,161.00
VAT included
Available in 14 days
IE 4
₦ 244,508.00
VAT included
Available 1 unit in 4 Days
Zoom LIVETRAK L-20 specs
Number of Inputs Mono (Mic/Line): 16 x Combo XLR-1/4" / 6.35 mm
Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs)
Number of Outputs Master Out: 2 x XLR
Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/4" / 6.35 mm
Input Gain Pad Off: +16 to +60 dB
Pad On: -10 to +34 dB
Hi-Z ON: +6 to +50 dB
Input Impedance XLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z on)
Maximum Input Levels Mono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +14 dBu
Phantom Power 48 V
Maximum Output Levels Master Out: +14.5 dBu
Monitor A-F (TRS): +14.5 dBu
Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms
Output Impedances 100 Ohms
Buses Master: 1
Monitor: 6
Send EFX: 2
Channel Control Channel Strip
Comp: Yes, channels 1 to 16
Low Cut: 40 to 600 Hz, 12 dB/oct
EQ
High: 10 kHz, ±15 dB, shelving
Mid: 100 Hz to 8 kHz, ±15 dB, peaking
Low: 100 Hz, ±15 dB, shelving
Level Meters 12-segment
Effects 20 types
Recorder Maximum Simultaneous Recording Tracks:
22 at 44.1/48/96 kHz
Maximum Simultaneous Playback Tracks: 20
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo
Recording Media:
16 MB to 2 GB SD cards
4 to 32 GB SDHC cards
64 to 512 GB SDXC cards
Audio Interface 44.1 / 48 kHz Recording: 22 channels
Playback: 4 channels
Bit Depth: 24-bit
Interface: USB 2.0
Card Reader Mass Storage: SD, SDHC, SDXC
USB Host Class-compliant USB 2.0 high-speed
Sample Rate (Audio) 44.1, 48, 96 kHz
Frequency Characteristics 44.1 kHz: 20 Hz - 20 kHz (-1.0 dB)
96 kHz: 20 Hz - 40 kHz (-3.0 dB)
Equivalent Input Noise Actual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input
Display LCD with backlight (128×64 resolution)
Power Supply AD-19 AC Adapter: 12 VDC / 2 A
Power Consumption 24 W maximum
Dimensions (W x D x H) 17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm
Weight 8.2 lb / 3.7 kg
