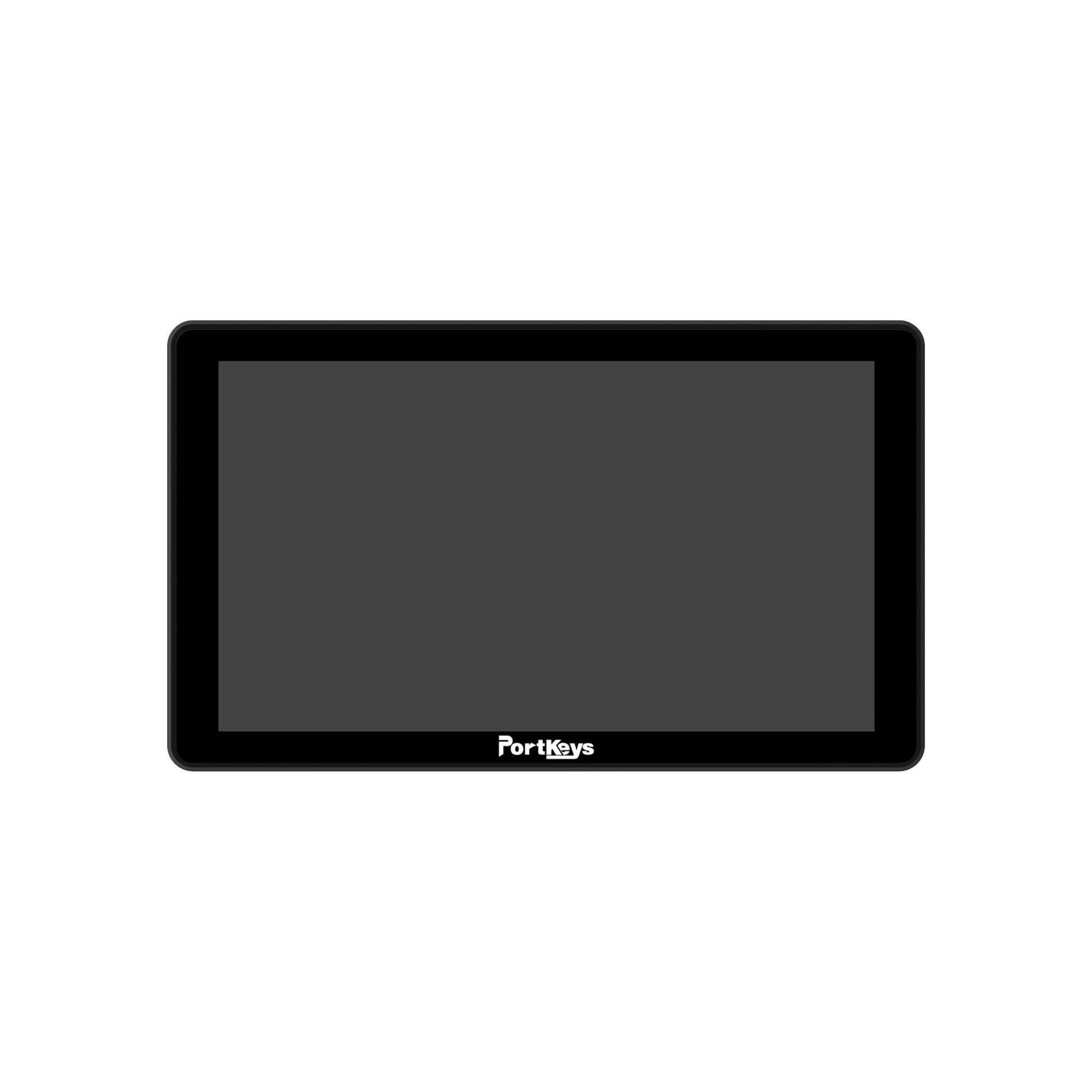

BM7IIDS

Wireless Camera Control Monitor 7" 2200nit Wide Color Gamut

Wireless Touch Control Sony Cameras
Built- in Wireless Module, Video Real-Time Eyes Focus

JPG Picture Custom Freeze Frame
After capturing an image, it can be compared with real-time vide by semi-transparent image superposition.
Note: Must be a 16:9 1920x1080 jpg image

Split Screen Monitor
See more video sources on one moitor, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/left horizontal and right vertical cropping of the same source.

Brightness and RGB Signal Detection Before/After Loading 3D Lut
Loading 3D LUTs for better picture quality and more intuitive monitoring

Anamoriphic Lens Calibration HDMI Output
Supported Ratio:
° 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
° User-defined adjustment raange: 0.25X-4.00X

Custom Rectangular Image Crop
Easily and clearly monitor the details of your images

Customized Peaking Range (Peaking Frame)
New Peaking, New Alorithm, More intuitive, More accurate

CNC Aluminum Alloy All-metal Shell
With Fast Heat Dissipation and High Durability

Wired Control Tilta Nucleus-N/M Motors
Compatible with Tilta Nucleus-N/M Motors and display the wireless follow the focus scale


7-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
Daylight viewable with a maximum brightness of 2,200nits.
Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3.
2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion.
Split screen monitoring, you can monitor two video inputs simultaneously.
Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
3D LUT monitoring and 3D LUT SDI output capabilities.
RED Approved: wireless camera control for the RED Komodo and V-RAPTOR.
Wireless camera control for most Sony and Blackmagic Design cameras.
Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
TILTA Nucleus N/M wireless follow focus wired control.
Built-in dual Sony NP-F style battery plates.
Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power (D-Tap cable included).
Rugged all-aluminum housing: only 460g/16.2oz.
Custom JPG picture custom freeze frame.
