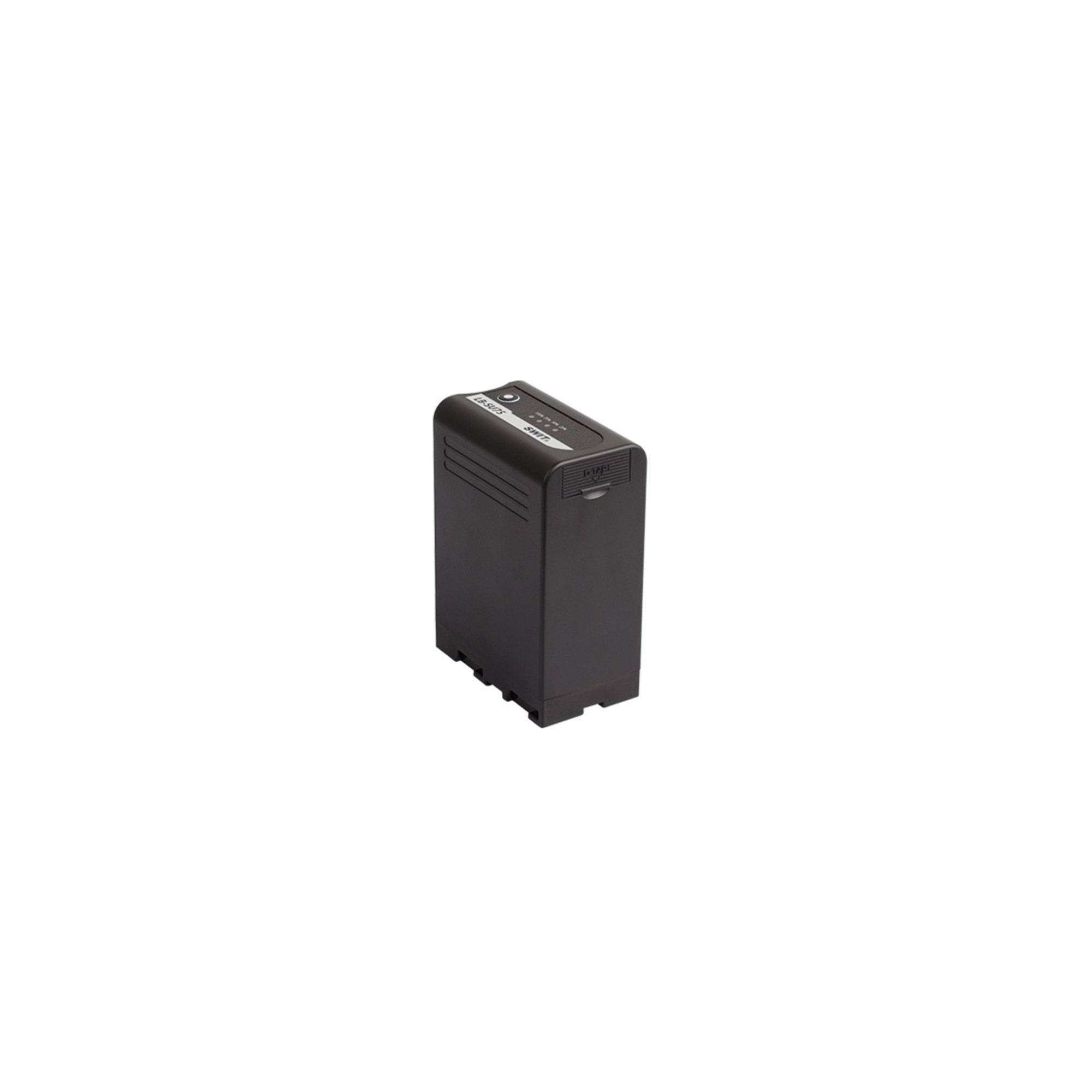

LB-SU75

Swit Battery 75Wh / 5.2Ah High Capacity With 14.4V nominal voltage, the LB-SU75 has 75Wh / 5.2Ah capacity, and can run approx. 2 hours 50 minutes on SONY PXW-Z280 camera.

Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of LB-SU75 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera. The Max power from D-tap is 50W, 4A.
The D-tap socket can also be used as charging input, by SWIT portable charger PC-U130B/B2.

Built-in 5V/2A USB Socket
Connect your USB devices like smart phone or pad to the USB socket of LB-SU75, press the power check button, and then the battery will start to output 5V/2A power to charge your devices.

LED Power Indicator
The LB-SU75 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The power check button can also be used to trigger USB charging.

Easy Charging
The LB-SU75 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable D-tap Charger for LB-SU75.
By S-3602U/LC-D421 will take about 3 hours and 30 minutes to charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 10 minutes to fully charge.


14.4V nominal voltage Li-ion battery

Compatible with SONY BP-U batteries

Display remaining power info in camera

75Wh / 5.2Ah capacity

Built-in 14.4V D-tap output / Charging input

Built-in 5V/2A USB output

4-level LED power indicator

Multiple circuit protections
