XF605 - Soft bag kit - Canon

Name: XF605 - Soft bag kit - Canon
Brand: Canon
SKU: XF605 - Soft bag kit
Price: 5663.16 EUR
Availability: InStock

Canon

format XF-HEVC 4K UHD/50P 4:2:2 10 bit - Kit with soft bag , card and battery

go to the technical sheet

-2.5%
Kit

Save 2.5%

€ 5.663,16

€ 5.268,05 VAT excl.

€ 5.808,36

Available

Not sure if this is the right product for you? Talk to a consultant

Canon

Designed to meet the new demands of the broadcast, production industries and meet the demand for 4K and 8K workflows
- Kit with soft bag , card and battery

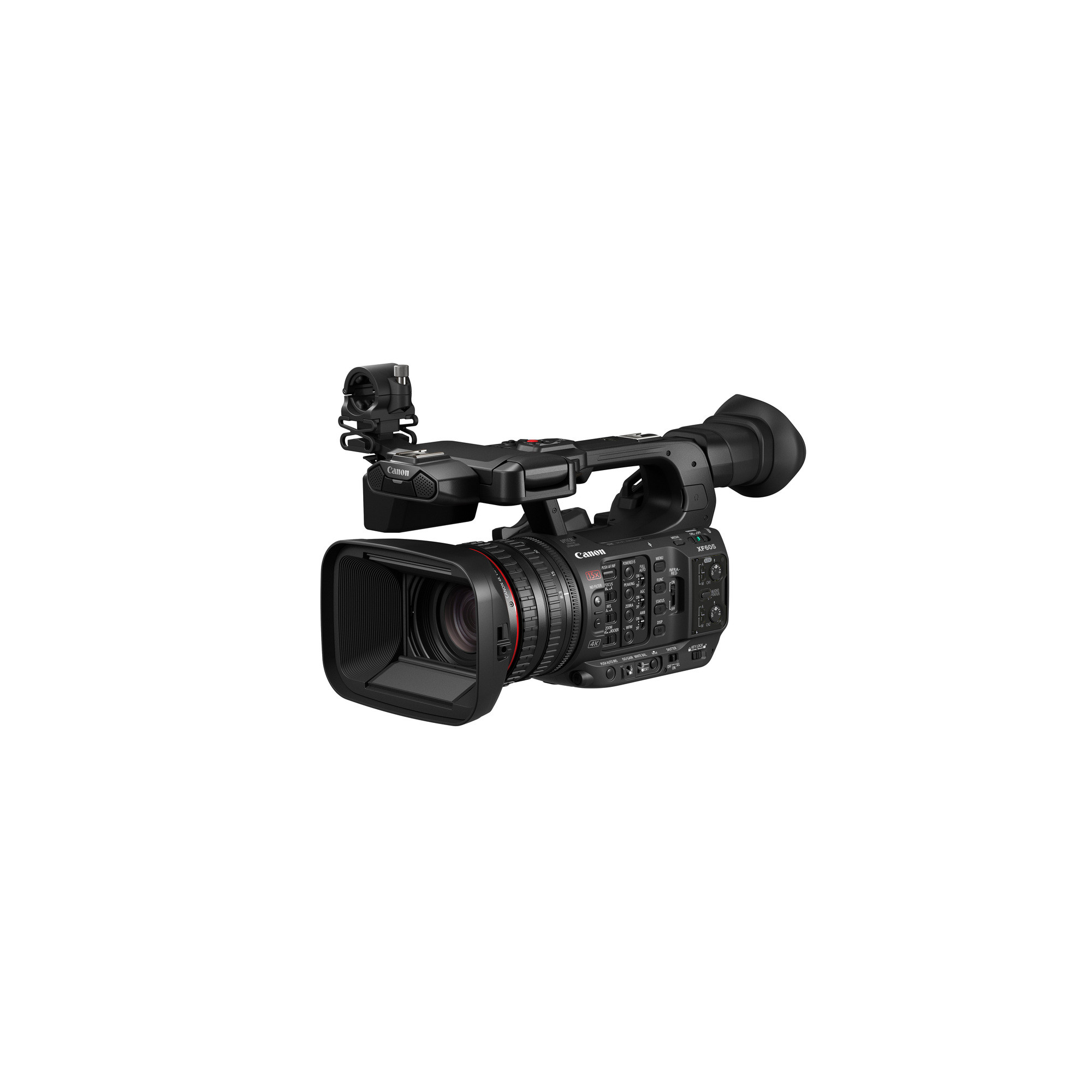

XF605 represents the next generation of the XF series. This feature-packed camcorder is capable of operating in 4K 60p / 50p at 4: 2: 2 10-bit and Full HD with a frame rate of up to 120p in a compact body. Equipped with a 1 "CMOS sensor and a DIGIC DV 7 processor, this new camcorder delivers the highest level performance required by today's professionals. The XF605 offers a number of customized image options that can be adjusted to suit different needs and ensure greater flexibility in post-production or in the field. These include the HDR format (HLG / PQ), Canon Log3 and the Look Files created by the user.
The XF605 uses the same 5-axis optical image stabilization system used in the XF and XA series to produce perfect video, even in dynamic shooting scenarios. There are four image stabilization options achieved by combining different settings in Standard, Dynamic and Powered IS mode, allowing users to select the most suitable and effective stabilization for their shooting conditions. The XF605 is also equipped with a powerful 4K L-series lens that provides 15x optical zoom and 30x advanced zoom in Full HD, ideal for shooting long distance subjects.
The XF605 utilizes the fast and accurate Dual Pixel CMOS AF autofocus system introducing Eye AF mode and the EOS iTR AF X Intelligent Face Tracking and Detection functionality for the first time in the XF series. Keeps the subject in focus even if it moves away from the camera. A new Direct Touch user interface allows you to quickly and intuitively select subjects to focus on, as well as control on-screen settings, menu navigation and playback.

1.0-Type CMOS Sensor & DIGIC DV7 Processor
4K UHD 60P/50P 4:2:2/10-bit recording (XF-AVC or MP4)
Canon Log 3, HDR (PQ/HLG)
High Frame Rate recording up to 120fps (FHD)
15x Optical Zoom L-Series lens (30x Advanced Zoom in FHD)
Enhanced Dual Pixel CMOS AF with Eye AF & EOS iTR AF X (Intelligent Head Tracking)
Dual SD card slots supporting simultaneous recording, multiple formats & Proxies
Professional connectivity Inc. 12G-SDI, HDMI, XLR, Wi-Fi, Ethernet, USB-C, and more
Multi-Function Accessory Shoe

Versatile and simple, for optimized workflows

XF605 is about 10% smaller and 600g lighter than XF705. Weighing in at 2kg, this portable camcorder is perfect for effortless shooting on the go. Designed for operators who work alone, the XF605 combines portability with a new multifunctional accessory shoe that has been designed to extend the camera's capabilities with innovative accessories. The camera also responds to the growing popularity of live streaming recorded in the last year with a number of features, including: IP streaming, remote control for multi-camera operations along with Canon's range of PTZ cameras and the addition of encoding. UVC which facilitates use in webcam mode via USB-C.
XF605 is a flexible camera that fits perfectly into existing workflows. Thanks to the dual SD card slot and multiple recording options, you can record different formats, resolutions, color samples and proxies simultaneously on separate cards. It is also possible to send the image to both 12G-SDI and HDMI connections simultaneously, which can be connected to any combination of monitors and recording and broadcast systems to support live and pre-recorded workflows. Ideal for shooting on the go, the XF605 is compatible with Canon's new Content Transfer Mobile (CTM) app which allows you to edit image metadata before and after capture and import video from the camera to your phone, allowing for direct transfer to the servers of the television station.

What's in the box?

XF605 BODY EU
FINDER CAP PACKING
MIC HOLDER UNIT
HOOD UNIT
SCREW BINDING HEAD, M4X20, BZ3
EYECUP ADAPTER
AC CABLE (EU)
Battery Pack BP-A30 (OTH)
Battery Charger CG-A20
Compact Power Adapter CA-CP200 L

- Kit with soft bag , card and battery

Sensor 1.0 Inch-type CMOS
Filter RGB Primary Colour Filter
Total pixels Approx. 13.4 MP
Effective pixels Approx. 8.29 MP (3840 x2160)
Image Processor DIGIC DV7
Gain Boost Function Yes, increases gain to 36dB,activated via user
assigned button
Sensitivity (PAL) f/13, 50.00P, 2000 lux, reflectance 89.9%
Minimum illumination (PAL) 50.00P/50.00i Approx. 2.5 lux
(1/50 second shutter speed)
25.00P Approx. 1.3 lux (1/25 second shutter speed)

Zoom ratio 15x optical, (30x Advanced Zoom Full HD)
Focal length
(35mm equivalent)
Approx. 25.5 to 382.5 mm Standard IS/IS Off
Minimum focus distance 10 mm at wide end, 60 cm across entire
zooming range
Max. Aperture f/2.8
Aperture blades 9 blades
Filter diameter 58mm
Image stabilization system Optical system (lens shift) + electronic stabilization
Dynamic, Standard, Powered, Off
ND filter 3 densities: turret switched, motor-driven.
ND 1/4, ND 1/16, and ND 1/64.
Zoom control Zoom rockers on body and handle;
Selectable manual zoom/focus ring on lens;
Wireless controller; Selectable High-Speed mode
available.
Zoom speed Variable or Constant speed Fast/Normal/Slow, 16
speed level settings
Focus control MANUAL: Lens ring and touchscreen point selection
(Focus Guide and Peaking assist functions), Focus
Preset.
AUTOFOCUS: Touchscreen AF point selection, Face
Detection and Tracking, Face Only AF.
(Continuous AF, AF-Boosted MF, AF Speed, AF
Response, AF Frame size)
Focus System Dual Pixel CMOS AF, Contrast AF, Eye AF,
EOS iTR AF X
Iris control Touchscreen, Auto, Lens ring
Digital zoom/Teleconverter 300x Digital Zoom, Digital Teleconverter (x1.5/x3/x6.
Not available when optical teleconverter used)

Type DIGIC DV7
Colour Sampling
XF-AVC: 4:2:2,
MP4: 4:2:2 or 4:2:0 H.265/4:2:0 H.264.
XF-AVC/MP4 Proxy files: 4:2:0
Bit depth XF-AVC/MP4 H.265: 10-bit.
MP4 H.264: 8-bit
XF-AVC/MP4 Proxy files: 8-bit
RECORDING
Video storage media SD/SDHC/SDXC card (2 card slots)
Type Class U3 V90 cards recommended
Recording time
(128GB Card, approx.)
XF-AVC: 410Mbps. 39 mins. 310Mbps, 51 mins.
260Mbps, 100 mins.
MP4/H.265: 225 Mbps, 71 mins. 170Mbps,94 mins. 135
Mbps,118 mins
MP4/H.264: 150 Mbps, 107 mins. 35 Mbps, 458 mins.
8Mbps, 2006 mins
Recording file system FAT32/exFAT
Internal recording format
(PAL)
XF-AVC (MXF) UHD: ALL-I/Long GOP. Full HD/Proxy
Files: Long GOP
MP4: H.265 UHD, Full HD

Simultaneous Recording Yes. Simultaneous recording, relay recording.
Different recording options possible on each
memory card
Recording frame rate (PAL) UHD
XF-AVC 422 10bit
3840 x 2160 (160 Mbps): 59.94P/ 29.97P/
23.98P/50.00P/ 25.00P
MP4 (HEVC/H.264) 422 10bit
3840 x 2160: 59.94P/ 29.97P/ 23.98P/50.00P/ 25.00P
Full HD, XF-AVC 422 10bit:1920 x 1080 (45 Mbps)
59.94P/ 59.94i / 29.97P/ 23.98P/50.00P/ 50.00i / 25.00P
120P, MP4 (HEVC/H.264) 422 10bit,1280 x 720
59.94P/ 29.97P/ 23.98P/50.00P/ 25.00P
External recording output,
12G-SDI/HDMI
3840 x 2160: 59.94p/50.00p/29.97p/25.00p/23.98p
1920 x 1080: 59.94p/50.00p/29.97p/25.00p/23.98p/
29.97PsF/25.00PsF 59.94i/50.00i
1280 x 720: 59.94p/50.00p
720 x 480: 59.94i
720 x 576: 50.00i
External monitoring Yes, 12G-SDI or HDMI . Simultaneous output available
High Frame Rate Yes, Up to 120P (FHD, 4:2:2/8-bit) including in 50.00Hz
mode. Simultaneous Audio Recording
Pre Record function Yes. 3 seconds
Special Recording Functions Frame Recording, Interval Recording
Still photos JPEG up to 3840x2160
(Still image resolution is dependent on the video
resolution)
Photo storage media SD Card (Slot B)
SHOOTING FUNCTIONS
EXPOSURE
Exposure metering Centre-weighted average or segment evaluative
(determined by shooting mode)
Fixed exposure (1/50 sec.)
Exposure compensation Highlight AE, Exposure lock, Auto backlight
compensation, Exposure compensation amount
shown as ±3 when locked or ±2 in AUTO
(±8 increments).
Exposure Lock Yes.
ISO Range/Setting ISO200 - ISO12,800. 1 Stop or 1/3 Stop increments
Gain Range Setting .-6.0dB - 21.0dB. Normal or Fine setting. Fine setting in
0.5dB steps.

SHUTTER SPEED
Control modes Auto, P, Tv, Manual
Shutter Angle Mode Yes, 360° to11.25°
Shutter speed (PAL) Up to 1/2000 Sec.
Slow Shutter (SLS, PAL) 50.00i/50.00P:1/4, 1/8, 1/12, 1/25 sec
25.00P: 1/3, 1/6, 1/12 sec
Clear (PAL) Yes,24.00Hz to 2003.17Hz
